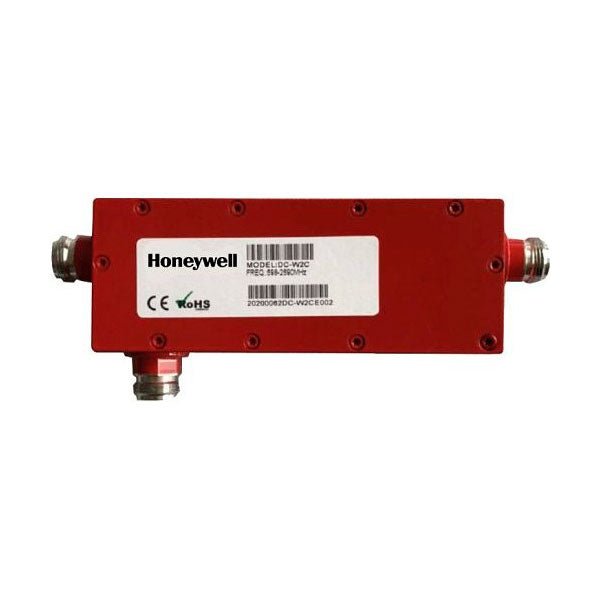

Fiplex by Honeywell BDA-DC20-W2 Passive DAS, RF Directional Coupler, 698-2690 Mhz, 20Db, 300W
The BDA-DC20-W2 is a 20 dB high power RF directional coupler for passive distributed antenna systems, covering 698-2690 MHz. Directional couplers in this Fiplex series provide unequal power distribution to the output ports with low VSWR on all ports. It has N female connectors.
Key Features
- 20 dB coupling value
- Frequency range 698-2690 MHz
- VSWR below 1.3:1 on all ports (50 ohm)
- Low insertion loss
- N female connectors
Specifications
| Frequency |
698-2690 MHz |
| Coupling |
20 dB +/-1.2 dB |
| Insertion loss |
<= 0.40 dB |
| Isolation |
>= 35 dB |
| VSWR |
<= 1.25 |
| Power rating |
300 W average per port |
| Impedance |
50 ohm |
| Connector |
N female |
| Operating temperature |
-25 to +75 C |
| Weight |
0.38 kg |
Compatible With
- Fiplex by Honeywell BDA and fiber DAS (ERCES) passive antenna networks
