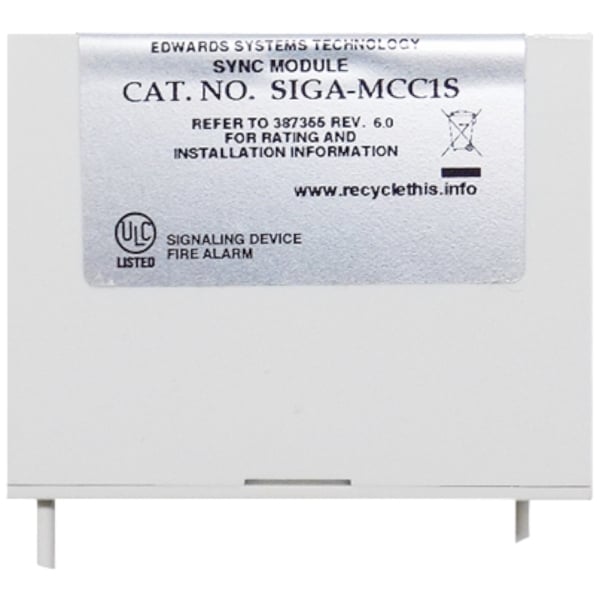

Edwards SIGA-MCC1S Synchronization Output Module (Plug-in UIO) – UL/ULC Listed
EDWARDS's 964 and 965 Series Speaker and Speaker-Strobes are designed for broadcasting high quality, integrated emergency voice communications, and alert or alarm tone signals. Use them in life safety applications, especially to notify the hearing impaired, where transitory people are expected such as hotels, malls, airports, hospitals and other public buildings. The 7.35 inch (187 mm) diameter steel baffle is finished with an attractive yet durable, high quality, baked white epoxy polyester powder coat. An optional red finish is available. The speakers mount to standard four-inch square electric box with extension ring or to EDWARDS's 960A Series flush boxes. EDWARDS flush boxes are made from satin coat steel and have flexible mounting straps for using with poured concrete forms. The mylar speaker cone with its sealed back construction provides extra durability and improved audibility.
Key Features
- UL 1971-listed synchronizing strobe Integrity strobes synchronize to the latest UL 1971 require-ments when used with a synchronization source
- Genesis-compatible All Genesis and Integrity strobes on the same circuit meet UL 1971 synchronization requirements when used with an external control module
- Approved for public and private mode applications UL 1971-listed as signaling devices for the hearing impaired and UL 1638-listed as protective visual signaling appliances
- High dBA Output High efficency, sealed mylar speaker cone produces a loud 90 dBA at 2 watts
- 25 and 70 volt RMS models All speakers include a DC Blocking Capacitor for audio circuit supervision
- Field changeable field markings Lens language or standard “FIRE” marking is easily changed with optional LKW and LKC series lens kits
- Easy Installation Flush mount to standard North American four-inch square box 2-1/8 inches (54 mm) deep with a 1-1/2 inch extension ring
Specifications
| UL 1638/ULC S526 Rated Strobe Output |
15cd 15/75cd 30cd 75cd 110cd |
| UL 1971 Rated Strobe Output - candela (cd) |
15cd 15cd 30cd (wall) 75cd (wall) 110cd (wall) (wall only) (wall or ceiling) 15cd (ceiling) 60cd (ceiling) 60cd (ceiling) |
| Input/Operating Volts |
Speaker: 25 Vrms (964 Series) or 70 Vrms (965 Series) - see ordering table Strobe: 16-33 Vdc Con- tinuous |
| Speaker Taps/Output (note 1) |
25V and 70 V RMS: 0.25 W = 81 dBA; 0.5 W = 84 dBA; 1.0 W = 87 dBA; 2.0 W = 90 dBA |
| Speaker Cone |
Speaker frequency response: 400 to 4,000 Hz; 4-inch (102mm) mylar cone, sealed back construction, rated for 8 watts, 8 ohm voice coil. |
| Synchronization Sources |
G1M-RM, SIGA-CC1S, SIGA-MCC1S, BPS6A, BPS10A |
| Strobe Lens Marking |
Supplied with LKC-1 “FIRE” red letters, horizontal both sides (Ceiling Mount) - see LKW and LKC series for wall mount style and optional markings |
| Flash Tube Enclosure |
Clear LEXAN with white marking sleeve |
| Baffle |
Steel, baked epoxy polyester powder-coat finish |
| Wire Connections |
Terminals: separate, polarized inputs for speaker & strobe, #12AWG (2.5mm²) maximum |
| INDOOR Operating Environment |
32-120° F (0-49° C) ambient temperature. 85% relative humidity @ 30° C. |
| Mounting - INDOOR |
Flush: 960A-4RF Round Flush Box Alternate Flush Mount: North-American 4 inch square box, 2-1/8” (54 mm) deep with a 1-1/2 inch extension ring |
