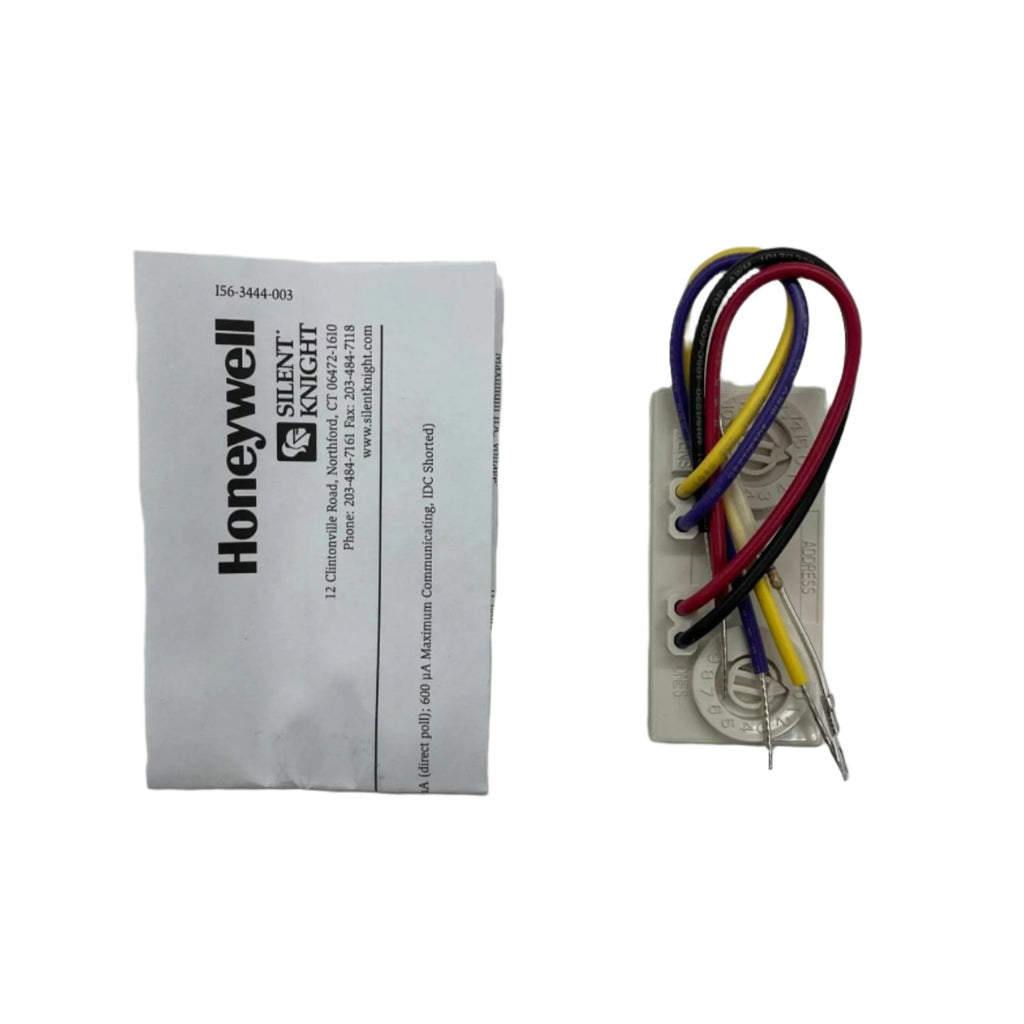

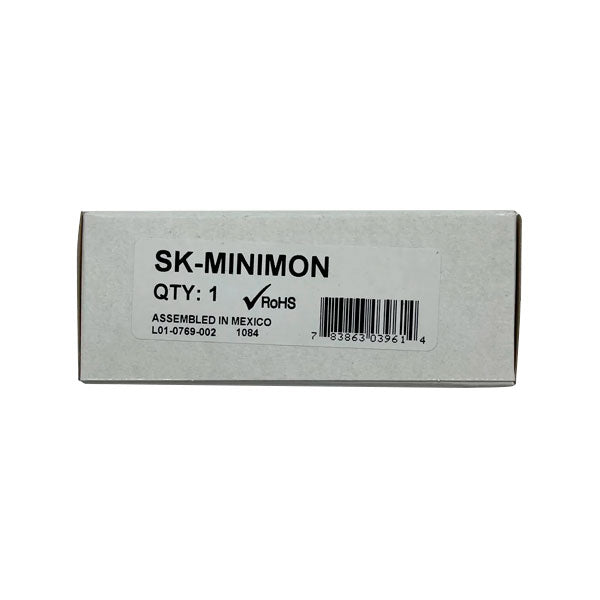

Silent Knight SK-MINIMON (also written SKMINIMON) is an addressable mini monitor module for use with Honeywell Silent Knight fire alarm control panels (FACPs). It replaces the IDP-MINIMON. The SK-MINIMON acts as an interface to contact devices, such as waterflow switches and pull stations, and supports Class B (Style B) supervised wiring to the load device.
It can also monitor conventional 4-wire smoke detectors for alarm and trouble conditions. Its small size and light weight let it mount in a single-gang junction box directly behind the monitored device, without rigid mounting requirements. Rotary address switches make setup fast.
Features
- Single contact monitor
- Class B (Style B) contact monitor wiring support
- Small and lightweight for flexible mounting
- Rotary address switches for fast installation
- Mounts in a single-gang junction box behind the monitored device
Typical uses
- Waterflow switches and other contact devices
- Manual pull stations
- Conventional 4-wire smoke detectors (alarm and trouble monitoring)
FAQ
What does the SK-MINIMON monitor?
Contact devices such as waterflow switches and pull stations, and conventional 4-wire smoke detectors for alarm and trouble conditions.
What wiring does it support?
Class B (Style B) supervised wiring to the load device.
Where does it mount?
In a single-gang junction box directly behind the monitored device.
Related
For a full-size addressable monitor, see the Silent Knight SK-MONITOR. To switch equipment from an addressable loop, see the SK-RELAY relay module.
