Silent Knight SK-MONITOR is an intelligent input monitor module for use with Honeywell Silent Knight Series fire alarm control panels (FACPs). It monitors a single normally-open contact and reports its status to the panel over the signaling line circuit.
The SK-MONITOR is intended for intelligent, two-wire systems, where the individual address of each module is selected with the built-in rotary switches. It supports Class A supervised or Class B supervised wiring to the load device, and conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.
Features
- Single contact monitor, panel controlled

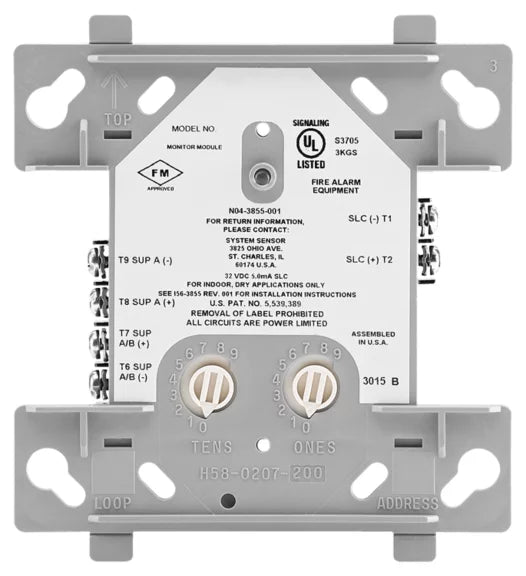

- Rotary address switches for fast addressing
- Support for Class A and Class B wiring, fully supervised
- Panel-controlled status LED that flashes green in the normal state and is solid red in alarm
- SEMS screws for easy wiring
Specifications
| Model |
SK-MONITOR |
| Operating voltage |
15 to 32 VDC |
| Current |
5.0 mA maximum with LED on; 375 µA operating with LED flashing |
| End-of-line resistor |
47K ohm |
| Dimensions |
4.5 in high x 4 in wide x 1.25 in deep (11.4 x 10.2 x 3 cm) |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity |
10% to 93%, non-condensing |
Installation
- The module mounts directly into a 4 in square electrical box with a minimum depth of 2-1/8 in.
- A surface-mount electrical box (System Sensor part SMB500) is available from Silent Knight.
- Confirm that your Silent Knight panel supports this module before ordering.
Related models
Specifications are taken from the Silent Knight SK-MONITOR data sheet. Manufacturer specifications are subject to change without notice.
