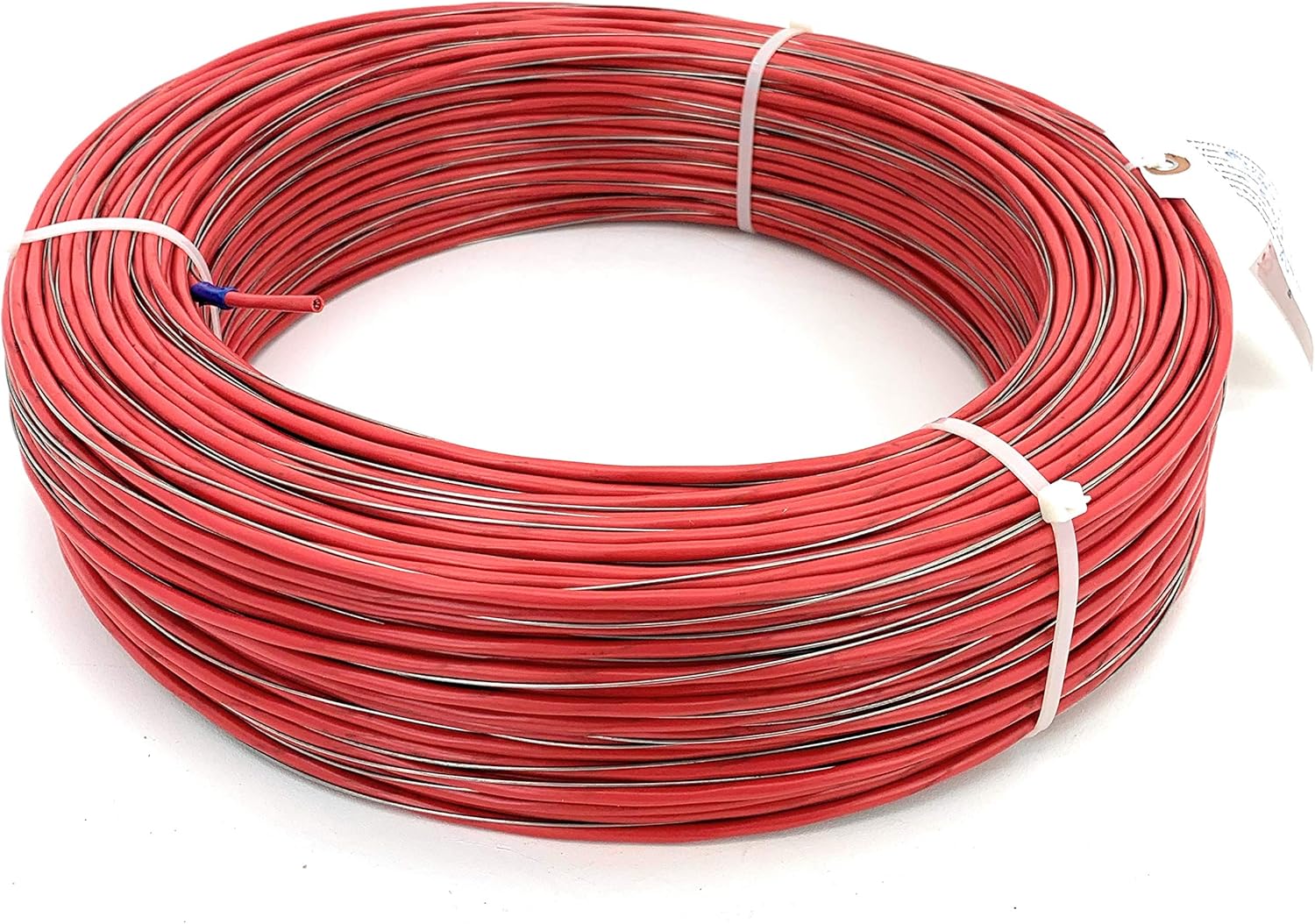

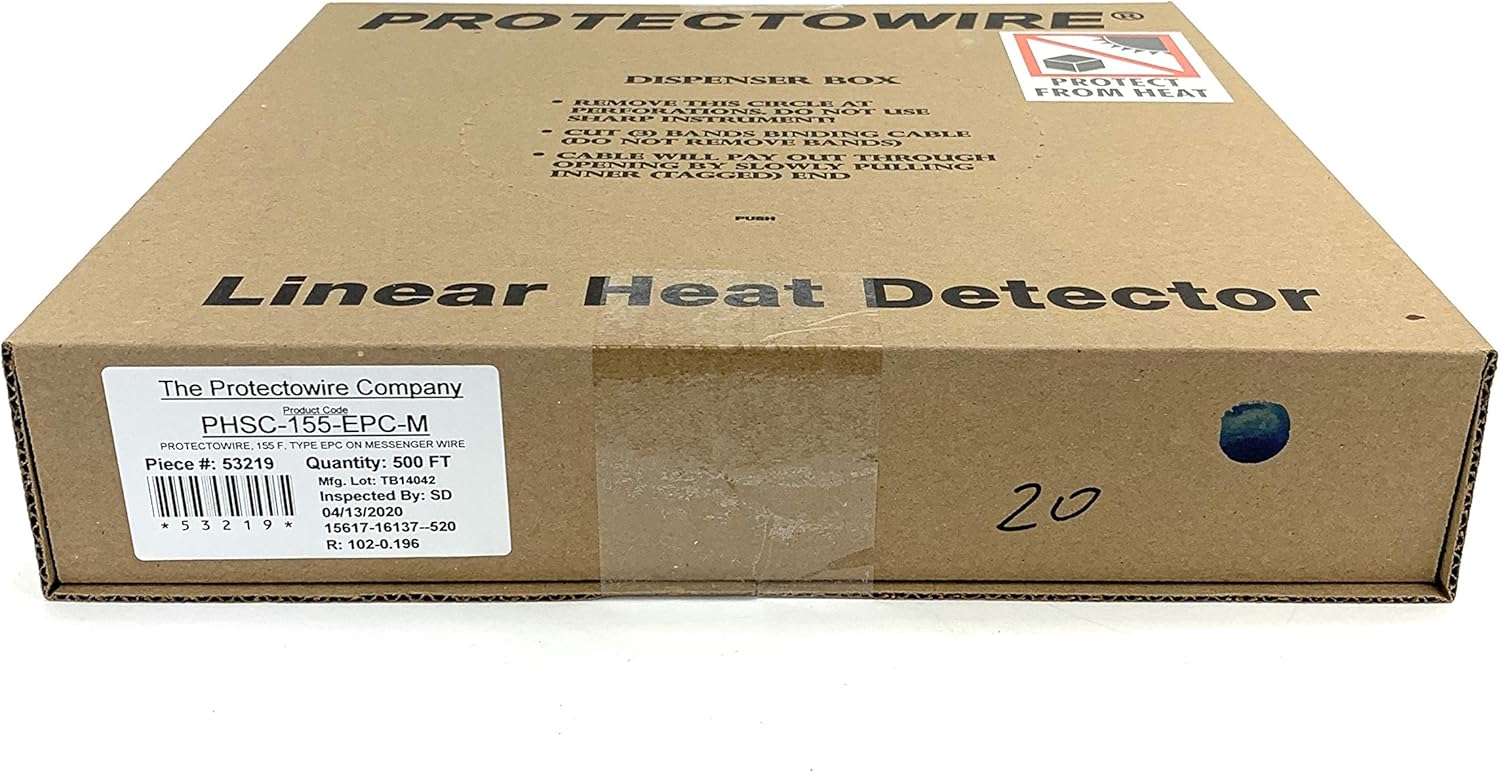

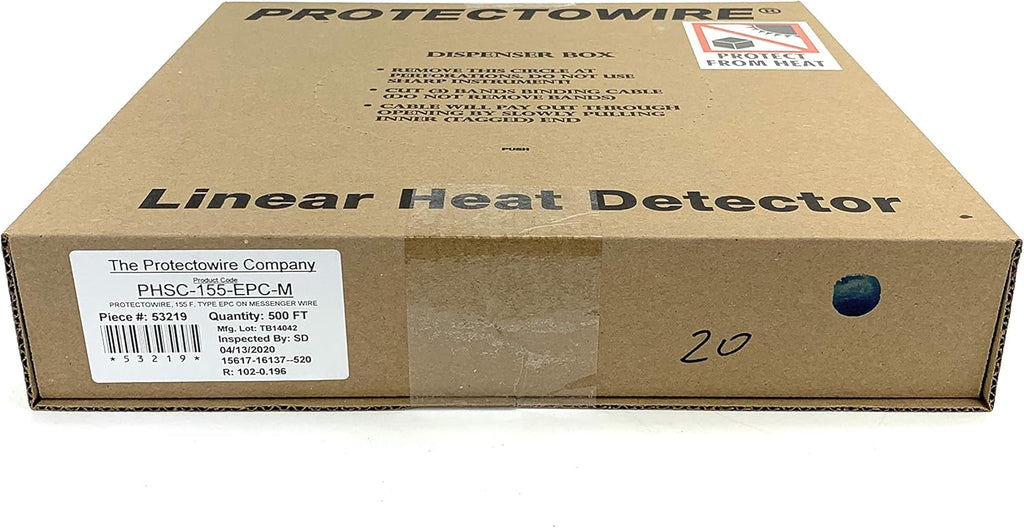

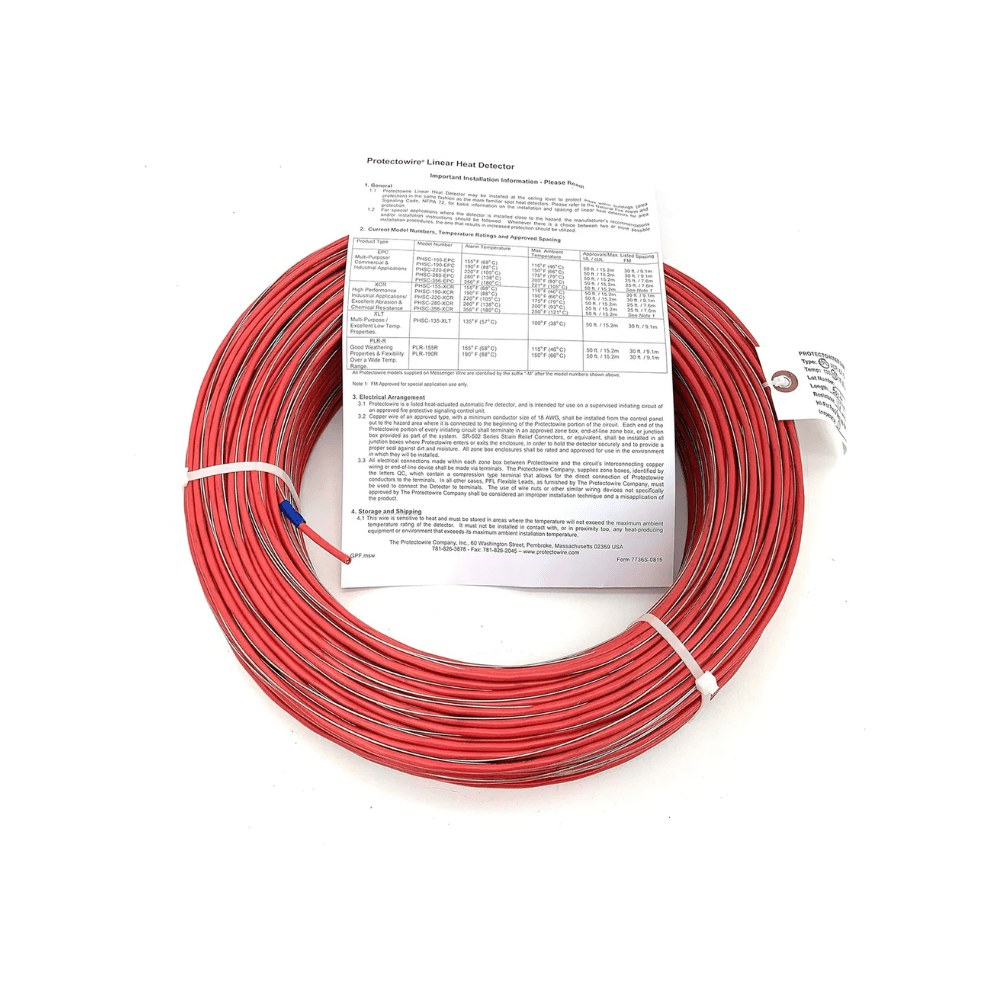

Protectowire PHSC-155-EPC-M — 155 °F (68 °C) linear heat detector, EPC vinyl jacket, supplied on stainless steel messenger wire.
The detector is identical to PHSC-155-EPC, alarming at the first point along its run to reach the rated temperature. Protectowire defines -M as the messenger wire configuration: stainless steel support wire wound around the detector at about one turn per foot. It is a carrier wire, not a sensing element, for open areas with no mounting surface.
- Fixed alarm temperature 155 °F (68 °C); maximum ambient 115 °F (46 °C)
- Maximum certified spacing 50 ft. (15.2 m) UL and cUL, 30 ft. (9.1 m) FM
- In open area layouts the recommended UL 521 maximum ambient is 100 °F (38 °C)
- Maximum 30 VAC, 42 VDC; resistance 0.185 ohms/ft. (0.607 ohms/m)
- Turnbuckles and eyebolts at each end of a run to tension it
- Maximum 250 ft. (76 m) between turnbuckles, with intermediate fasteners every 15 to 50 ft., closer outdoors for snow, ice and wind
PHSC-155-EPC is the same detector without messenger wire, carrying every figure above unchanged. Messenger wire is a special order available on any model.
Documents
FAQ
What does the -M suffix mean?
It means the detector is supplied on messenger wire: high tensile stainless steel wire wound around the detector at about one turn per foot. It is a support wire for areas without mounting surfaces.
How is messenger wire installed?
Use turnbuckles and eyebolts at each end of a run to tension the wire. Keep the detector to 250 ft (76 m) or less between turnbuckles, with intermediate fasteners every 15 to 50 ft.
How do I splice the detector?
Use only PWSK-3 or PWSC splicing connectors; Protectowire says these are the only approved splicing methods.
Can it share a circuit with other initiating devices?
Yes. Protectowire is compatible with manual pull stations, heat detectors and smoke detectors on the same initiating circuit.
