The CTIC Splicing Terminals are used when splicing CTI Detectors
Includes male and female connectors.

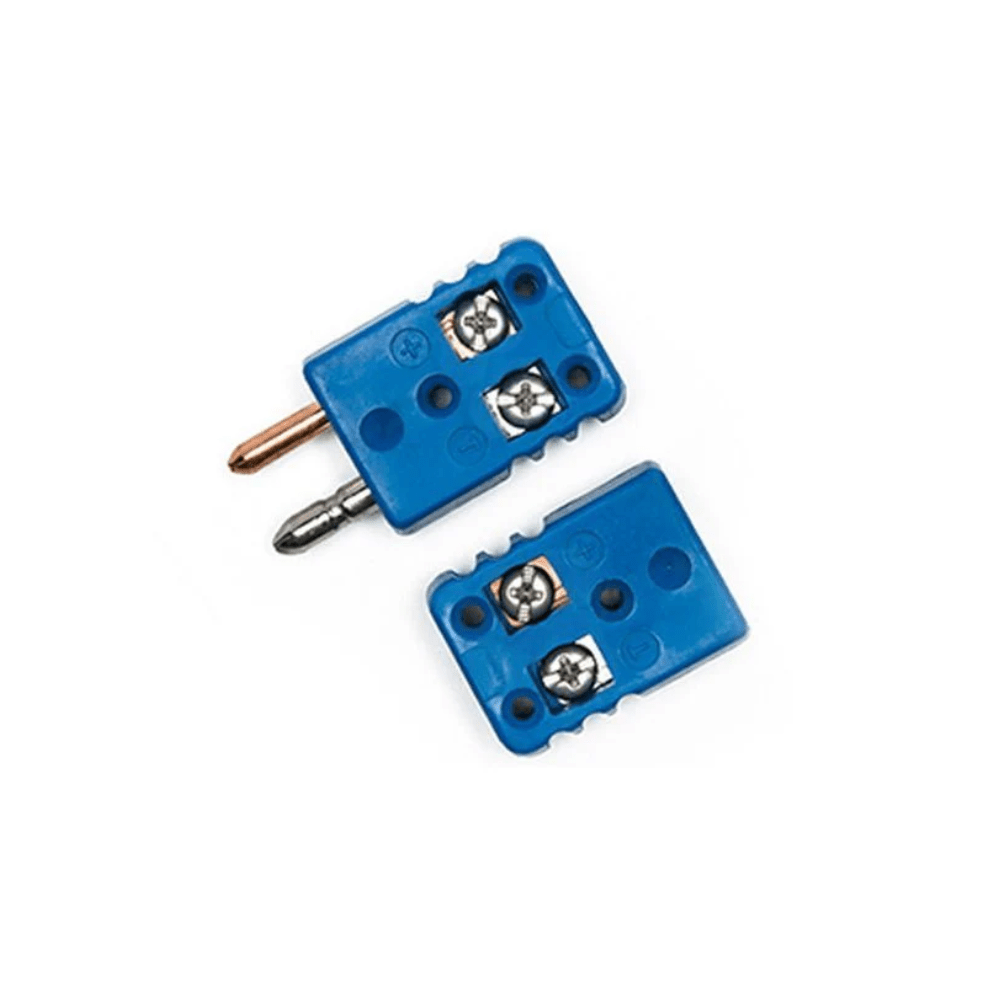

The Protectowire CTIC kit is a male/female connector pair used to splice CTI (Confirmed Temperature Initiation) linear heat detector cable. Each connector is molded in one piece with channels for the conductors and screw connections, so no separate terminal cap or fasteners are needed. Correct polarity must be maintained through the splice.
Key Features
- Splicing terminals for Protectowire CTI linear heat detectors
- Kit includes one male and one female connector
- One-piece molded connectors with no separate terminal cap or fasteners
- Twin molded-in channels for the conductors; permanently mounted prongs and inserts with screw connection
- Correct polarity must be maintained when splicing
Specifications
| Material |
Glass-filled thermoset |
| Temperature rating |
400°F (205°C) continuous |
| Kit contents |
1 male and 1 female connector |
Compatible With
- Protectowire CTI linear heat detector
