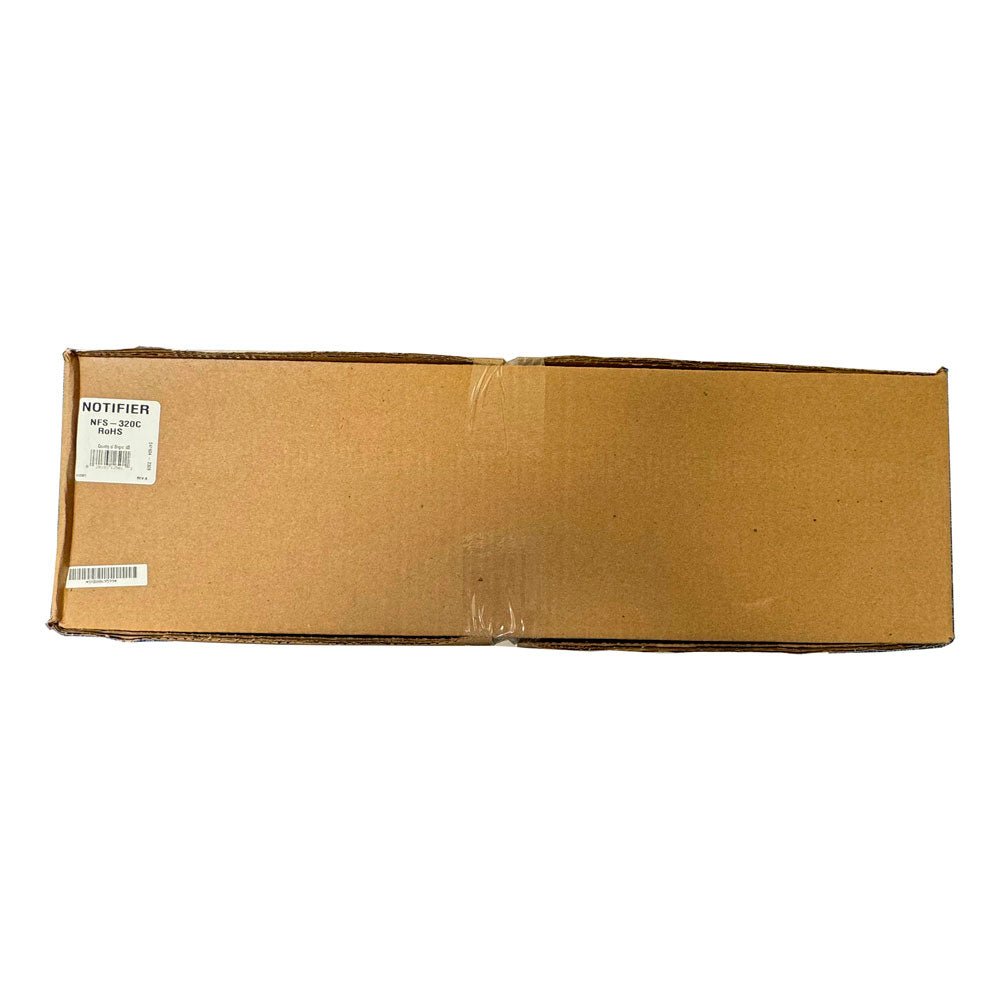

Notifier NFS-320C is the Canadian, ULC-listed version of the NFS-320 single-loop intelligent addressable fire alarm control panel in the ONYX Series. It is listed to ULC-S527-11, supports Canadian two-stage coding, and allows an optional ACM Series annunciator to be mounted in the same cabinet for up to 48 zones/points. The standard NFS-320C ships factory-assembled with the control panel on its chassis, integral power supply, KDM-R2 keypad/display and cabinet; batteries are purchased separately.
Specifications
| Loop |
One isolated intelligent Digital Communications Loop (DCL), Class A, B or X |
| Device capacity |
159 detectors and 159 modules; 318 devices maximum |
| Software zones |
99 programmable |
| Primary input power |
120 VAC, 50/60 Hz, 5.0 A |
| Total 24 V output |
6.0 A in alarm, shared by all internal circuits |
| Notification circuits |
Four Class A/B NACs, 1.5 A each |
| Auxiliary outputs |
Resettable 24 V 1.25 A; non-resettable 24 V 1.25 A and 0.50 A; non-resettable 5 V 0.15 A |
| Board current (standby/alarm) |
0.250 A plus 0.035 A per NAC in use; KDM-R2 0.100 A |
| Battery charger |
18-200 AH; float 27.6 V; separate cabinet for batteries over 26 AH |
| Display and history |
80-character display, full QWERTY keypad; 800-event history plus 200-event alarm-only file |
| Backbox |
18.12 x 18.12 x 5.81 in. (46.025 x 46.025 x 14.76 cm) |
| Shipping weight |
37 lb (16.78 kg) without batteries |
| Listings |
ULC listed S635; FM approved; CSFM 7165-0028:0243; FDNY COA #6212 |
Compatibility and installation notes
- Uses two 12 V batteries, 18 to 200 AH (BAT Series), ordered separately.
- One or two option boards fit in the panel cabinet; further option boards go in remote cabinets.
- For CAB-4 or CAB-5 series backboxes, use the NFS-320SYS instead (DN-60637).
- Optional TR-320 trim ring; with the trim ring, leave at least 1 in. between the wall surface and the front of the backbox so the door can open fully.
- See the Canadian applications manual addendum 52747.
Related models
- NFS-320C-FR, French language; NFS-320CR, red enclosure
-
Notifier NFS-320, UL listed version
- NFS-320-RBC-FR replacement board with CPU, Canadian French
Documents
Specifications from Notifier data sheet DN-60085:S (7/30/2022). Manufacturer specifications are subject to change.
