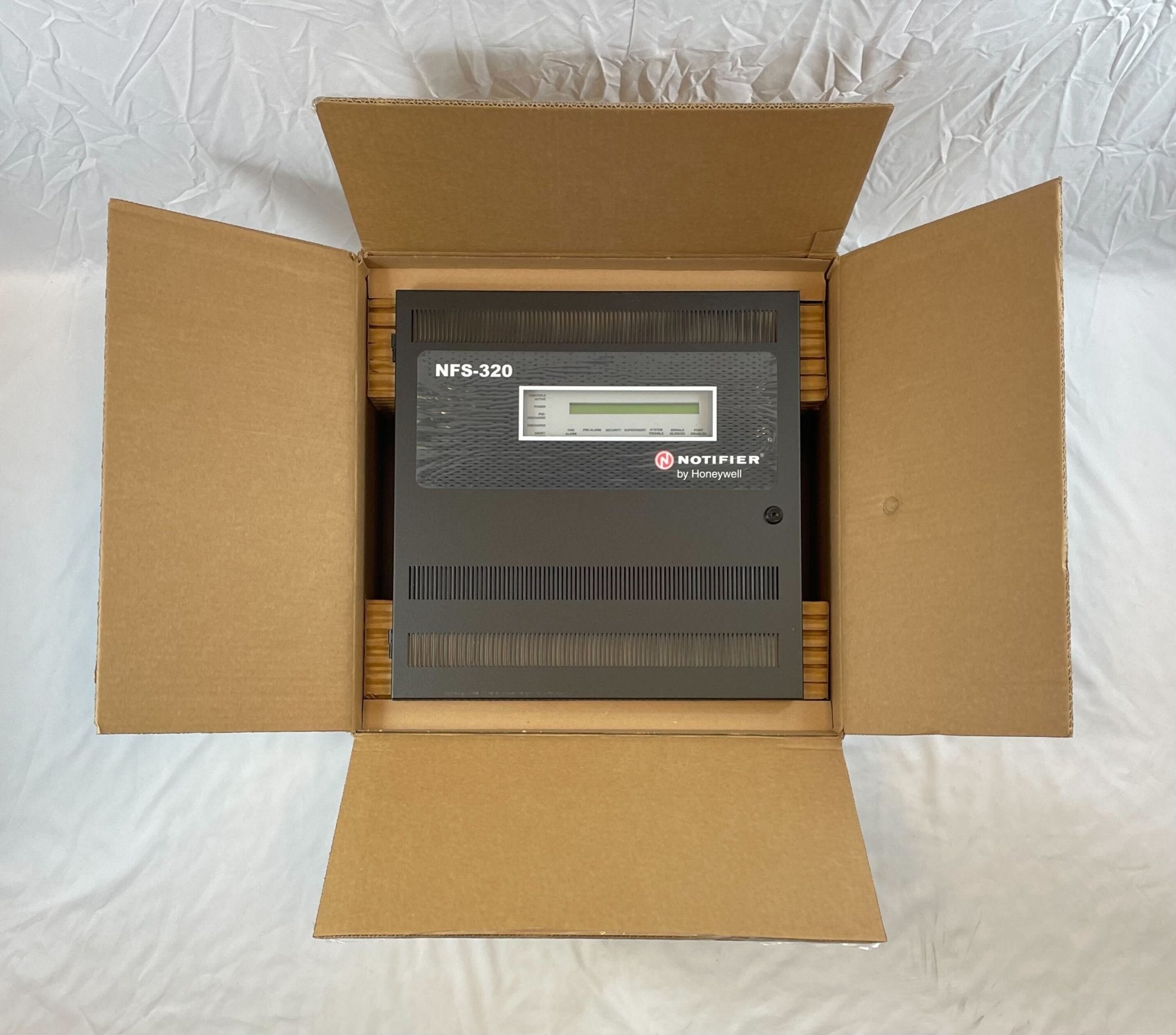

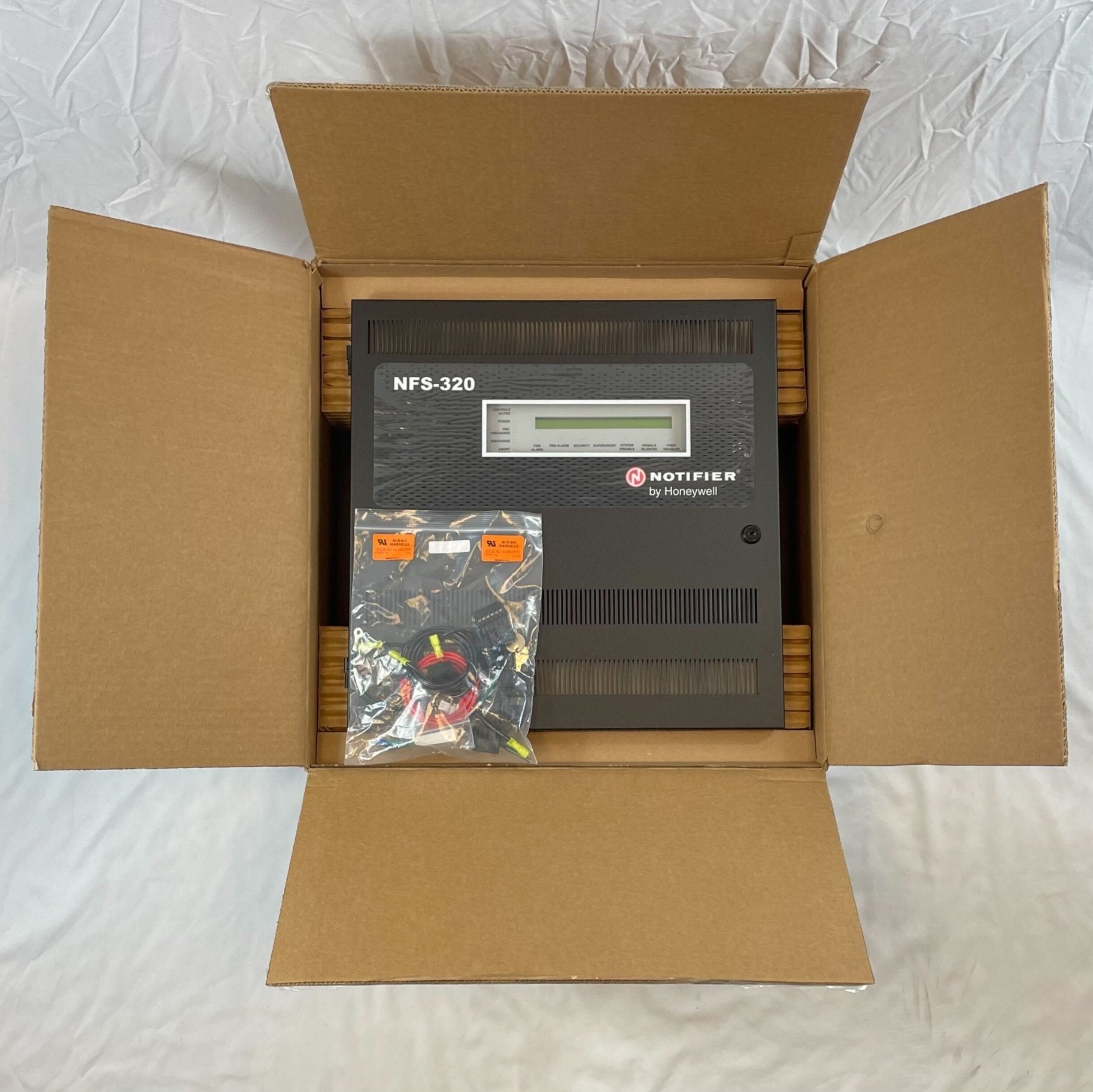

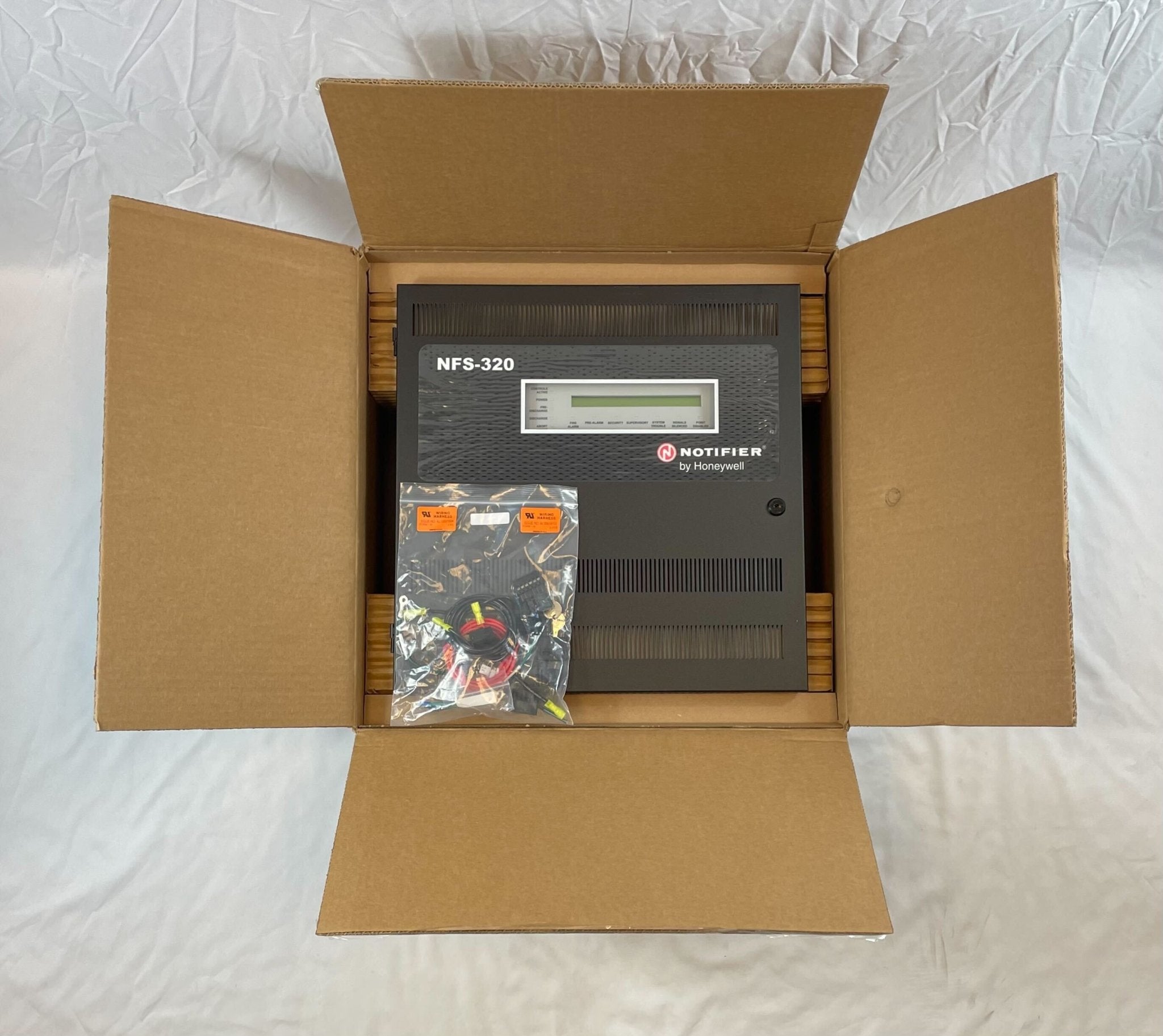

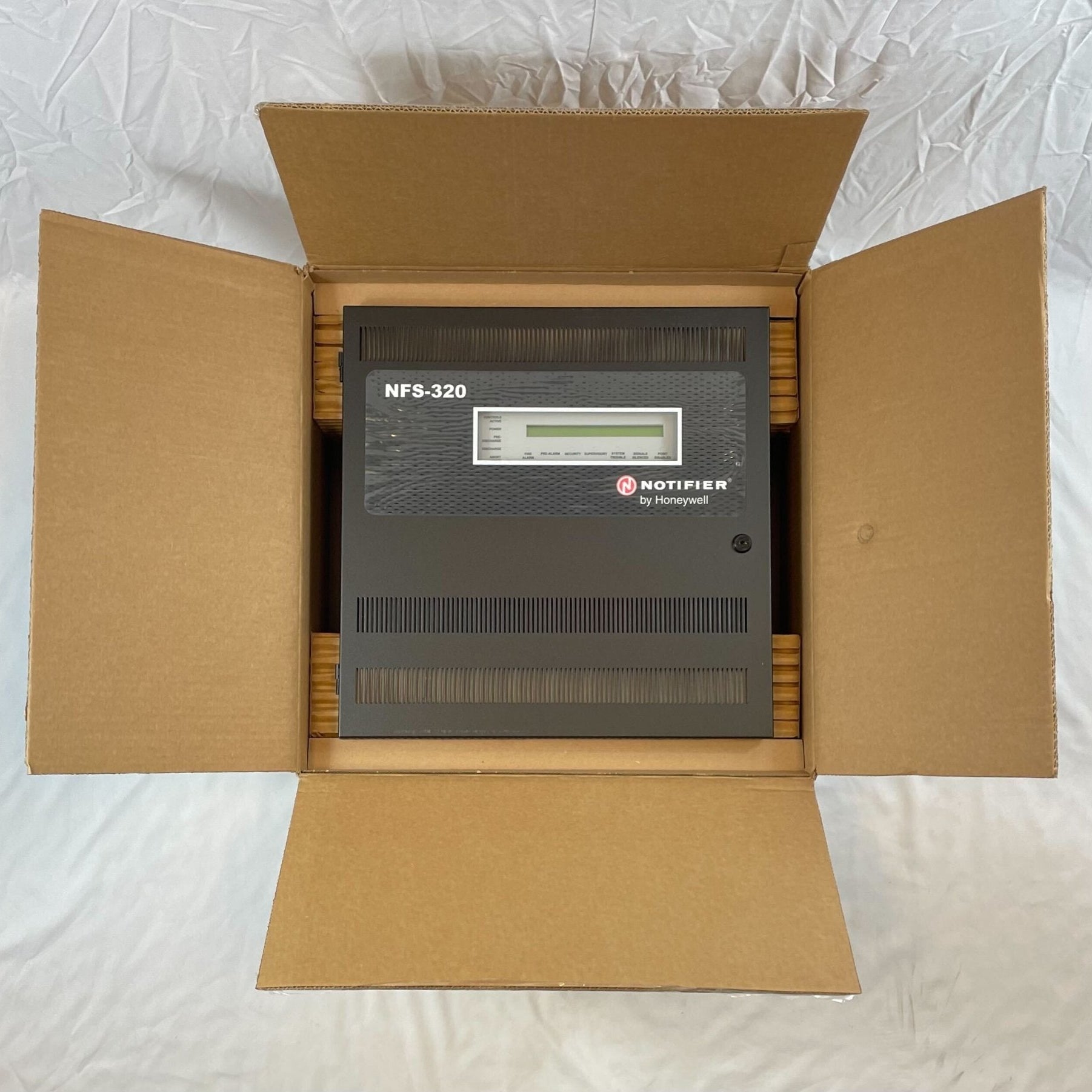

NOTIFIER NFS-320 — an intelligent addressable fire alarm control panel in the ONYX® Series, with one isolated Signaling Line Circuit supporting up to 318 addressable devices.
ONYX Series products meet virtually every application requirement in stand-alone or network configurations. The NFS-320’s modular design makes system planning easier: the panel can be configured with just a few devices for small building applications, or networked with many devices to protect a large campus or a high-rise office block. Simply add additional peripheral equipment to suit the application. Wireless fire protection can be added with the SWIFT wireless gateway and devices.
For installations using NFS-320C, an optional ACM Series annunciator can be mounted in the same cabinet (up to 48 zones/points, ordered separately; see DN-60085). ONYX® Series panels integrate with the Connected Life Safety Services (CLSS) platform through the CLSS Gateway, providing connectivity to central station, cloud and mobile applications (see HON-62034).
Note: unless called out with a version-specific "R", "C" or "E" at the end of the part number, "NFS-320" refers to models NFS-320, NFS-320R, NFS-320C and NFS-320E.
Features
- Certified for seismic applications when used with the appropriate seismic mounting kit.
- Approved for marine applications when used with listed compatible equipment. See DN-60688.
- One isolated intelligent Signaling Line Circuit (SLC), Class A, B or X.
- Wireless fire protection using SWIFT Smart Wireless Integrated Fire Technology. See DN-60820.
- Up to 159 detectors and 159 modules per SLC; 318 devices maximum. Polls up to 318 devices in less than two seconds.
- Detectors can be any mix of photo, thermal or multi-sensor; modules include addressable pull stations, normally-open contact devices, two-wire smoke detectors, notification or relay.
- Standard 80-character display and full QWERTY keypad.
- High-speed network for up to 200 nodes; standard network for up to 103 nodes.
- 6.0 A power supply with four Class A/B built-in Notification Appliance Circuits. Selectable System Sensor, Wheelock or Gentex strobe synchronization.
- Built-in Alarm, Trouble, Security and Supervisory relays.
- VeriFire® Tools online or offline programming utility — upload/download, save, store, check, compare and simulate panel databases, and upgrade panel firmware.
- Autoprogramming and Walk Test reports.
- History file with 800-event capacity in nonvolatile memory, plus a separate 200-event alarm-only file.
- Alarm Verification selection per point with automatic counter; Presignal/Positive Alarm Sequence (PAS).
- NAC coding: march time, temporal, California two-stage, Canadian two-stage, strobe synchronization.
- Automatic time control functions with holiday exceptions; powerful Boolean logic equations.
- Extensive built-in transient protection.
Specifications
| Intelligent signaling line circuits |
1 |
| Intelligent detectors |
159 |
| Addressable monitor/control modules |
159 |
| Programmable internal hardware and output circuits |
4 |
| Programmable software zones |
99 |
| Special programming zones |
14 |
| LCD annunciators |
32 |
| ACS annunciators |
32 addresses x 64 points |
| Primary input power |
120 VAC, 50/60 Hz, 5.0 A |
| Board current draw (standby/alarm) |
0.250 A, plus 0.035 A for each NAC in use |
| Total output 24 V power |
6.0 A in alarm, shared by all internal circuits |
| Standard notification circuits |
Four, 1.5 A each |
| Resettable regulated 24 V power |
1.25 A |
| Non-resettable regulated 24 V outputs |
Two — 1.25 A and 0.50 A |
| Non-resettable 5 V power |
0.15 A |
| Battery charger range |
18 AH – 200 AH (use a separate cabinet for batteries over 26 AH) |
| Float rate |
27.6 V |
| Backbox dimensions |
18.12 in. (46.025 cm) wide x 18.12 in. (46.025 cm) high x 5.81 in. (14.76 cm) deep |
| Door dimensions |
18.187 in. (46.195 cm) wide x 18.40 in. (46.736 cm) high x 0.75 in. (1.905 cm) deep |
| Trim ring |
Molding width 0.905 in. (2.299 cm) |
| Shipping weight (without batteries) |
36.15 lb. (16.4 kg) |
| SWIFT gateway capacity |
Each SWIFT Gateway supports up to 49 SWIFT devices |
| Operating environment |
32–120°F (0–49°C), relative humidity 93% ± 2% non-condensing at 90°F ± 3°F (32°C ± 2°C) |
| Standards |
UL 864 10th edition; UL 2610; UL 2572 (NFS-320 version 20 or higher); ULC-S527-11 |
| UL/ULC listed |
S635 |
| FM |
Approved |
| CSFM |
7165-0028:0243 |
| FDNY |
COA# 6212 |
| Other approvals |
City of Chicago |
| Seismic |
IBC 2012, 2009, 2006, 2003, 2000; CBC 2007 |
Installation notes
-
6.0 A is a shared pool: the power supply has a total of 6.0 A of available power shared by all internal circuits. Four NACs rated 1.5 A each sum past that — use the current draw calculation sheet in the Installation Manual rather than adding circuit maximums.
-
Battery size drives the cabinet: the charger covers 18–200 AH, but batteries over 26 AH require a separate cabinet.
-
Line voltage is model-specific: the NFS-320 is a 120 VAC panel; the NFS-320E is the 220/240 VAC, 2.5 A version.
-
Seismic certification requires the kit: use SEISKIT-320/B26 for the panel; the BB-25 and NFS-LBB have their own kits (SEISKIT-BB25, SEISKIT-LBB).
-
Auxiliary and remote station service per NFPA 72 requires the TM-4; CENTRAL STATION service requires a DACT.
-
Marine approval is configuration-dependent: marine approved systems must be built from the components itemized in DN-7112, following installation document PN 54756. See DN-60688.
-
Recommended room conditions: although the panel meets NFPA requirements across its full range, battery and component life are best at a normal room temperature of 60–80°F (15–27°C).
Related models
-
NFS-320E — 220/240 VAC, 50/60 Hz, 2.5 A version.
-
NFS-320C — version allowing an optional ACM Series annunciator in the same cabinet (see DN-60085).
-
NFS-320R — red-cabinet version of the panel.
-
NFS-320SYS — system configuration of the panel (see DN-60637).
-
NFS2-640 — larger ONYX Series panel with one SLC expandable to two.
-
FWSG(A) — SWIFT wireless gateway, supporting up to 49 wireless devices.
Specifications taken from the NOTIFIER data sheet "NFS-320 Intelligent Addressable Fire Alarm Control Panel," document DN-7112:Q (9/14/2022). Manufacturer specifications are subject to change without notice.
