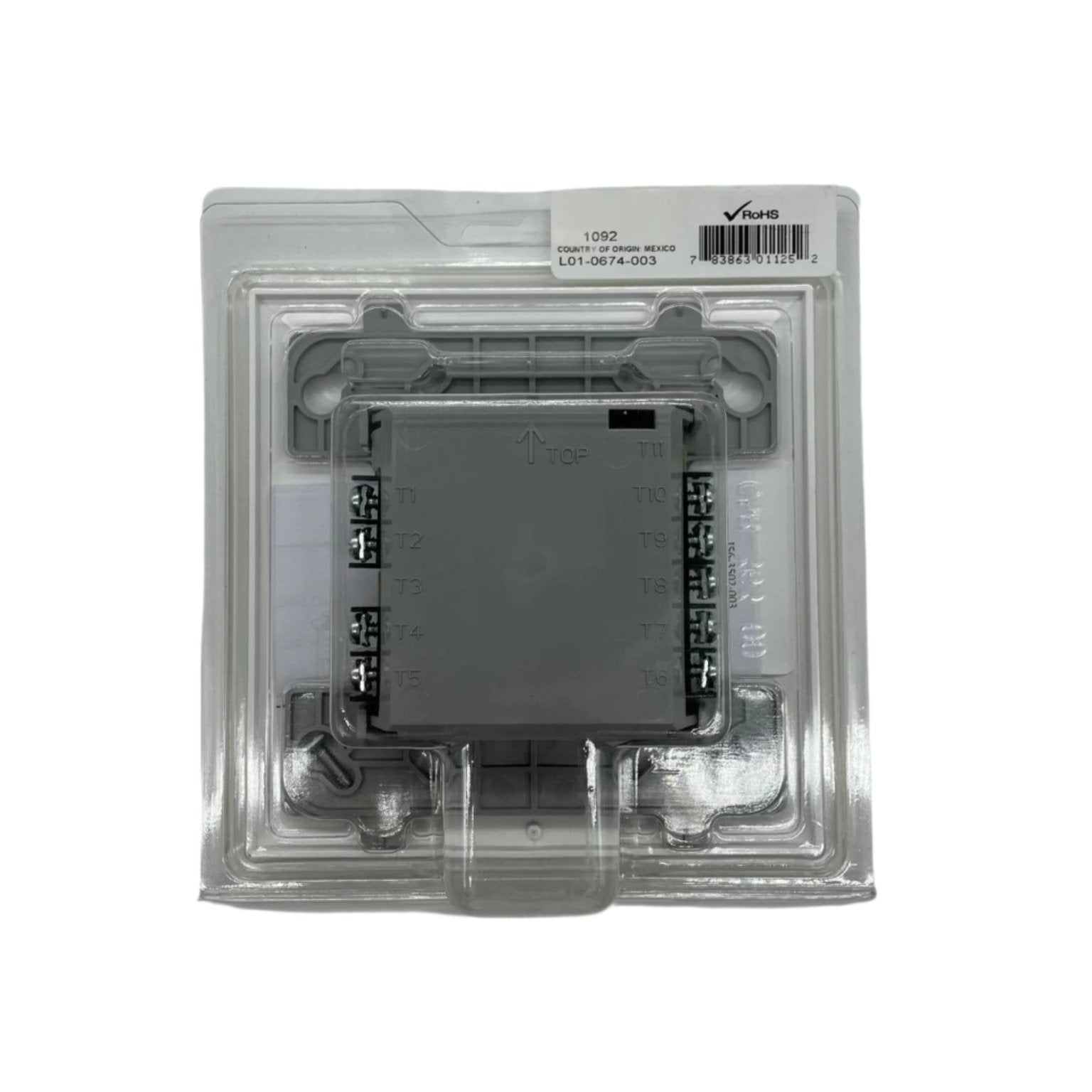

NOTIFIER FRM-1 is an addressable relay module that provides the system with a dry-contact output for activating auxiliary devices such as fans, dampers and control equipment.
Addressability allows the dry contact to be activated, either manually or through panel programming, on a select basis. The FRM-1 may be programmed to operate dry contacts for applications such as door holders or Air Handling Unit shutdown, and to reset four-wire smoke detector power. Its internal circuitry and relay are powered directly by the two-wire SLC loop, so no separate supply is needed for the module itself.
The module provides two Form-C dry contacts that switch together. Built-in type identification automatically identifies the device to the control panel, differentiating a module address from a sensor address. An integral LED blinks green each time a communication is received from the control panel and turns steady red when activated; the LED blink may be deselected globally, which affects all devices. Two rotary switches allow direct-dial entry of the address. The face plate is off-white heat-resistant plastic.
Specifications
| Function |
Addressable relay module — two Form-C dry contacts that switch together |
| Normal operating voltage |
15 to 32 VDC |
| Maximum current draw |
6.5 mA (LED on) |
| Average operating current |
230 µA direct poll; 255 µA group poll |
| Power source |
Internal circuitry and relay powered directly by the two-wire SLC loop |
| EOL resistance |
Not used |
| Addressing |
Direct-dial entry, 01–159 for FlashScan® loops, 01–99 for CLIP mode loops |
| Contact rating — 30 VDC resistive, non-coded |
3 A |
| Contact rating — 30 VDC resistive, coded |
2 A |
| Contact rating — 110 VDC resistive, non-coded |
0.9 A |
| Contact rating — 125 VDC resistive, non-coded |
0.9 A |
| Contact rating — 30 VDC inductive (L/R=5ms), coded |
0.5 A |
| Contact rating — 30 VDC inductive (L/R=2ms), coded |
1 A |
| Contact rating — 125 VAC inductive (PF=0.35), non-coded |
0.3 A |
| Contact rating — 70.7 VAC inductive (PF=0.35), non-coded |
0.7 A |
| Temperature range |
32°F to 120°F (0°C to 49°C) |
| Humidity range |
10% to 93% non-condensing |
| Dimensions |
4.5" (114.3 mm) high x 4" (101.6 mm) wide x 1.25" (31.75 mm) deep |
| Mounting |
Mounts to a 4" (101.6 mm) square x 2.125" (53.975 mm) deep box |
| UL certified |
S635 |
| ULC certified |
S3705 (A version only) |
| FM |
Approved |
| CSFM |
7300-0028:0219 |
| MEA |
14-00-E |
| FDNY |
COA #6067, #6065 |
| Country of origin |
Made in the U.S.A. |
Installation notes
-
Additional AC contact ratings: DN-6724 also lists 25 VAC inductive ratings, but the published table gives two different currents for that same voltage and load type. Confirm the 25 VAC figure against the current data sheet before designing to it — the values above are the unambiguous ones.
-
Dry contacts only: the FRM-1 switches a contact; it does not supply power. Anything it drives needs its own supply, and that supply is relay-isolated from the SLC.
-
Backbox: requires a 4" square, 2.125" deep box, or the optional SMB500 surface-mount backbox.
-
Wiring separation: the CB500 barrier is the series accessory for separating power-limited and non-power-limited wiring sharing a junction box.
-
Address range depends on protocol: 01–159 on FlashScan, 01–99 on CLIP. Address may be set before or after mounting.
-
Documentation: FRM-1(A) installation document is I56-3502; see also the NOTIFIER SLC Wiring Manual, document 51253.
Related models
-
FRM-1A — the ULC-certified version of the same relay module.
-
FCM-1(A) — control module from the same series; supervises a Notification Appliance Circuit and switches 24 V NAC power or audio up to 70.7 Vrms, rather than providing dry contacts.
-
SMB500 — optional surface-mount backbox.
-
CB500 — module barrier for power-limited / non-power-limited wiring separation.
FAQ
Does the FRM-1 supply power to what it switches?
No. It switches a dry contact; anything it drives needs its own supply, which is relay-isolated from the SLC.
What address range does the FRM-1 use?
01 to 159 on FlashScan loops and 01 to 99 on CLIP mode loops.
Specifications taken from the NOTIFIER data sheet "FCM-1(A) & FRM-1(A) Series Control and Relay Modules," document DN-6724:B3 (2/17/2011). Manufacturer specifications are subject to change without notice.
