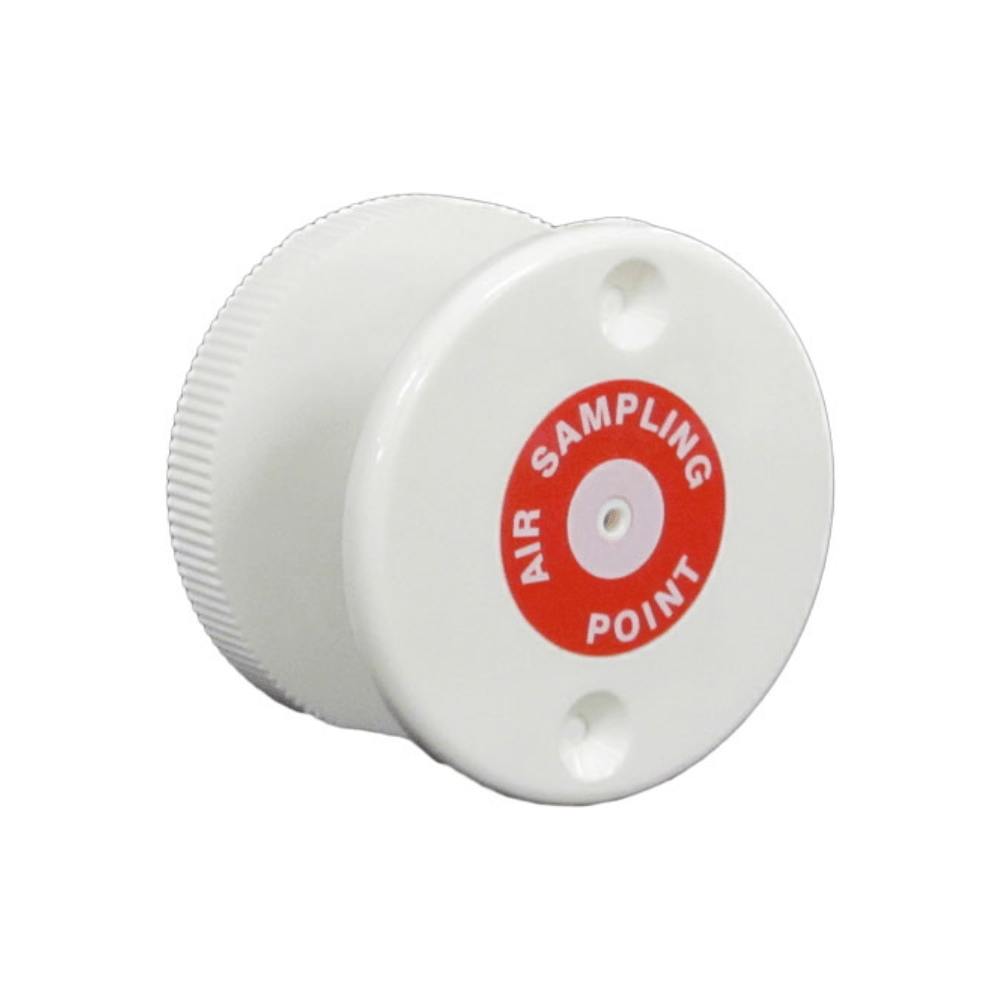

ModuLaser RP5222 — RedPipe air sampling point for aspirating smoke detection pipe networks.
A sampling point gives each sampled location a defined, labeled opening in the pipe instead of a bare drilled hole, so hole size stays as calculated and the point stays identifiable at inspection. The RP5222 sits in the RedPipe accessory range used with ModuLaser, cataloged as SF-RP5222.
- For RedPipe 3/4 in. CPVC SCH-40 pipe, 0.874 in. (22.1 mm) inside diameter
- RedPipe itself is UL listed for use with air sampling fire and smoke detectors
- White body with a factory applied red label; every point must be labeled
- Single point, not a pack: the range marks 10-packs with an X suffix and RP5222 has no X
- Sample hole markers are not required on RedPipe
- Companion points in the group are SF-RP5216 and SF-RP5233
Confirm the profile before ordering. Two documents disagree. RedPipe catalog LT15564 Rev A shows RP5222 as the coned point with the red DO NOT PAINT label and RP5216 as flat low profile. The Edwards ModuLaser training material labels the same two photographs the other way round. This listing follows the catalog.
