ModuLaser RP5216 — RedPipe flush air sample point for 3/4 in. CPVC aspirating smoke detection pipe.
An aspirating detector draws room air back along a sampling pipe, and the sample point is the fitting at the open end that admits that air through a clean, clearly marked aperture. The RedPipe catalog shows RP5216 as the flat-profile type, a low-profile white body with a red AIR SAMPLING POINT marking, and Edwards lists it among the ModuLaser air sample points used for capillary sampling below false ceilings.
- Sold individually: an X suffix in this range denotes a 10-pack, and RP5216 carries no X
- Suits RedPipe 3/4 in. CPVC SCH-40 pipe, ID 0.874 in. (22.1 mm)
- RedPipe fittings are UL Listed and CSFM listed, made in the USA
- RedPipe is the Space Age Electronics line specified alongside ModuLaser

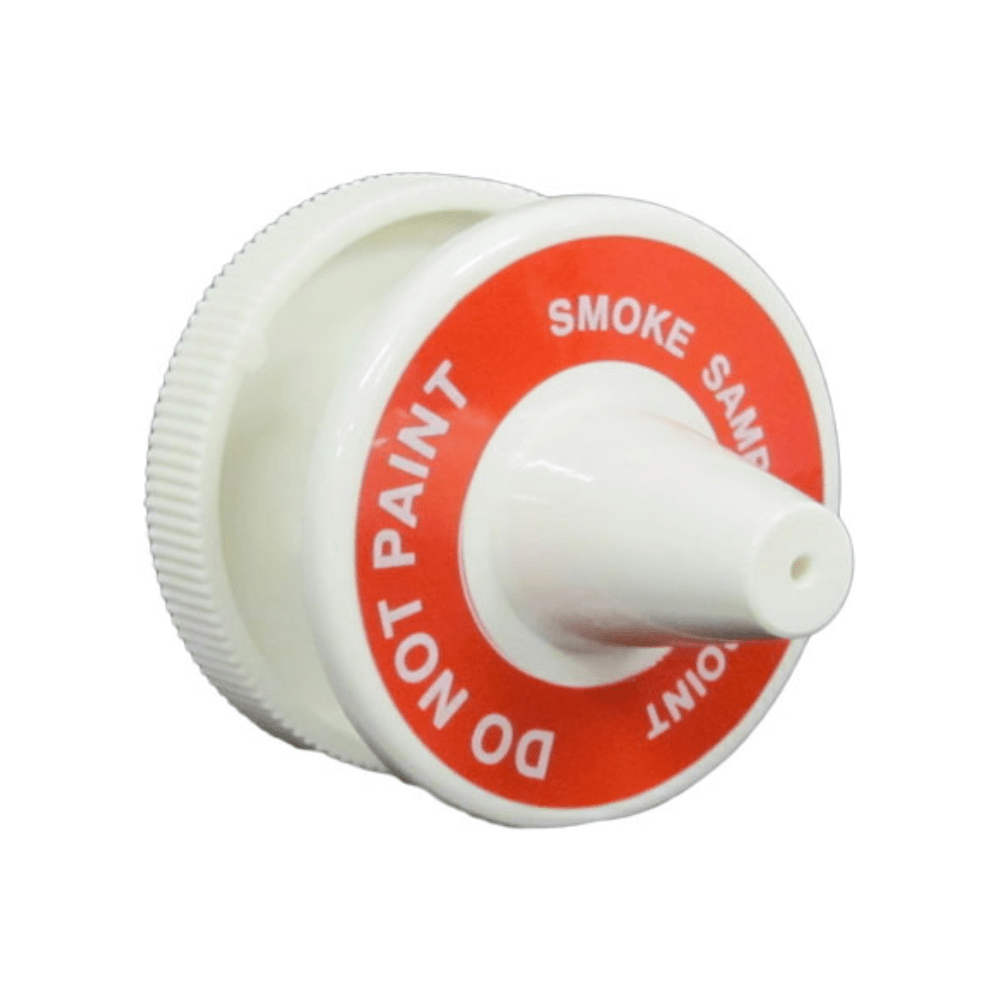

One caution before ordering: the RedPipe catalog and Edwards ModuLaser material assign the flat and coned profiles to RP5216 and RP5222 in opposite order, so confirm the profile with your supplier. RP5222 is the coned point marked DO NOT PAINT; RP5233 is the plain sleeve. RP5206X couplings, RP5202X elbows and RP5204X tees ship 10 per pack, RP5212 clips 25 per pack.
