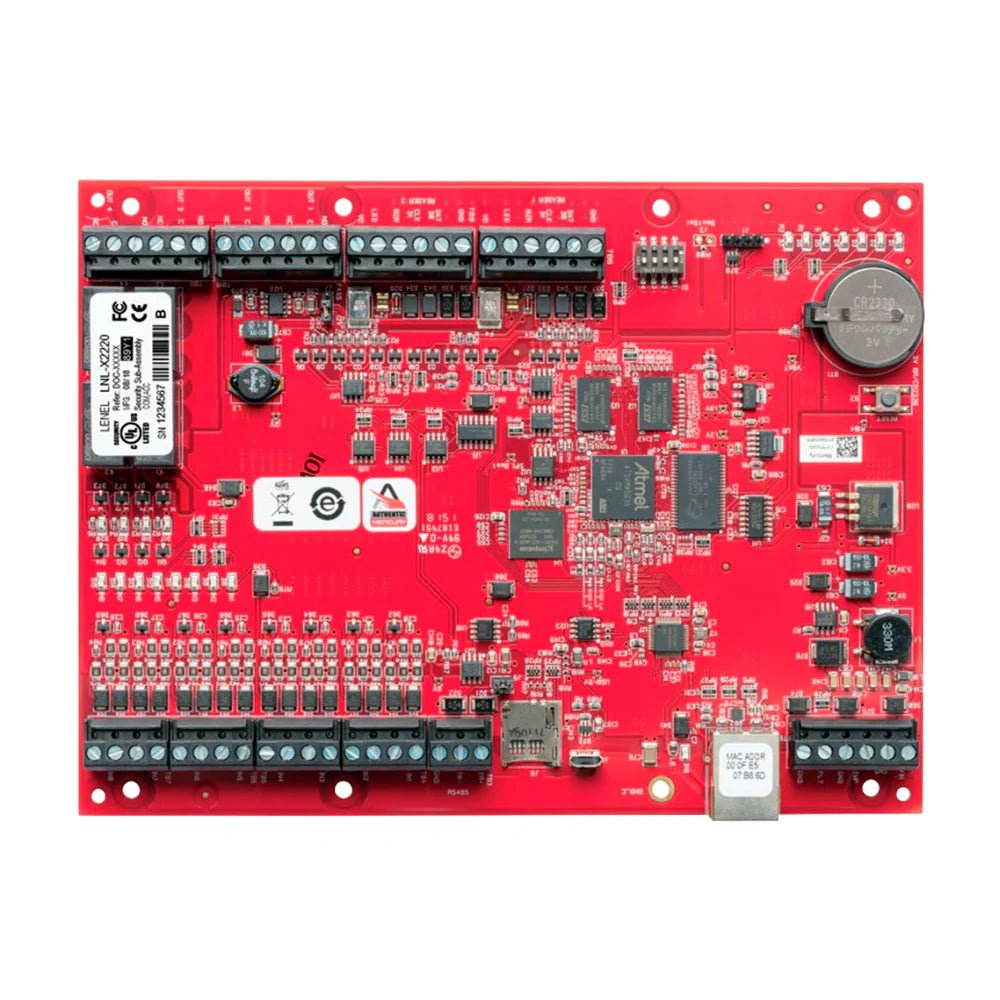

Lenel LNL-X2220 Intelligent Dual Reader Controller (IDRC) — a single-board solution for interfacing one or two doors to an OnGuard® system. Native Ethernet lets the controller connect directly from the entry location to the OnGuard server, and additional I/O and reader interface modules can be added on the downstream port to expand its capabilities.
In the event of communication loss, the LNL-X2220 allows nearly all local functionality to continue unimpaired until the server connection is restored.
Specifications
| Primary power |
12 to 24 VDC ±10%, 500 mA maximum (reader current not included) |
| Reader ports |
Two on-board; 600 mA maximum (add 600 mA to primary power current) |
| Reader protocols |
Data1/Data0, Clock/Data, supervised and unsupervised F2F, biometric, and bi-directional RS-485 OSDP™ |
| Inputs |
Eight supervised / unsupervised, standard EOL 1k/1k ohm, 1% 1/4 W; plus two dedicated inputs for cabinet tamper and UPS fault |
| Outputs |
Four relays — NO: 5 A @ 30 VDC resistive; NC: 3 A @ 30 VDC resistive |
| Cardholder memory |
Up to 250,000 cardholders in non-volatile flash; 6 MB on-board available |
| Event storage |
50,000 events, battery-backed RAM |
| Host communication |
Ethernet 10-BaseT/100Base-TX; optional secondary NIC via USB 2.0 adapter (USB2-OTGE100) |
| Downstream port |
2-wire RS-485, 2,400 to 115,200 bps; up to 32 devices (maximum 64 doors), 4,000 ft maximum |
| Encryption |
AES 256-bit to LenelS2 Series 3 modules, AES 128-bit to Series 2; AES128 or TLS 1.2 to OnGuard |
| Badge formats |
Up to 16 |
| Access levels / floors |
Up to 32,000 access level permissions; elevator control for up to 128 floors |
| Operating temperature |
0° to +70°C operating; −55° to +85°C storage |
| Humidity |
5 to 95% RHNC |
| Heat output |
20.5 BTU/hr at 12 VDC; 22.9 BTU/hr at 24 VDC |
| Dimensions |
8.0″ W × 6.0″ L × 1.0″ H (203.2 × 152.4 × 25 mm) |
| Weight |
9.0 oz (255 g) nominal, board only |
| Approvals |
UL 294, UL 2610, FCC Part 15, CE, RoHS |
Cable requirements
-
Power and relays: one twisted pair, 18 to 16 AWG
-
Ethernet: CAT-5 minimum
-
TTL reader: 22 to 16 AWG, depending on length and requirements
-
Alarm input: one twisted pair, 30 ohms maximum, typically 22 AWG at 1,000 ft
-
RS-485 I/O device port: one twisted pair with drain wire and shield, 120 ohm impedance, 24 AWG, 4,000 ft maximum
-
RS-485 reader port: one twisted pair with drain wire and shield, 120 ohm impedance, 24 AWG, 2,000 ft maximum
The interface is for use in low voltage, Class 2 circuits only. Installation must comply with all local fire and electrical codes.
Specifications taken from the LenelS2 / Honeywell LNL-X2220 Intelligent Dual Reader Controller data sheet (2024/07). Manufacturer specifications are subject to change without notice.
