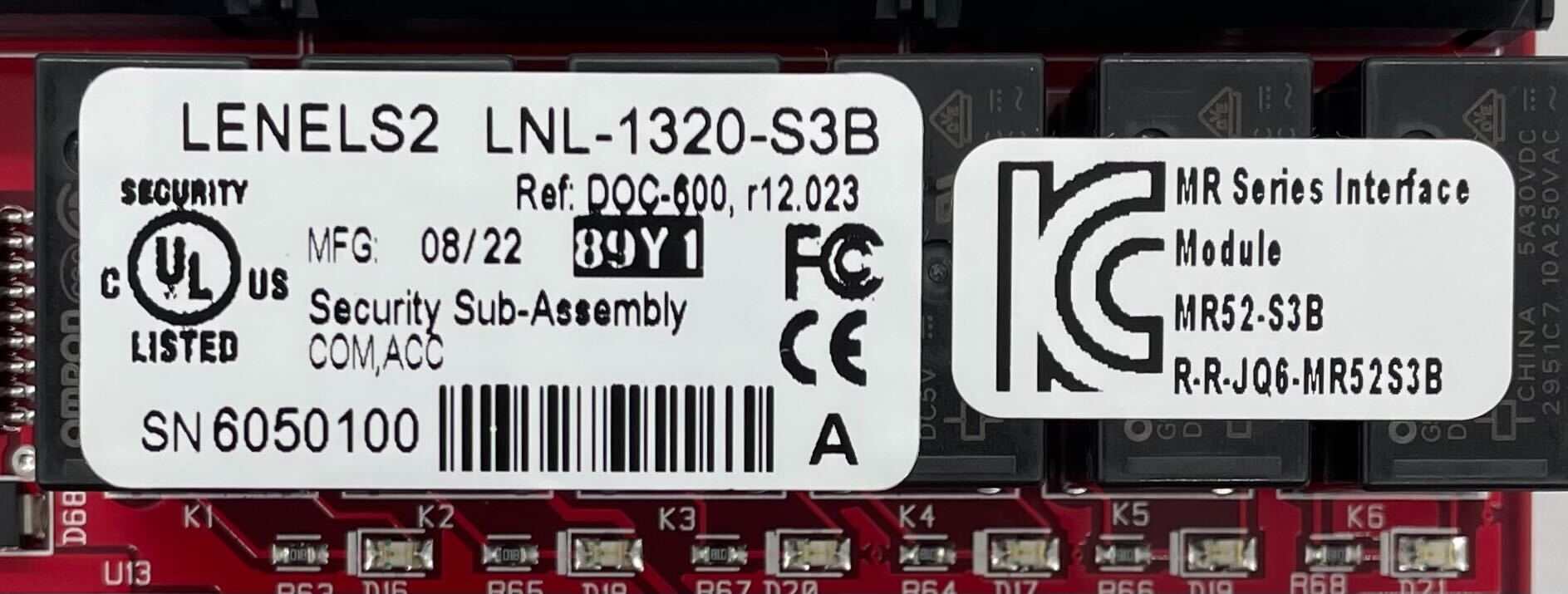

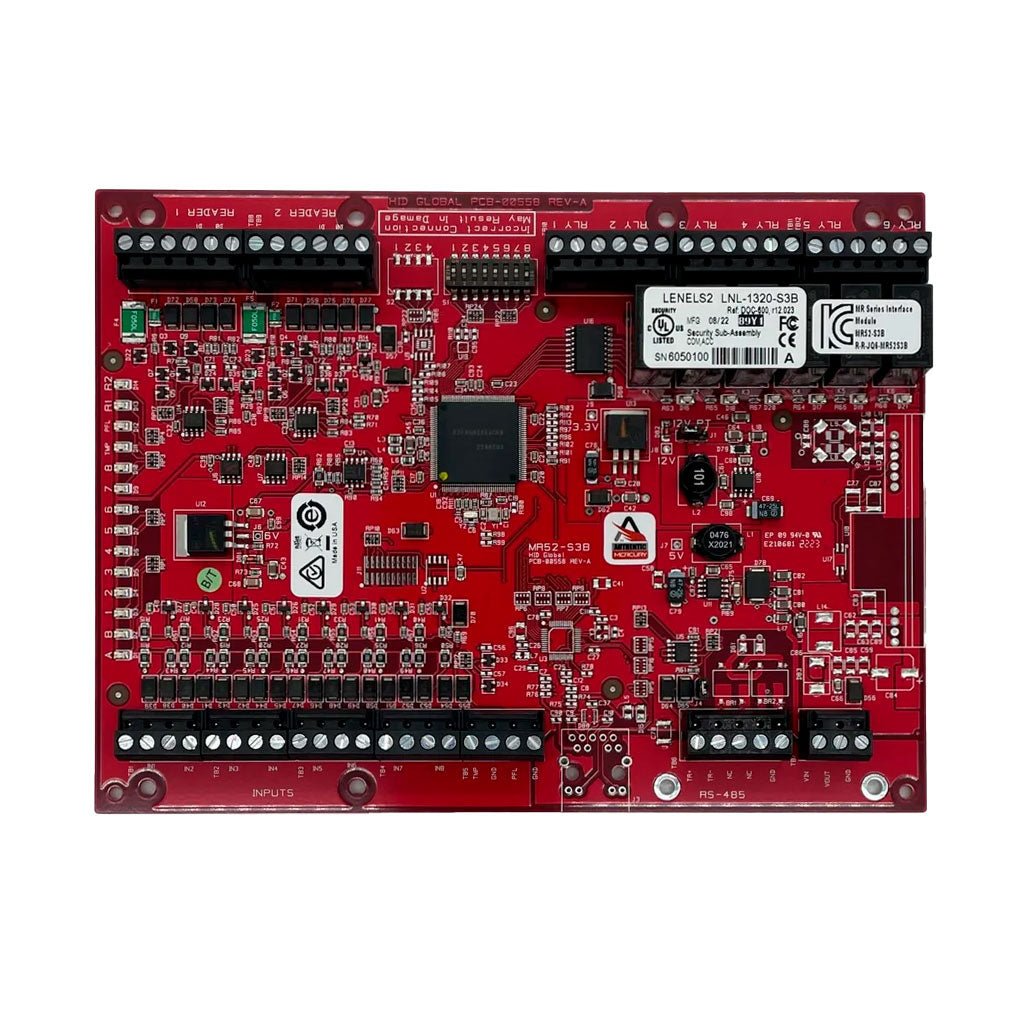

Lenel LNL-1320-S3B — Series 3 dual reader interface module linking two card readers and their door hardware to a LenelS2 OnGuard system.
This is access control hardware, not a fire alarm device. It sits on an RS-485 multi-drop between an intelligent system controller such as the LNL-3300 and the readers at two doors, holding card formats, strike control and request-to-exit logic locally so offline access modes survive a lost link.
- Two reader ports: Wiegand Data1/Data0, clock and data, F/2F, and OSDP over 2-wire RS-485 with Secure Channel
- Eight supervised or unsupervised inputs, 1 kΩ/1 kΩ end-of-line, plus tamper and power-fault inputs
- Six Form-C relays: 5 A at 30 VDC normally open, 3 A normally closed
- 12 to 24 VDC, 550 mA maximum excluding readers; 300 mA per reader port

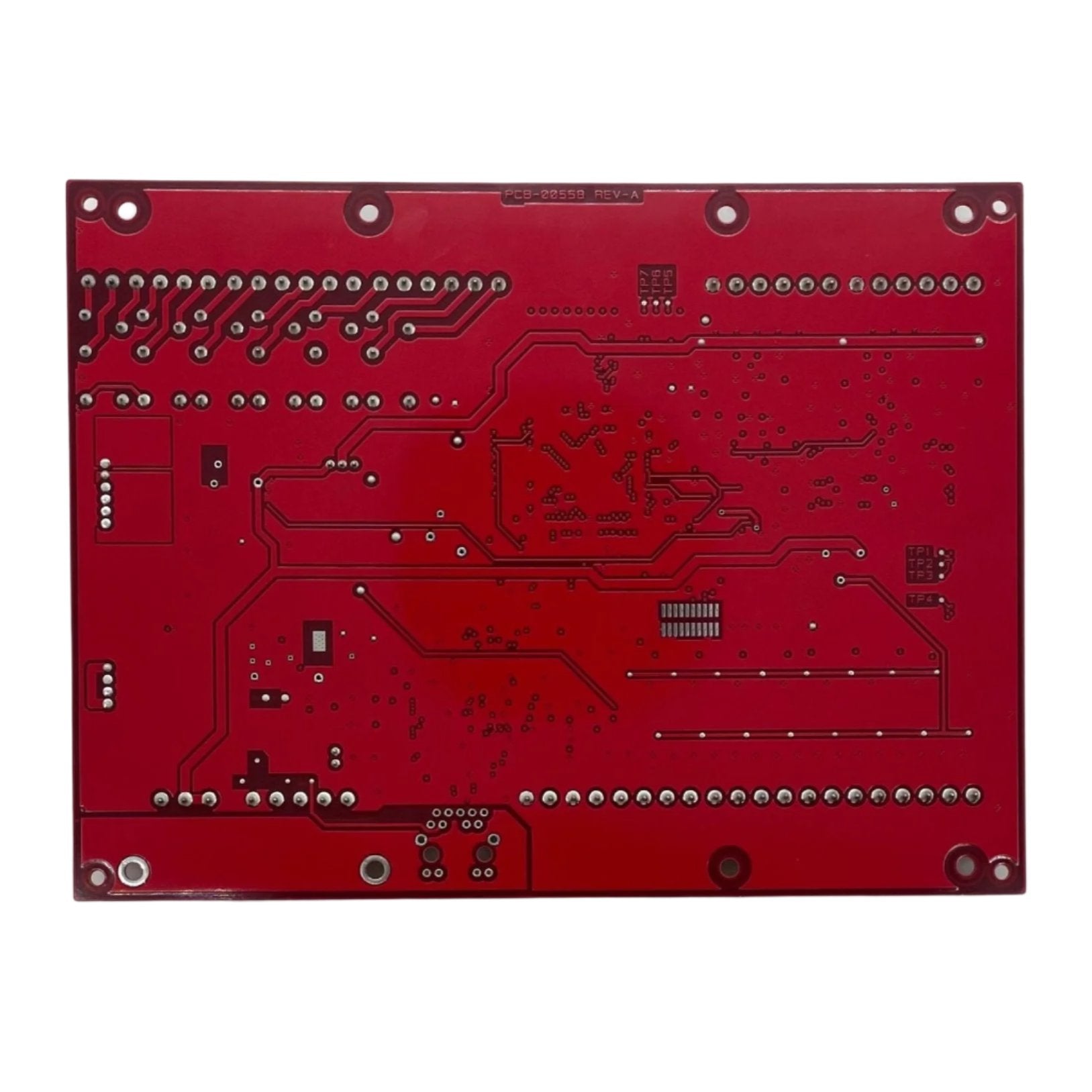

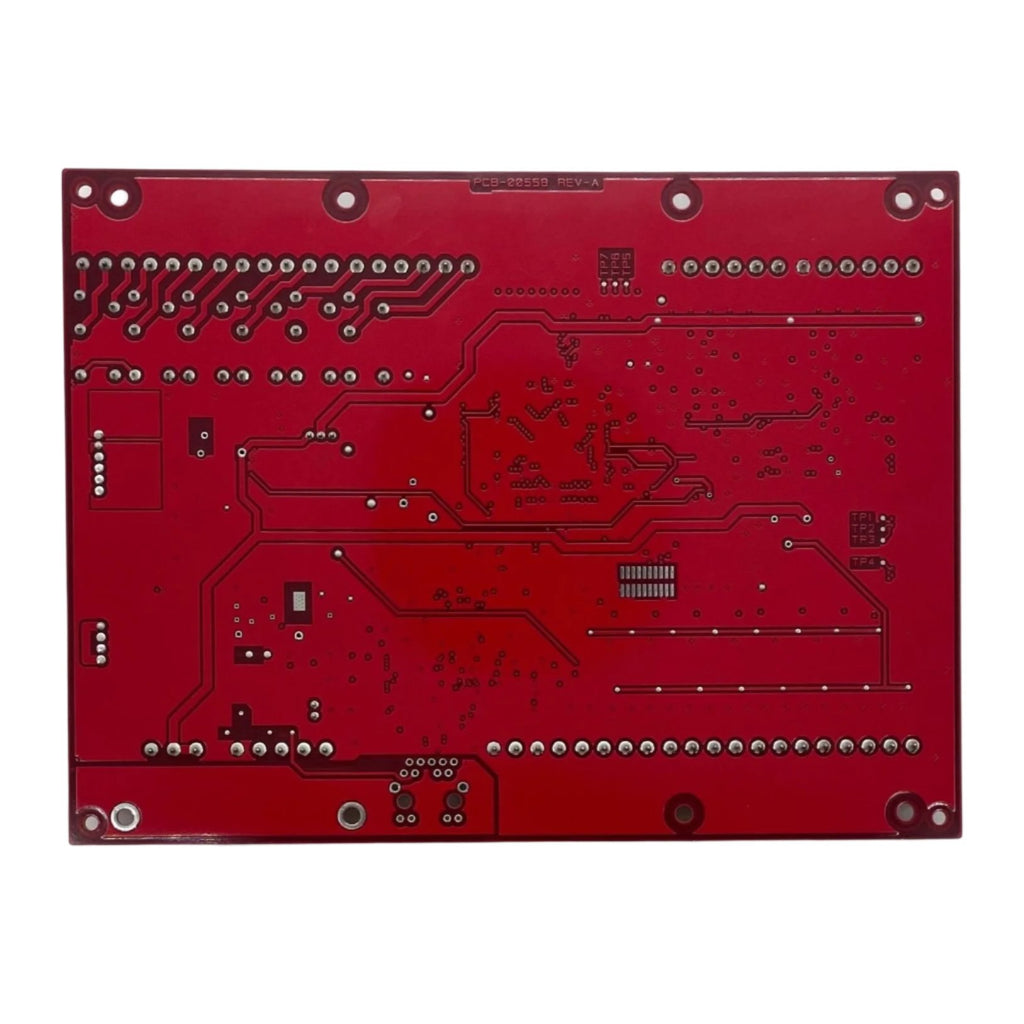

- Up to 32 modules multidropped per port over 4,000 ft; board 6 × 8 × 1 in.
- UL 294 sixth edition: standby power I, endurance IV, line security I, destructive attack I
Its bus neighbours are not substitutes: LNL-1300 is a single reader interface, LNL-1100 an input module, LNL-1200 an output module.
Documents
FAQ
Which readers does it support?
Readers and keypads using Wiegand Data1/Data0, magnetic Clock/Data, supervised and unsupervised F2F, and RS-485 OSDP, including Secure Channel encryption.
How many modules can share one controller port?
Up to 32 modules can be multidropped on 2-wire RS-485 up to 4,000 feet per port from the Intelligent System Controller.
Can it power 12 VDC readers from a 24 VDC supply?
Yes. An on-board regulator provides 12 VDC reader power at up to 300 mA per reader when the input voltage is at least 20 VDC.
What are the relay ratings?
Six Form-C relays rated 5 A at 30 VDC on the normally open contact and 3 A at 30 VDC on the normally closed contact.
