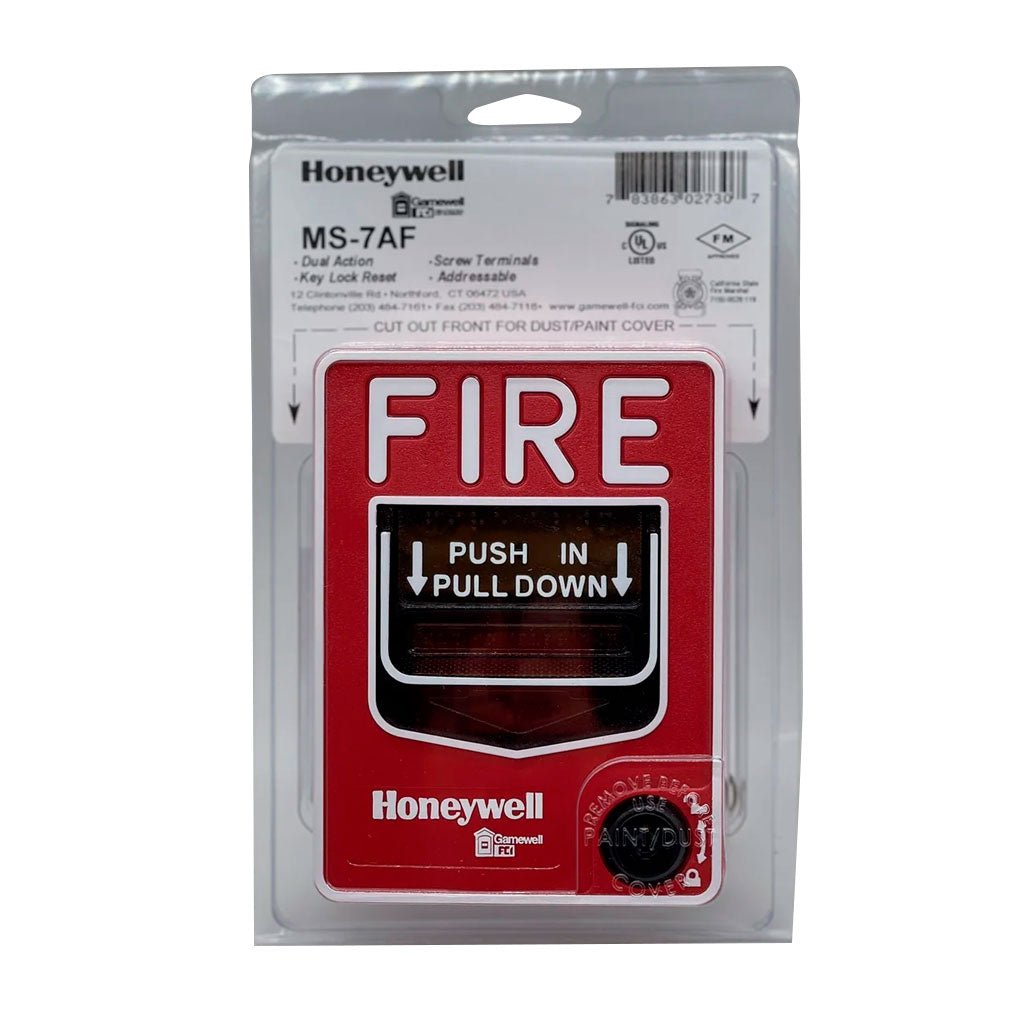

Gamewell-FCI MS-7AF — Velociti® Series addressable double action manual fire alarm pull station for the signaling line circuit of Gamewell-FCI analog addressable control panels.
Activating the MS-7AF registers its assigned address at the fire alarm control panel, so the operator sees the exact station that was pulled rather than a zone. The door carries an LED that flashes green in normal condition and lights steady red once the station has been activated, and the station uses screw terminals for field wiring. Double action means the user must perform two distinct motions (lift or push the cover, then pull), which reduces malicious activations in schools, dormitories and public corridors. Like the rest of the MS-7 Series, it meets the Americans with Disabilities Act 5-lb. maximum pull force requirement, has operating instructions and Braille text engraved in the handle, and includes a key lock/reset keyed alike with Gamewell-FCI fire alarm control panels and other MS-7 stations. The molded Lexan® housing is shock and vibration resistant and mounts surface or semi-flush.
Specifications
| Type |
Velociti Series addressable double action manual pull station |
| Panel compatibility |
For use with Gamewell-FCI analog addressable control panels only |
| Supervisory current |
0.00030 A |
| Alarm current |
0.0030 A; 0.007 A for LED |
| Contact rating (MS-7 Series) |
0.25 A @ 30 VAC/VDC (resistive) |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Relative humidity |
10% to 93% non-condensing |
| Dimensions |
5 5/8 in. H x 4 1/4 in. W x 1 1/4 in. D (14 x 10.1 x 3.2 cm) |
| Material |
Lexan® |
| Pull force |
Complies with ADA 5-lb. maximum pull force requirement |
| Terminations |

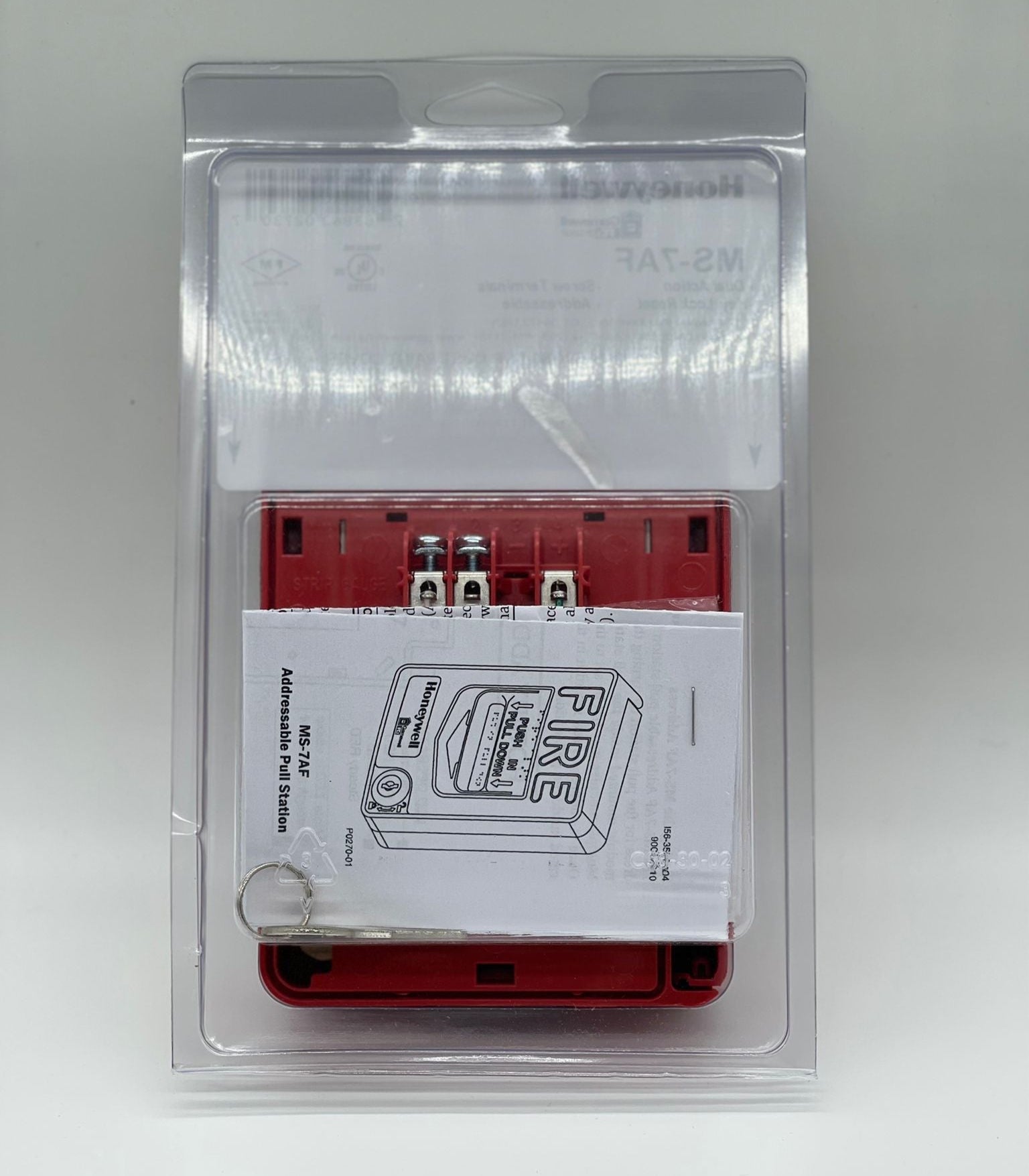

Screw terminals |
| Standard |
UL 864 9th Edition |
| Certifications |
UL S2465; FM 3023594; MEA FDNY 67-02-E Vol. VII; CSFM 7160-1703:0119, 7160-1703:0170, 7160-1703:0109 |
Installation notes
-
Double action, not single: the MS-7AF is the double action addressable station. The single action addressable equivalent is the MS-7ASF — the two are not interchangeable when a specification calls out one or the other.
-
Addressable panels only: the data sheet marks the MS-7AF and MS-7ASF for use with Gamewell-FCI analog addressable control panels only. Conventional panels take the MS-7 (double action) or MS-7S (single action) instead.
-
LED behavior by panel: only the red LED is operative in panels that do not operate in Velociti mode.
-
Mounting: surface or semi-flush on a standard double-gang or 4-inch (10.2 cm) square electrical box; the BG12TR trim ring is optional for semi-flush, and the SB-10 surface backbox is available for surface mounting.
-
Indoor use: the MS-7AF is rated 32°F to 120°F. Outdoor certification in this series belongs to the MS-7LOB (-30°F to 150°F), which must be mounted on an SB-I/O backbox.
-
Keying: the tumbler lock for test and reset is keyed alike with Gamewell-FCI analog addressable fire alarm controls and other MS-7 stations.
Related models
-
MS-7ASF — Velociti addressable single action station, same electrical and physical specifications family
-
MS-7 — conventional double action station with single pole contacts and screw terminals
-
MS-7SP — conventional double action station with English and Spanish instructions molded in
-
MS-7LOB — conventional double action station certified for outdoor applications, includes the SB-I/O backbox
-
MS-7LR / MS-7LRA — dual-action agent release stations, the LRA adding an abort switch and status LEDs
Compatibility
The MS-7AF is for Gamewell-FCI analog addressable panels only. The single action addressable equivalent is the MS-7ASF; conventional panels take the MS-7 (double action) or the MS-7S (single action).
FAQ
Is the MS-7AF single or double action?
Double action. The user lifts or pushes the cover, then pulls.
Is it rated for outdoor use?
No. It is rated 32°F to 120°F; the MS-7LOB is the outdoor-certified model in this series.
Specifications taken from the Gamewell-FCI data sheet "MS-7 Series Manual Fire Alarm Pull Stations," document 9020-0616 Rev. F (11/17). Manufacturer specifications are subject to change without notice.
