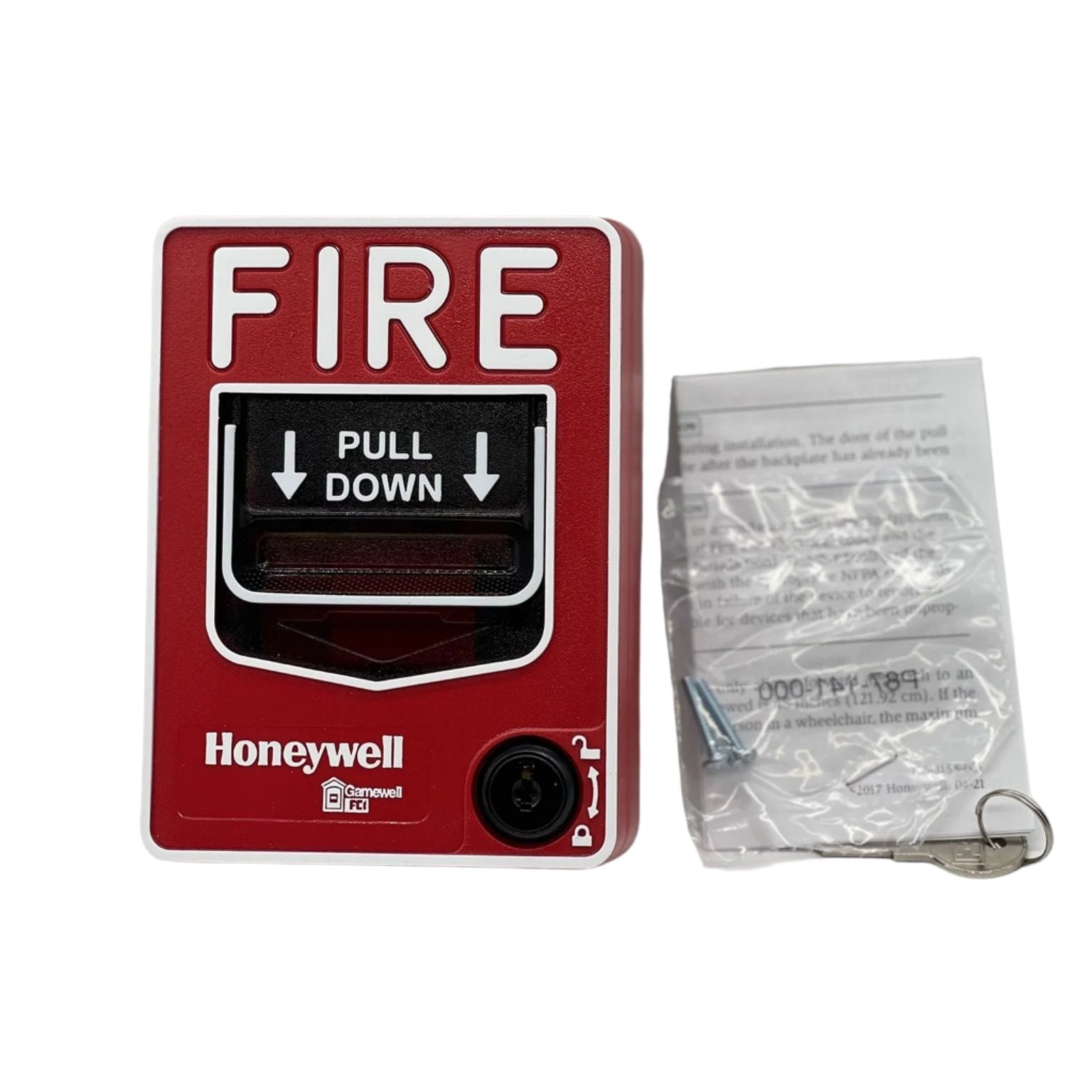

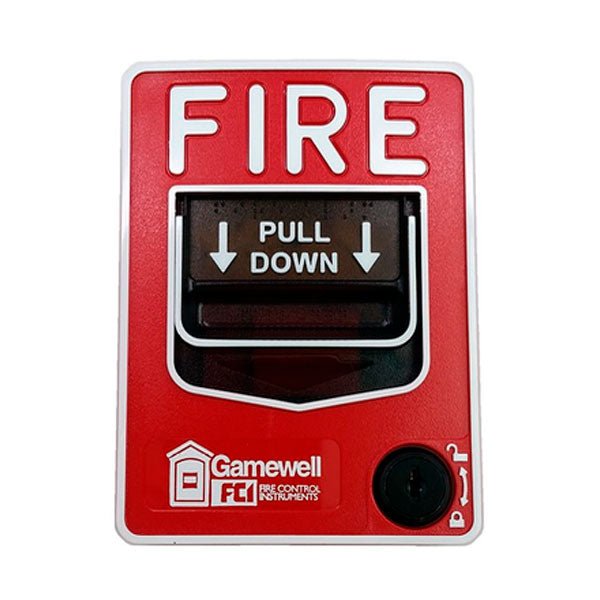

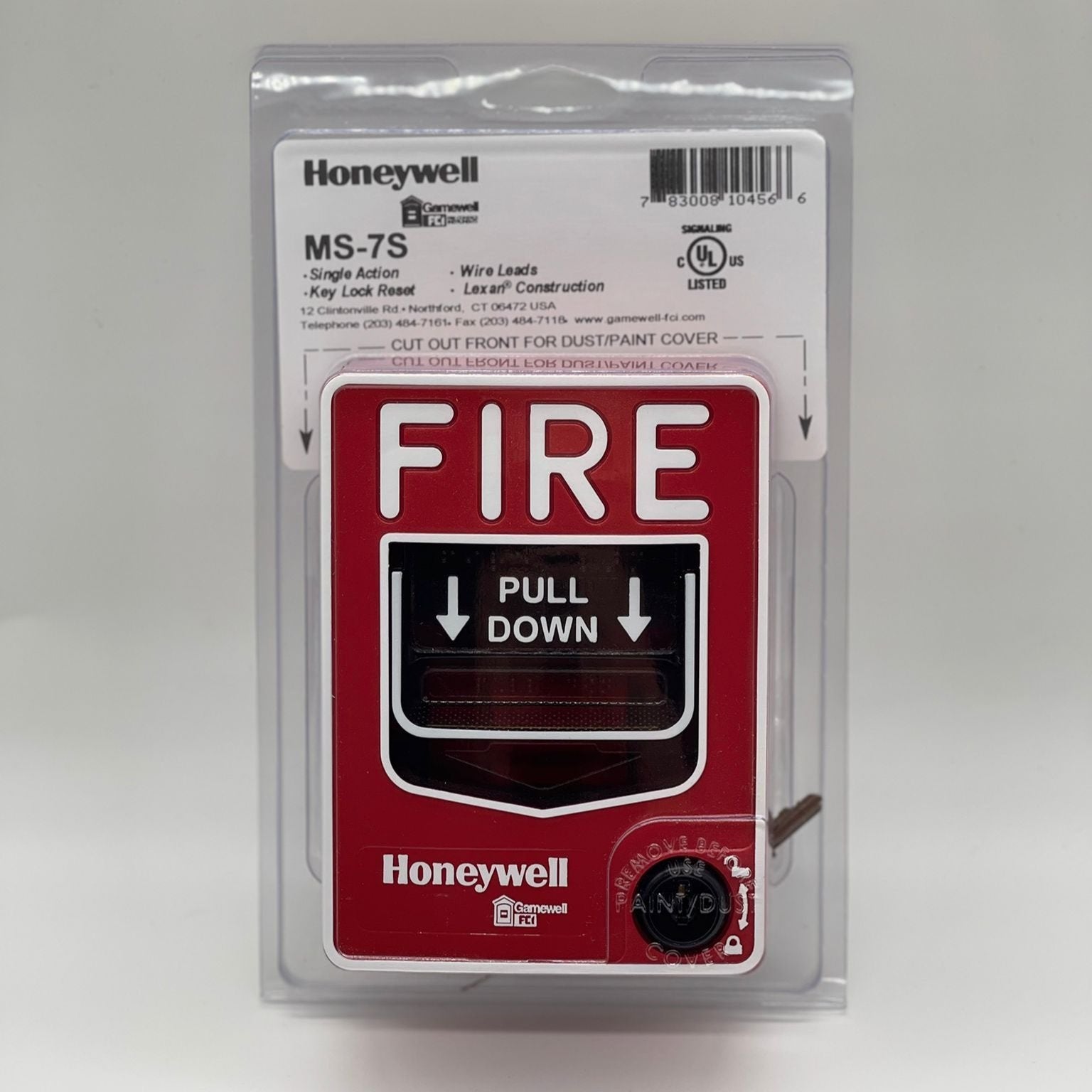

Gamewell-FCI MS-7S — single action manual fire alarm pull station for conventional control panels.
The MS-7S is the single action, conventional member of the MS-7 Series. One pull operates a set of single pole contacts wired into an initiating device circuit, so it works with any UL listed conventional panel rather than reporting an address. Operating instructions and Braille text are moulded into the handle, and its tumbler lock is keyed alike with Gamewell-FCI panels.
- Connects by wire leads, not the screw terminals used on the double action MS-7
- Single pole contacts rated 0.25 amps at 30 VAC/VDC resistive
- Complies with the ADA 5 lb maximum pull force
- Lexan housing, 5 5/8 " H × 4 1/4 " W × 1 1/4 " D
- Surface or semi-flush on a double-gang or 4 in. square box
- Designed to comply with UL 864 9th Edition
The MS-7 is the double action conventional station and the MS-7SP adds Spanish text. MS-7AF and MS-7ASF are the Velociti addressable stations. Note the MS-7LR and MS-7LRA in the same family are agent release stations, not fire alarm stations. The outdoor listed station is the MS-7LOB.
