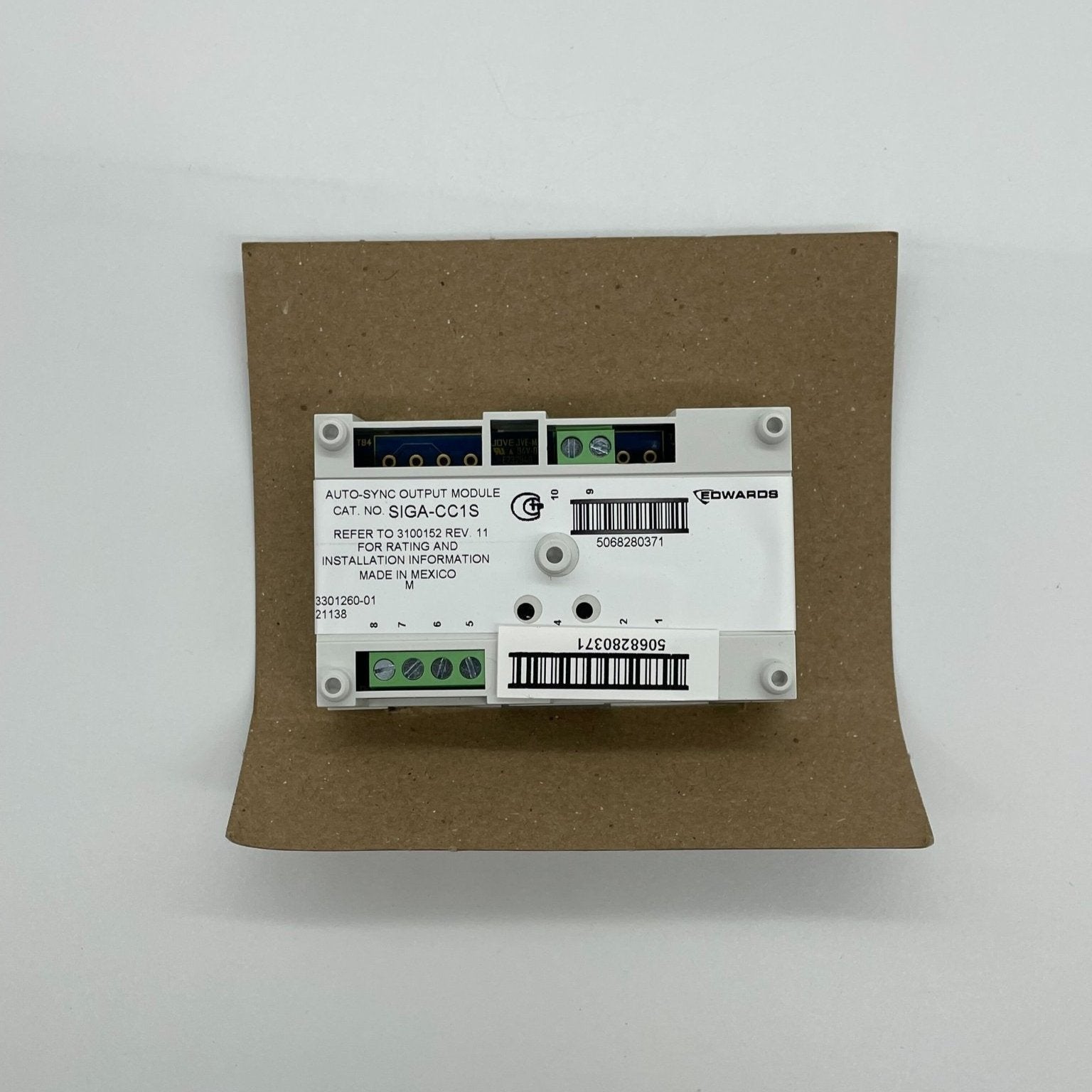

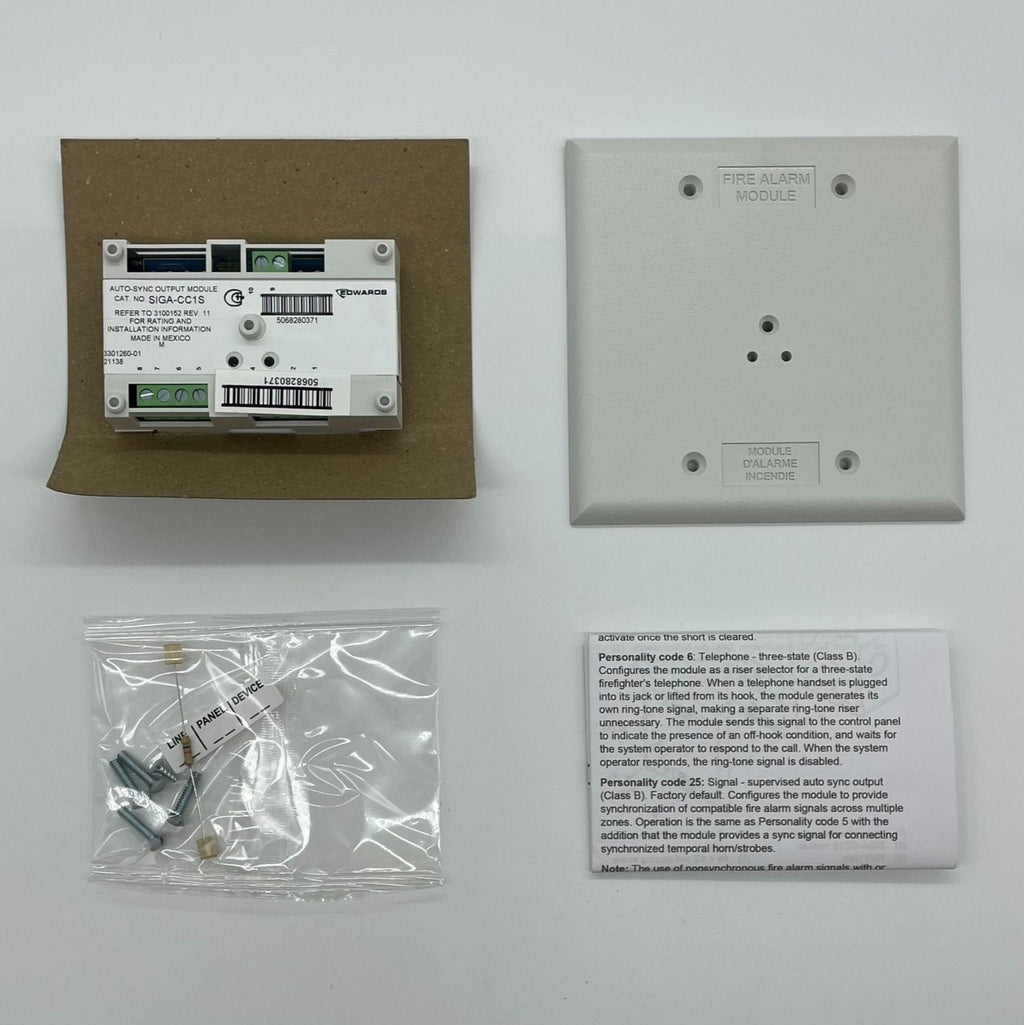

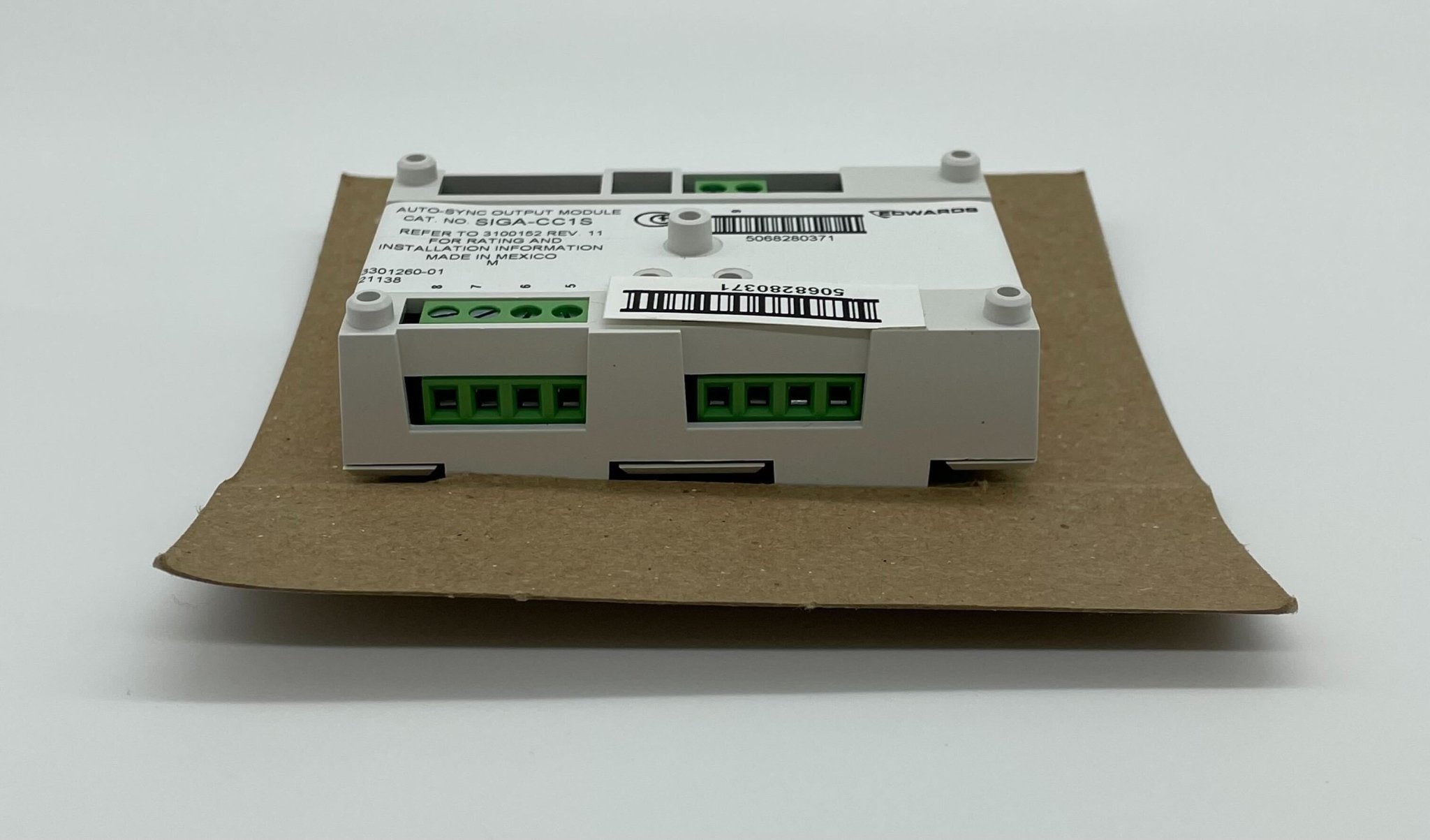

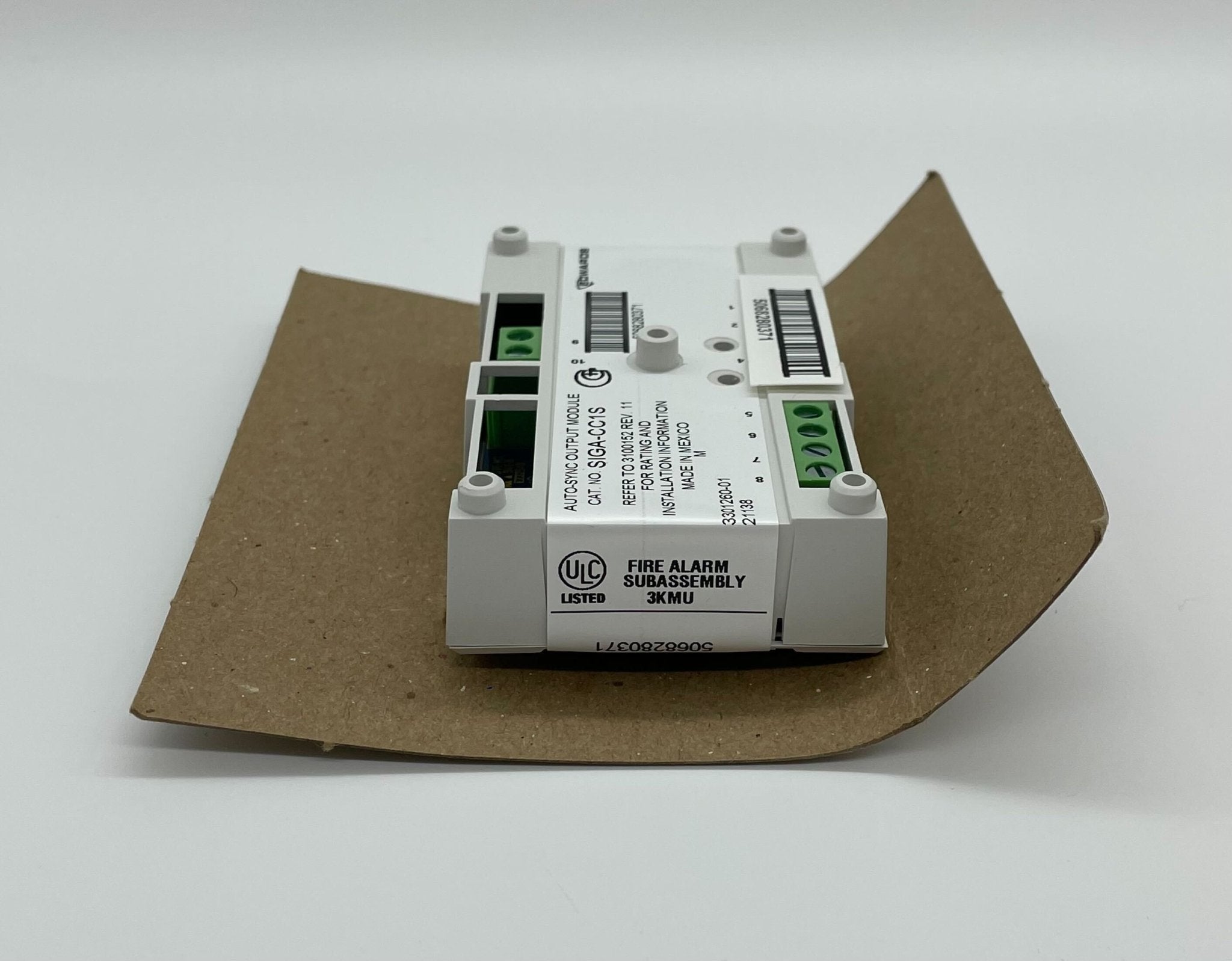

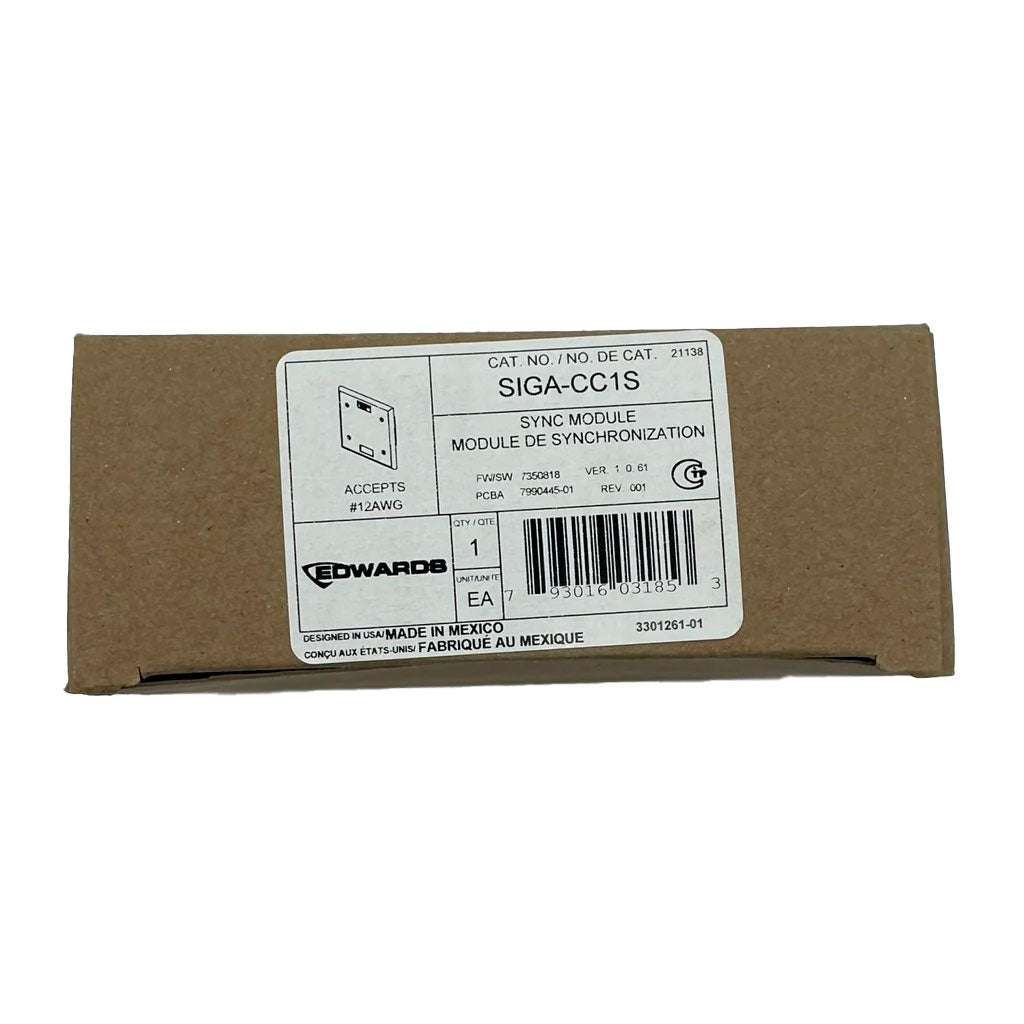

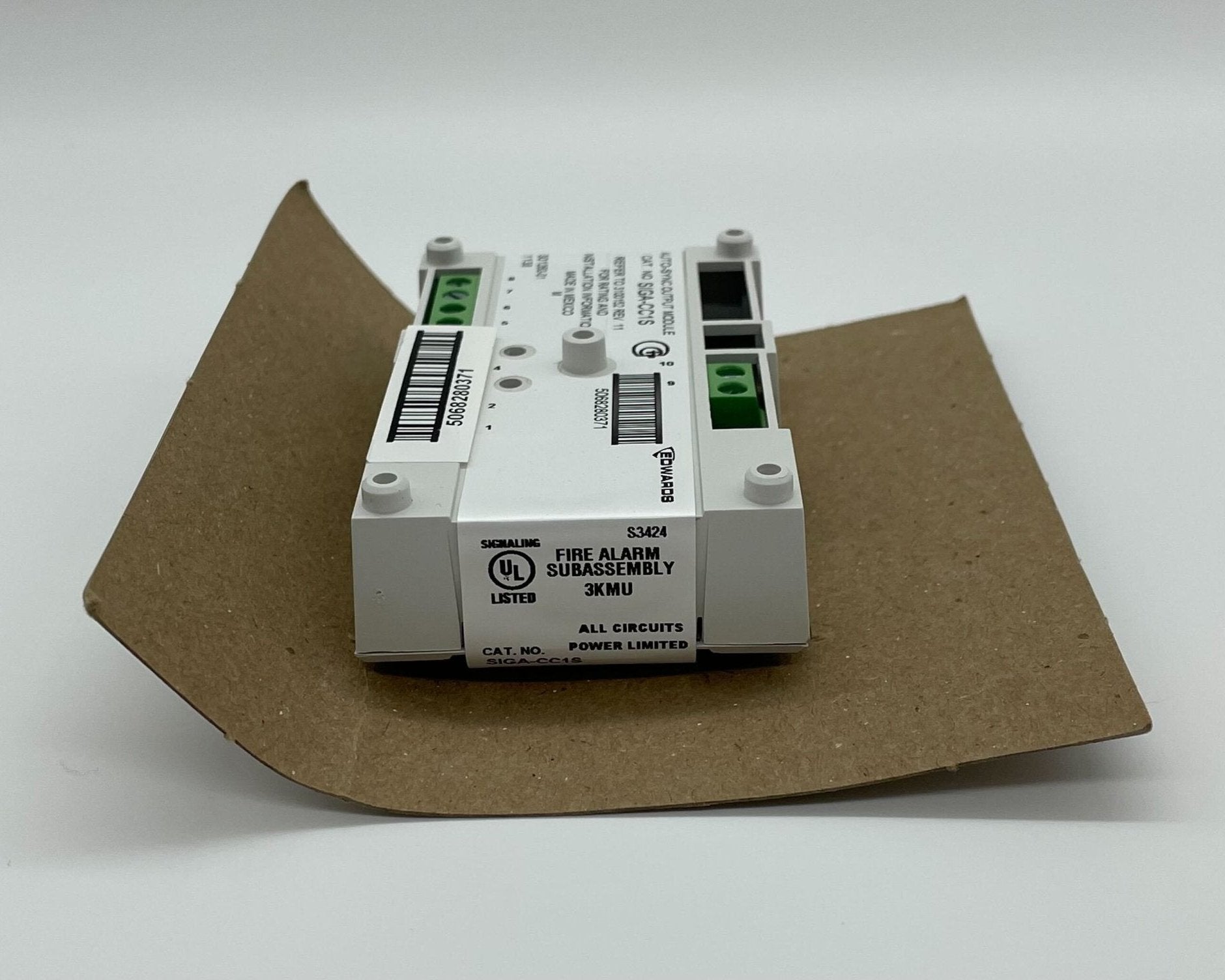

Edwards SIGA-CC1S Synchronization Output Module
The Edwards SIGA-CC1S is an addressable synchronization output module (intelligent analog device) for Edwards Signature series loops. It provides a UL 1971-compliant auto-sync output for visual signals, works as a signal riser selector for audible signals, and includes a built-in ring-tone generator for telephone circuits.
The module connects a supervised Class B output circuit to polarized 24 VDC power inputs for audible and visible signal appliances, or to 25 and 70 VRMS inputs for audio evacuation speakers and firefighter telephones. The output circuit is monitored for open or shorted wiring. The module mounts in a two-gang box, which makes it well suited to locations where only one module is required.
Features
- UL 1971-compliant auto-sync output for visual signals
- Signal power riser selector for audible signals
- Built-in ring-tone generator for telephone circuits
- Supervised Class B output circuit, monitored for open and short
- Module address is set from the loop during system configuration
Specifications
| Device type |
Intelligent analog addressable synchronization output module |
| Power inputs |
Polarized 24 VDC (audible/visible appliances) or 25 and 70 VRMS (audio evacuation speakers and firefighter telephones) |
| Operating voltage |
15.2 to 19.95 VDC (19 VDC nominal) |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity |
0 to 93% RH |
| Mounting |
North American two-gang box, 2-1/2 in. (64 mm) deep; or 4 in. square box, 1-1/2 in. (38 mm) deep, with two-gang cover and SIGA-MP mounting plate |
| Listings |
UL, ULC, CSFM, MEA |
Compatibility
The SIGA-CC1S works with EST3, EST3X and iO Series control panels. Use it with a Signature Loop Controller under EST3 version 2.0 or higher. For surface mounting, Edwards lists the 27193-26 white two-gang surface mount box.
Specifications taken from the Edwards data sheet E85001-0543, "Synchronization Output Module." Manufacturer specifications are subject to change without notice.
