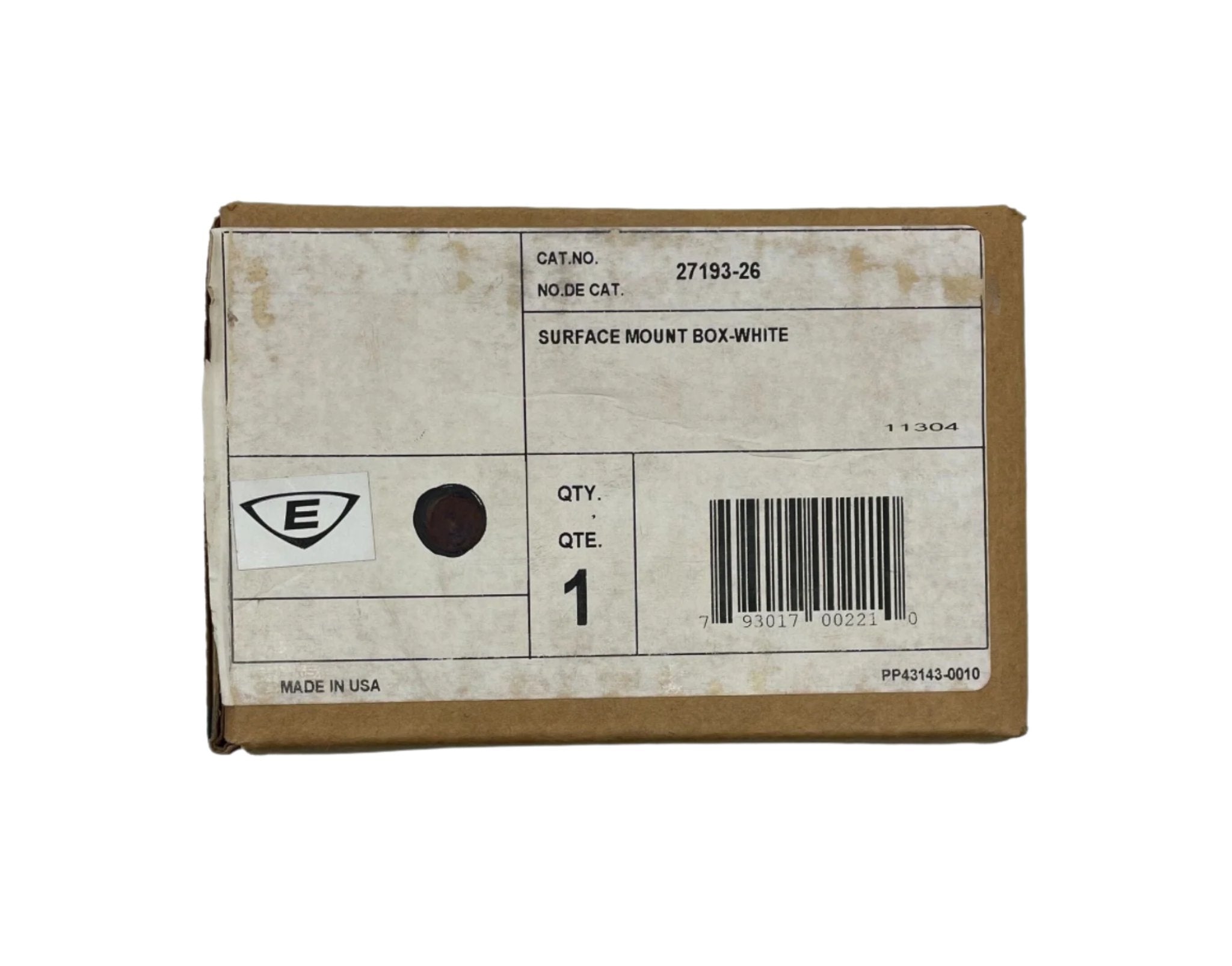

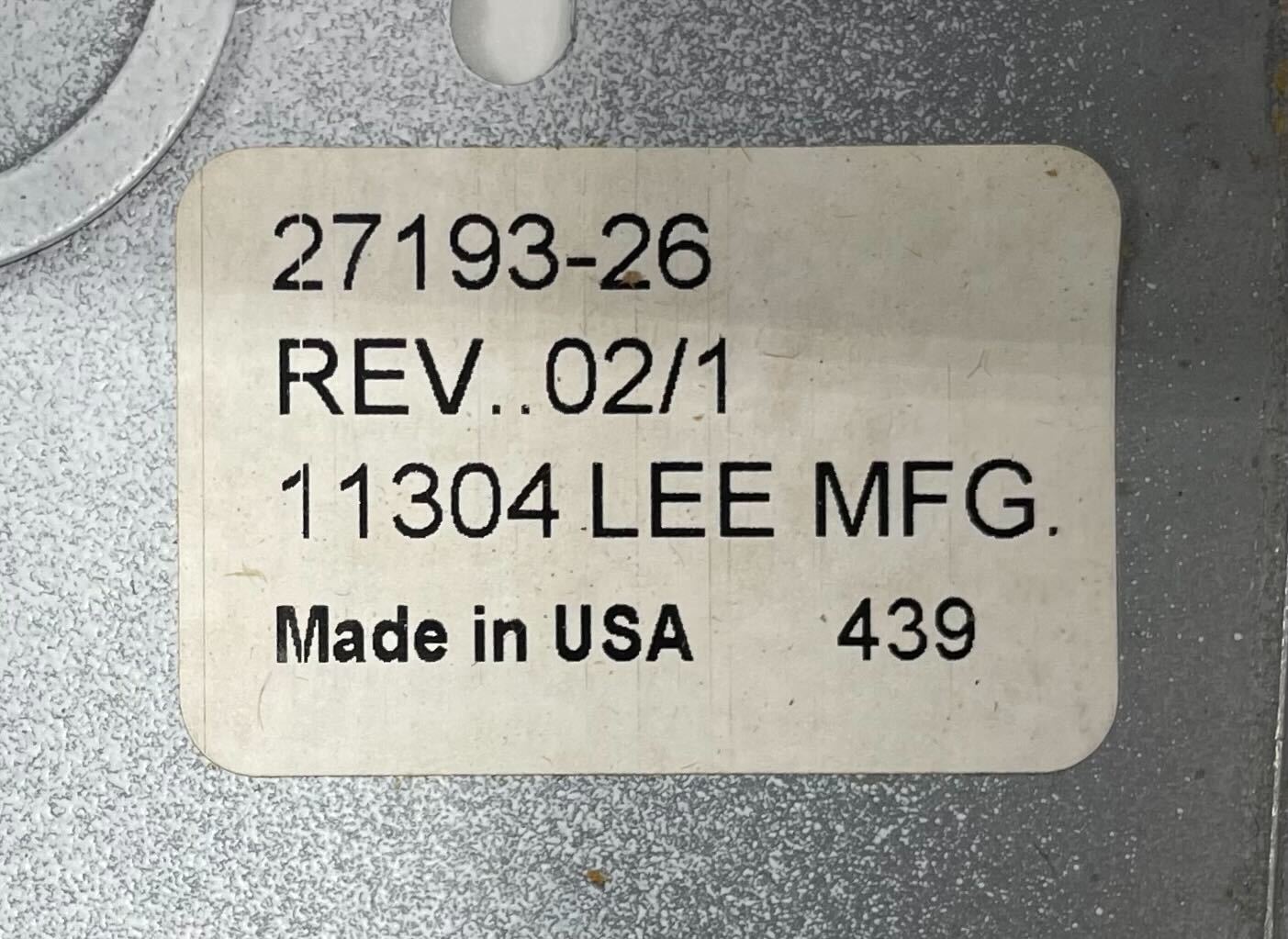

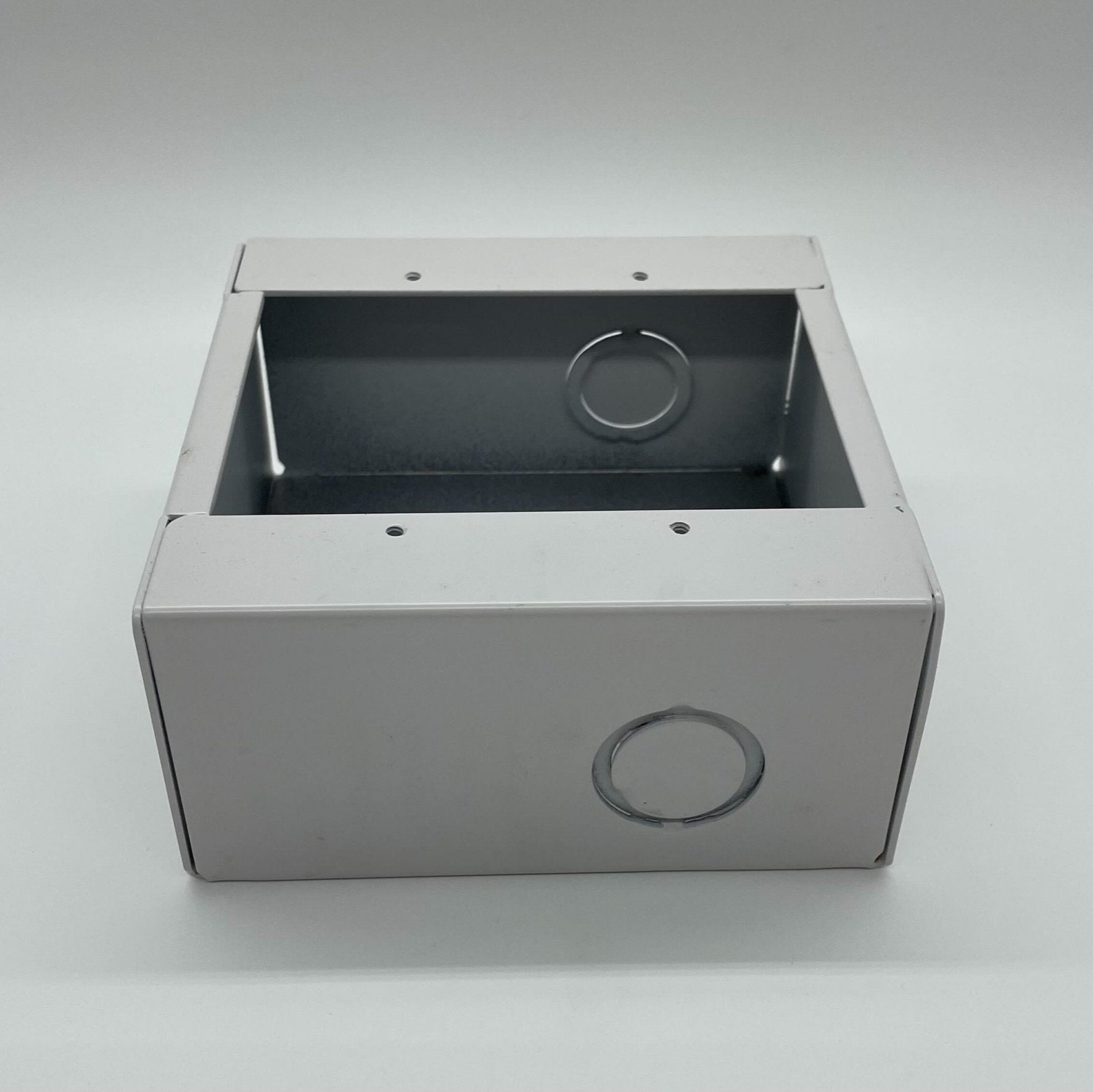

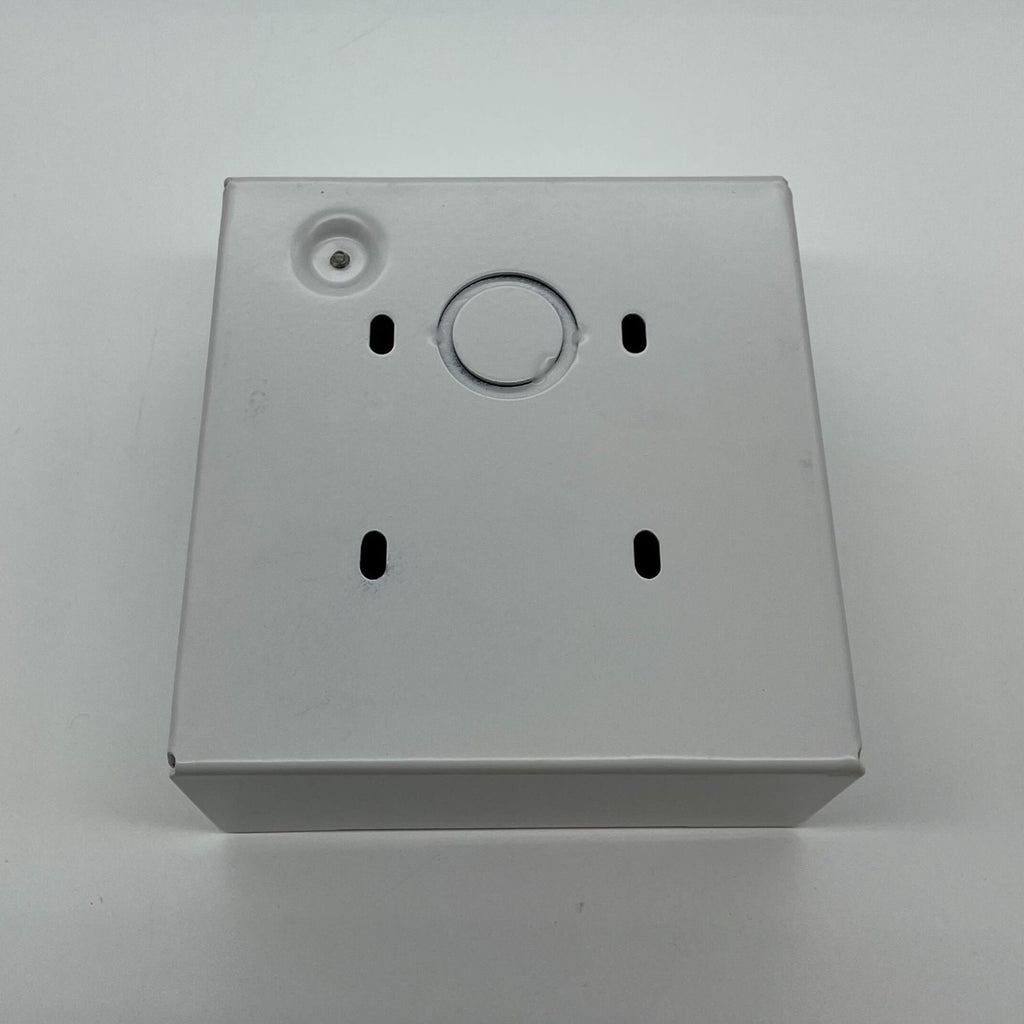

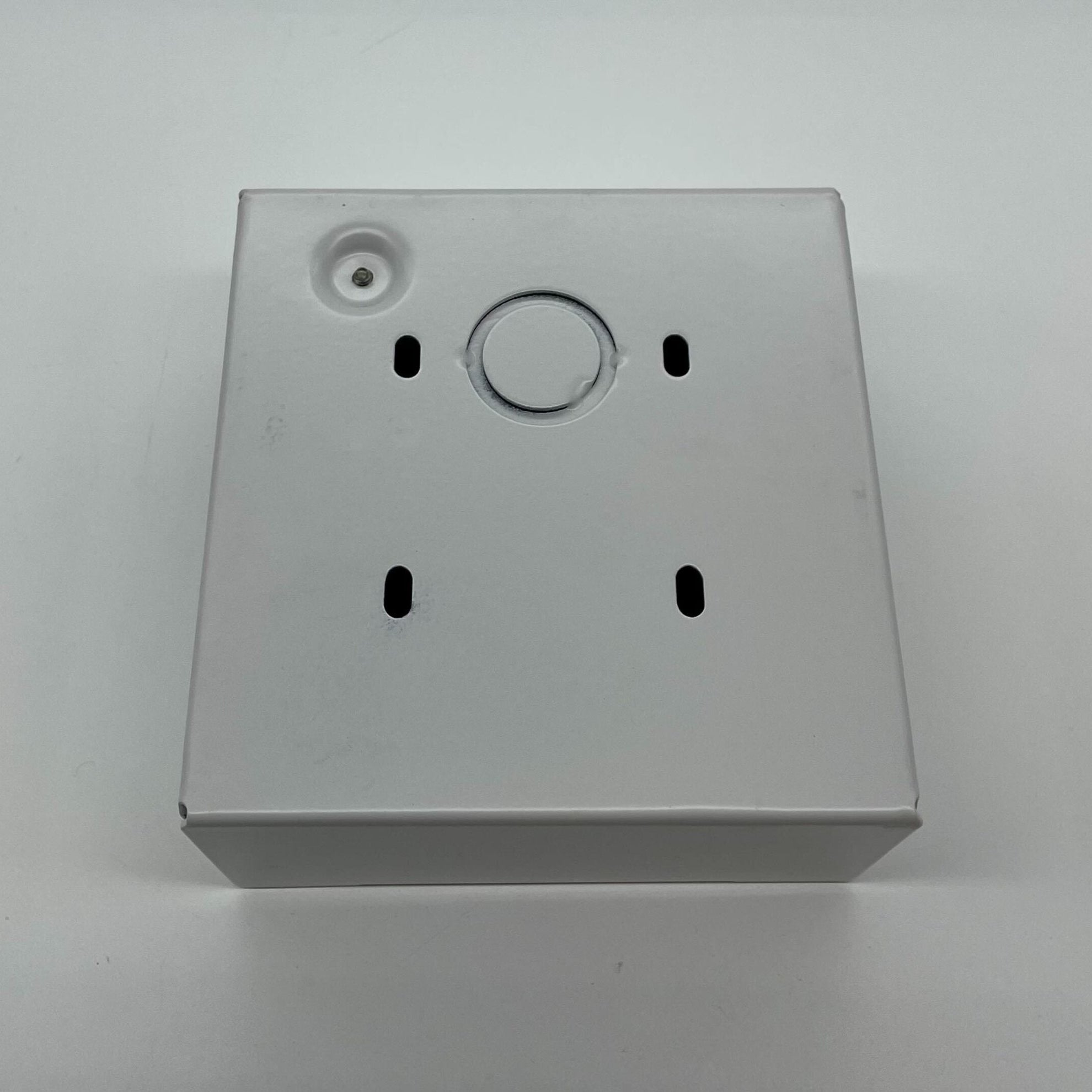

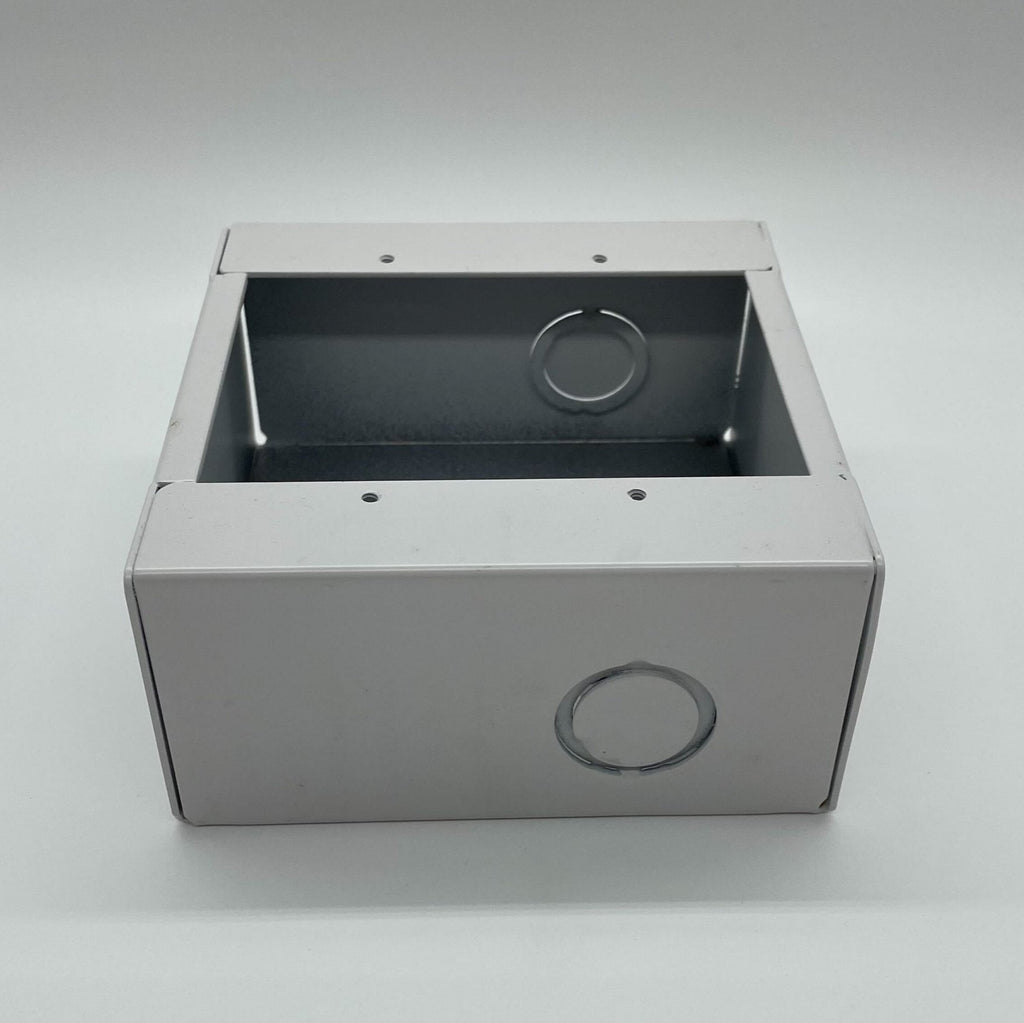

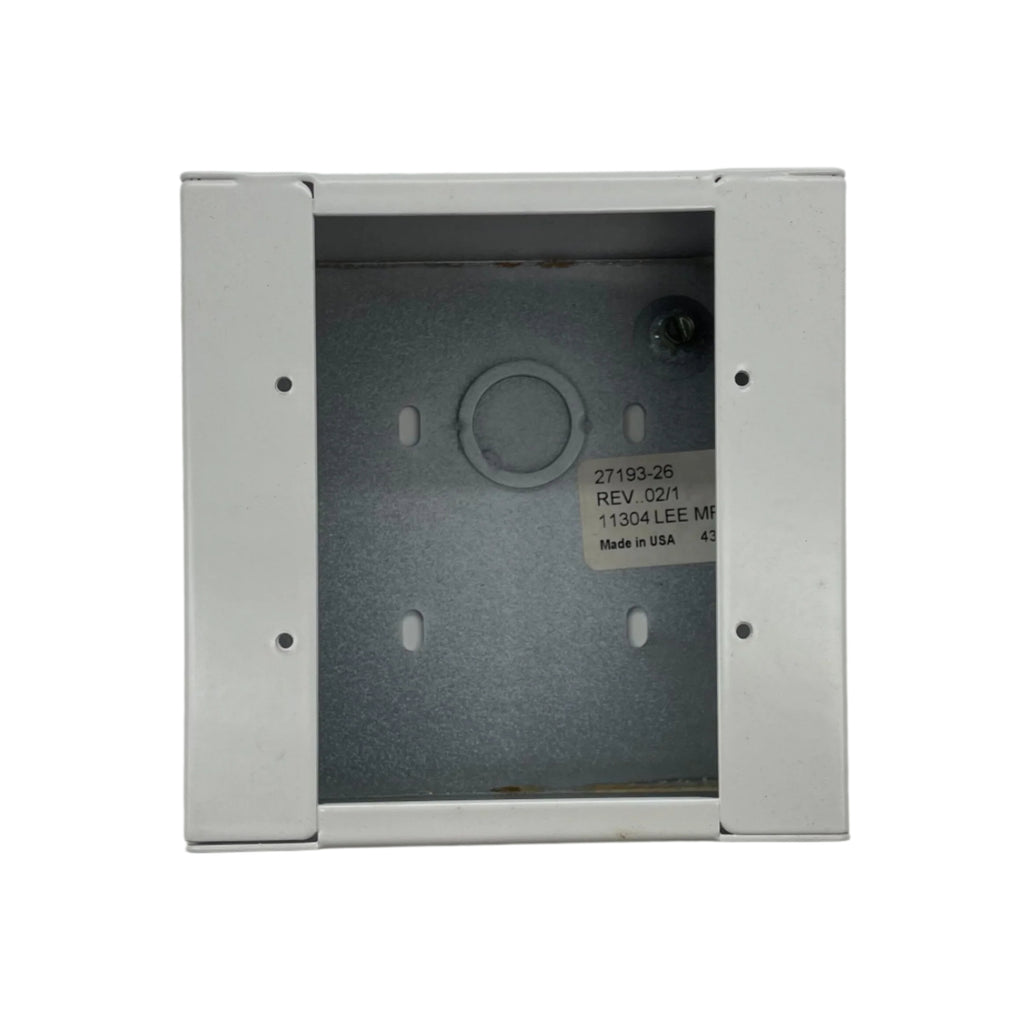

Edwards 27193-26 Surface Mount Box - Indoor, White, 2-Gang
SIGA-CC1/MCC1 Single Input Signal Modules and SIGA-CC2/ MCC2 Dual Input Signal Modules are part of EDWARDS's Signature Series system. They are intelligent analog addressable devices used for connecting, upon command from the loop controller, supervised Class B signal or telephone circuits to their respective power inputs. The power inputs may be polarized 24 Vdc to operate audible and visible signal appliances or 25 and 70 VRMS to operate audio evacuation speakers and firefighter's telephones. The actual operation of the SIGA-CC1/MCC1 and SIGA-CC2/ MCC2 is determined by the “personality code” selected by the installer. It is downloaded to the module from the Signature loop controller during system configuration. The SIGA-CC1 and SIGA-CC2 mount to standard North American two-gang electrical boxes, making them ideal for locations where only one module is required.
Key Features
- Single and Dual input (riser) select Use for connecting supervised 24 Vdc Audible/Visible signal circuits, or 25 and 70 VRMS Audio Evacuation and Telephone circuits to their power inputs
- Ring-tone generator When configured for telephone circuits, the SIGA-CC1 generates its own ring-tone signal eliminating the need for a separate ring-tone circuit
- Plug-in (UIO) or standard 2-gang mount UIO versions allow quick installation where multiple modules are required. The 2-gang mount version is ideal for remote locations that require a single module
- Automatic device mapping Signature modules transmit information to the loop controller regarding their circuit locations with respect to other Signature devices on the wire loop
- Electronic addressing Programmable addresses are downloaded from the loop controller, a PC, or the SIGA-PRO Signature Program/Service Tool; there are no switches or dials to set
- Ground fault detection by address Detects ground faults right down to the device level. Signal Modules SIGA-CC1, SIGA-MCC1, SIGA-CC2 & SIGA-MCC2 SIGA-CC SIGA-MCC MEA S3424
