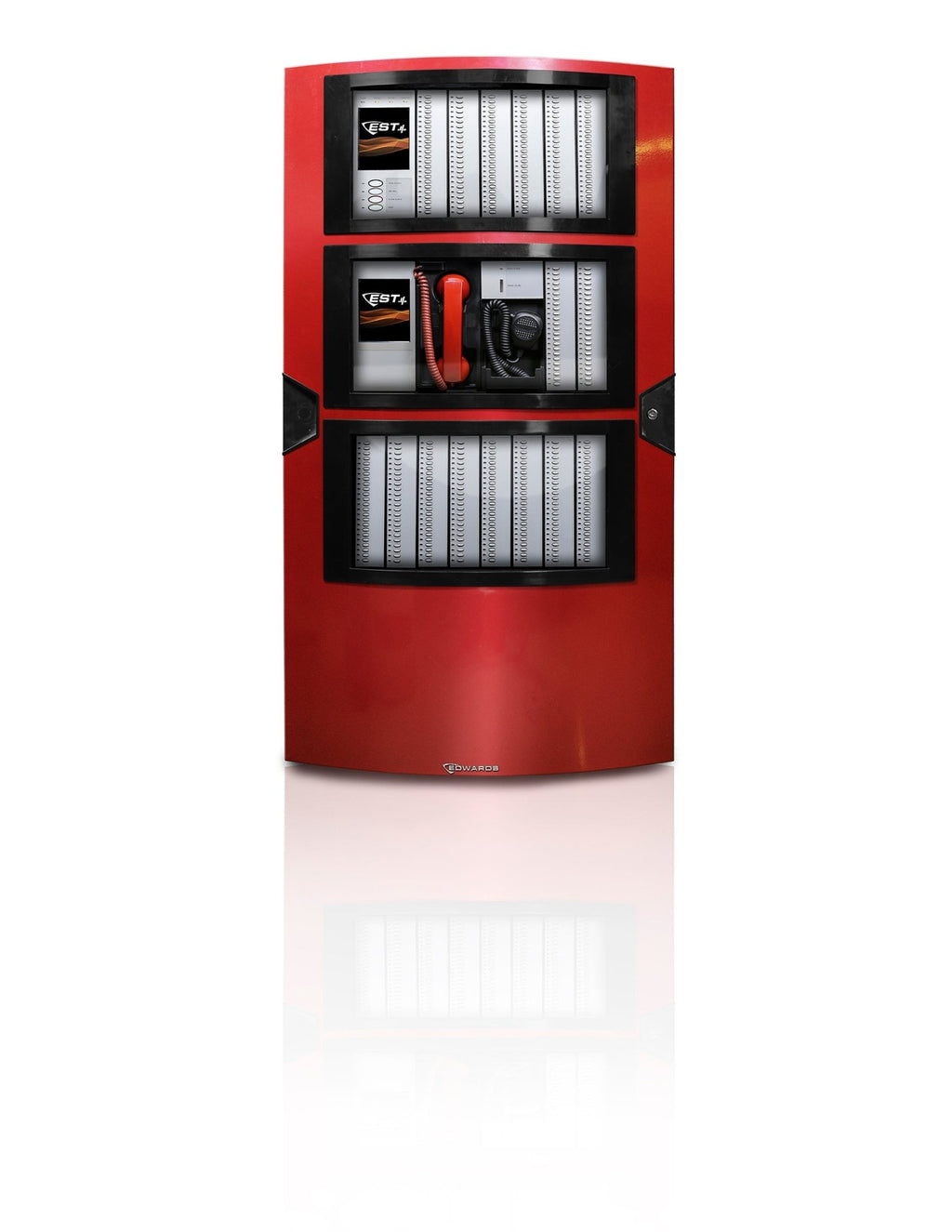

4-CAB24DRL is an Edwards EST4 door assembly with a red outer door and a black inner door providing 24 user interface spaces. It mounts to the 3-CAB21B wallbox, the largest EST4 lobby enclosure backbox. The inner door holds the control display modules and acts as a deadfront over field wiring; the door can be hinged on the left or right.
Specifications
| Outer door |
Red, contoured, with viewing window |
| Inner door |
Black, 24 user interface spaces |
| Mounts to |
3-CAB21B backbox |
| Hinging |
Left or right hand |
| Material |
14-gauge rolled steel (lobby enclosure doors and wallboxes) |
| Shipping weight |
65.0 lb (29.48 kg) |
| Listings |
UL 864 and ULC-S527 (enclosures and doors) |
Compatibility and installation notes
- Backbox ordered separately: 3-CAB21B, semi-flush or surface mount, with space for two 17 Ah batteries and three 3-CHAS7 chassis (21 local rail module spaces).
- EST4 backboxes, doors and chassis are ordered and shipped separately.
- Replacement parts for this size: 4-HNG21 hinge assembly (CAB21) and 4-LOCK2KEY door lock with two keys.
- Door tamper: 4-TAMP fits 3-CAB7B, 3-CAB14B and 3-CAB21B cabinets with 4-CABxxD series doors.
- The inner door provides the 24 spaces for common control and annunciation modules.
Related models
-
4-CAB24DL: same size for 3-CAB21B, metallic bronze outer door.
-
4-CAB24DR (red) and 4-CAB24D (bronze): 24-space doors for the shorter 3-CAB14B backbox.
Documents
Specifications from Edwards data sheet E85014-0004, EST4 Cabinets and Chassis, Issue 2.3. Manufacturer specifications are subject to change.
