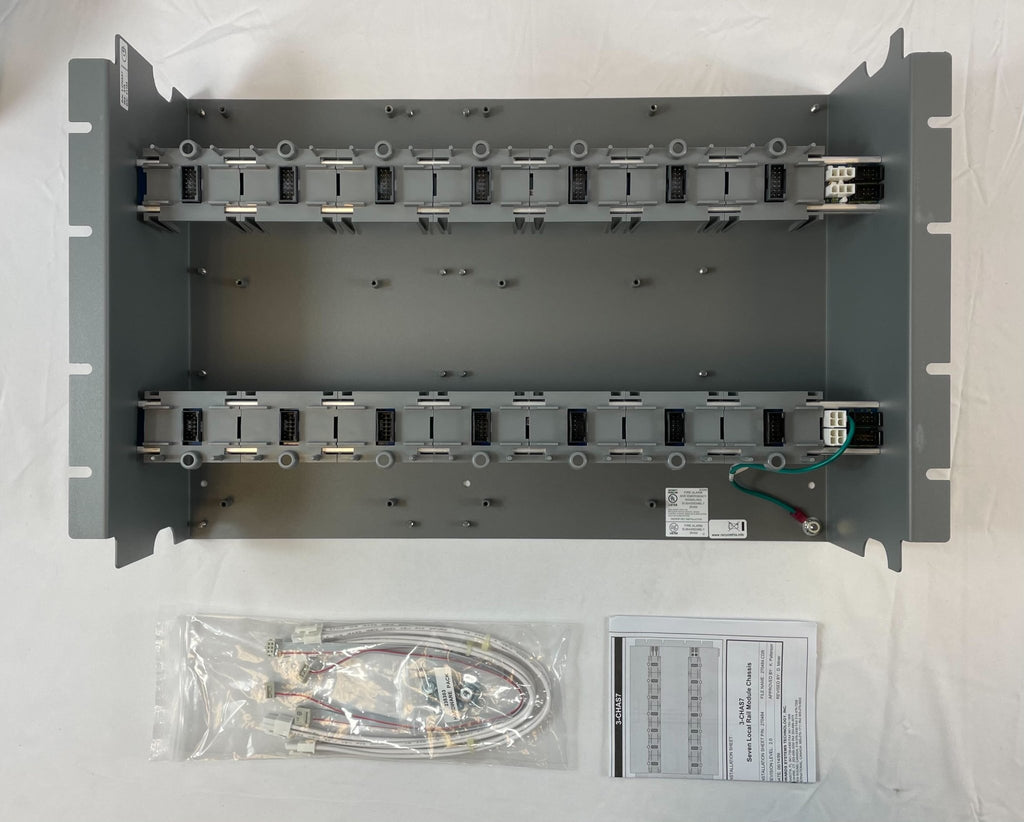

Edwards 3-CHAS7 is the chassis assembly for the EST3 life safety platform. It takes one chassis space in a wallbox and provides mounting, space and power distribution for up to seven local rail modules, up to two power supplies and a half-footprint module.
Specifications
| Module capacity |
7 local rail modules |
| Power supplies |
Up to two |
| Half-footprint module |
One |
| Space used in wallbox |
One chassis space |
| Weight |
8.4 lb (3.8 kg) |
| EN54 version |
Add suffix -E |
| City of Chicago version |
Add suffix -CC |
Installation notes
- Installs in EST3 lobby enclosures: the 3-CAB7 holds one chassis assembly, the 3-CAB14 holds two and the 3-CAB21 holds three.
- Also fits EST3 remote closet cabinets, which hold one to three chassis assemblies.
- The FSB-BRKT2 mounting bracket lets an FSB-PC2 communications bridge mount on the side of a 3-CHAS7.
Installers use the 3-CHAS7 to populate EST3 control panel enclosures with CPU, amplifier, common control and annunciation modules.
