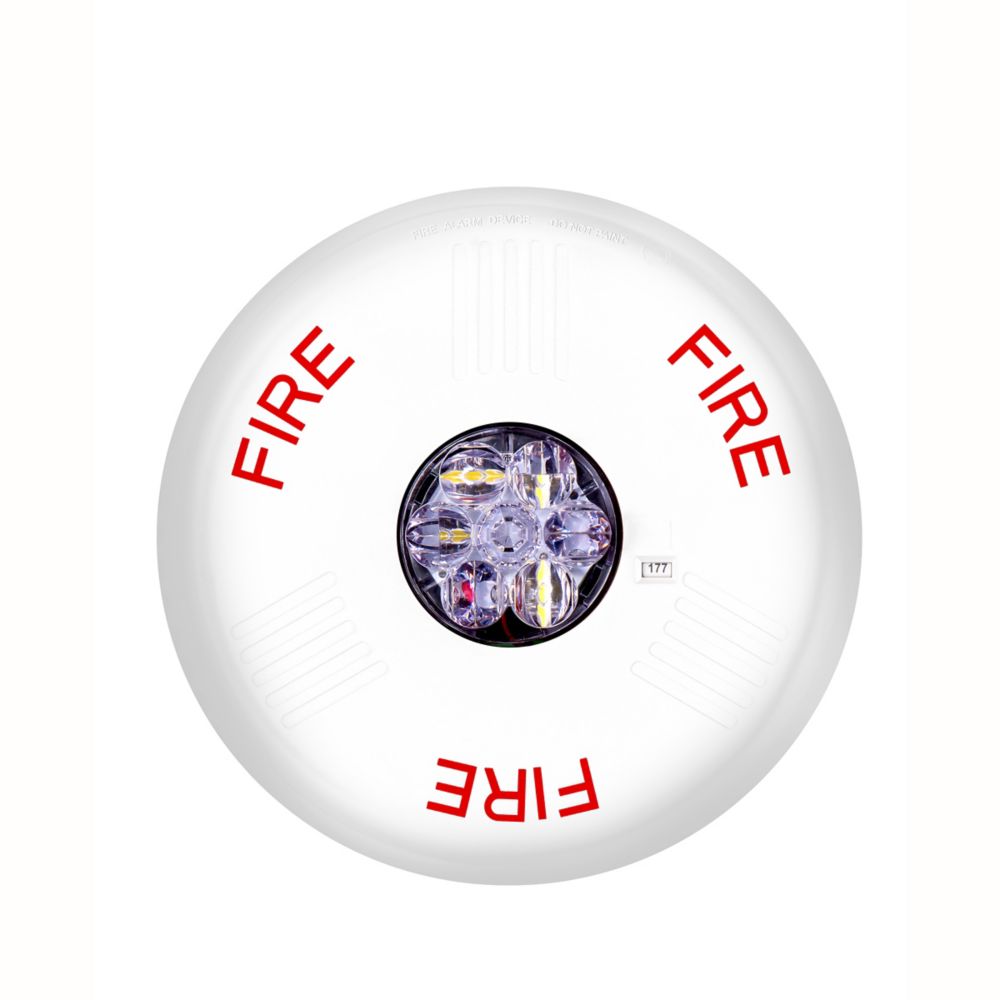

ELSTWC-CAR12 is a carton of 12 Eaton Wheelock Eluxa ELSTWC LED strobes: ceiling mount, white housing, FIRE lettering, clear lens, 24 V, indoor. Each strobe has six field-selectable candela settings and is used as a visible notification appliance on fire alarm notification appliance circuits.
Specifications
| Part number |
ELSTWC-CAR12 (carton of 12 ELSTWC strobes) |
| Series |
Wheelock Eluxa ELST LED strobe |
| Mounting |
Ceiling, indoor only |
| Housing / lettering / lens |
White / FIRE / clear |
| Candela settings |
15, 30, 75, 110, 150, 177 cd (field selectable) |
| Regulated voltage range |
16.0 to 33.0 VDC/VFWR (24 V models) |
| UL max current at 24 VDC (ELSTC) |
0.017 A (15 cd), 0.023 A (30 cd), 0.053 A (75 cd), 0.079 A (110 cd), 0.110 A (150 cd), 0.161 A (177 cd) |
| Flash rate / duration |
1 flash per second minimum over the regulated voltage range; 20 ms LED flash |
| Wire connections |
IN/OUT screw terminals, #12 to #18 AWG |
| Dimensions (ceiling) |
6.27 in. diameter x 1.69 in. deep |
| Weight (ceiling) |
0.55 lb |
| Operating environment |
32°F to 122°F (0°C to 50°C), maximum humidity 93% |
| Listings and compliance |
UL 1971, UL 1638, ULC-S526, CSFM, FCC Part 15, ICES, RoHS; meets NFPA 72 2016 20 ms flash duration requirement |
Compatibility and installation notes
- Ceiling mounting to LSPKBB-C backboxes, 4 in. square or 4 in. octagonal boxes, 1-1/2 in. or 2-1/8 in. deep. A hinged mounting plate is included and allows pre-wiring and pre-testing.
- Synchronizes with Wheelock DSM sync modules, PS power supplies or SAFEPATH products using the Wheelock sync protocol.
- UL/ULC listed as compatible with control panels and accessories determined compatible with Exceder LED3 and Wheelock RSS strobe-based products; can share a zone and field of view with RSS and Exceder LED3 strobes.
- Candela is set with a finger slide switch; no tools needed.
Related models
Documents
Specifications from Eaton data sheet TD450157EN (June 2025) and the Eaton ELSTWC-CAR12 product page. Manufacturer specifications are subject to change.
