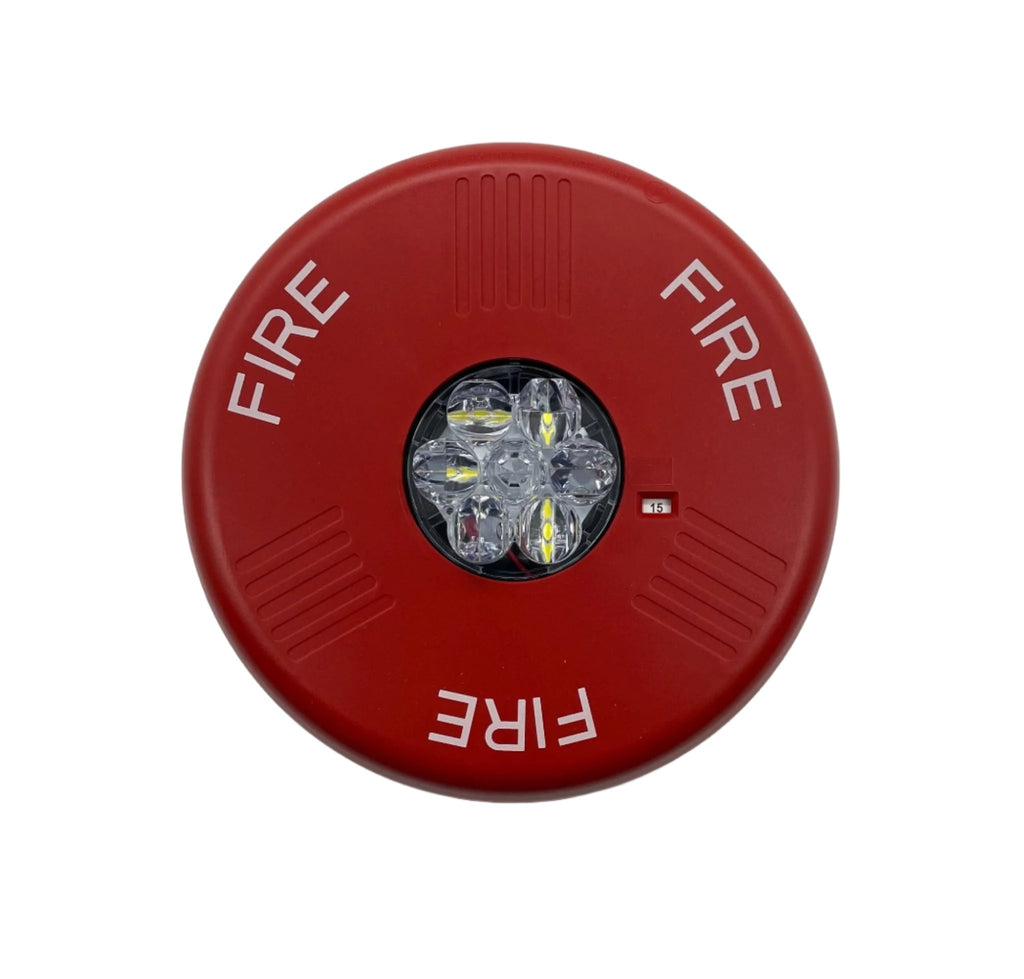

Eaton Wheelock ELSTRC — Eluxa LED strobe, ceiling mount, red housing with a clear Lexan lens lettered FIRE.
Eluxa replaced xenon flashtubes with LED elements, cutting circuit current while still meeting the 20 millisecond pulse duration NFPA 2016 requires. ELSTRC is the strobe-only, ceiling-listed member of the family, for spaces where audibility is covered by separate horns or speakers. It flashes once per second, unsynchronised or synchronised through a DSM module.

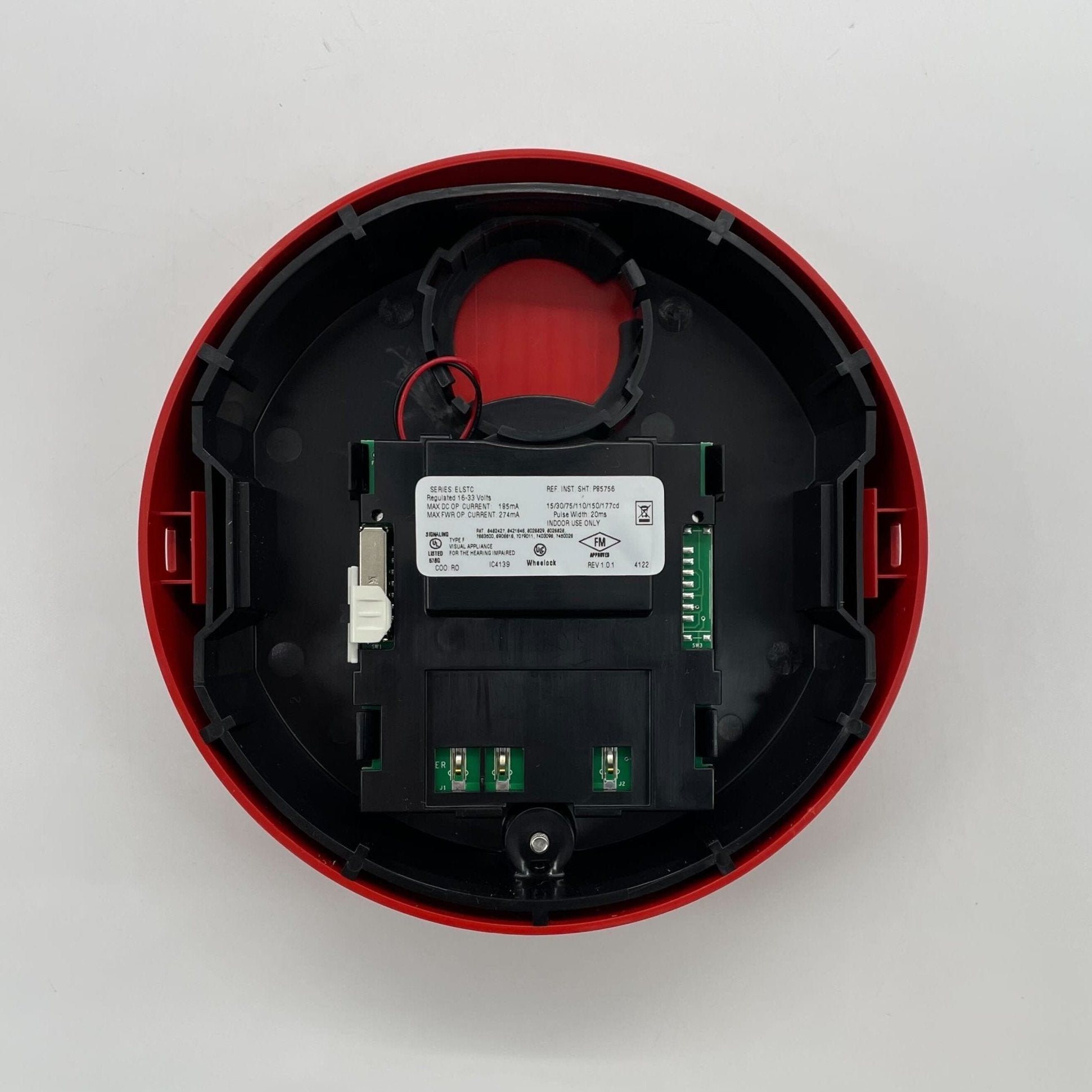

- Six field-selectable candela settings, 15, 30, 75, 110, 150 and 177 cd, set from the rear

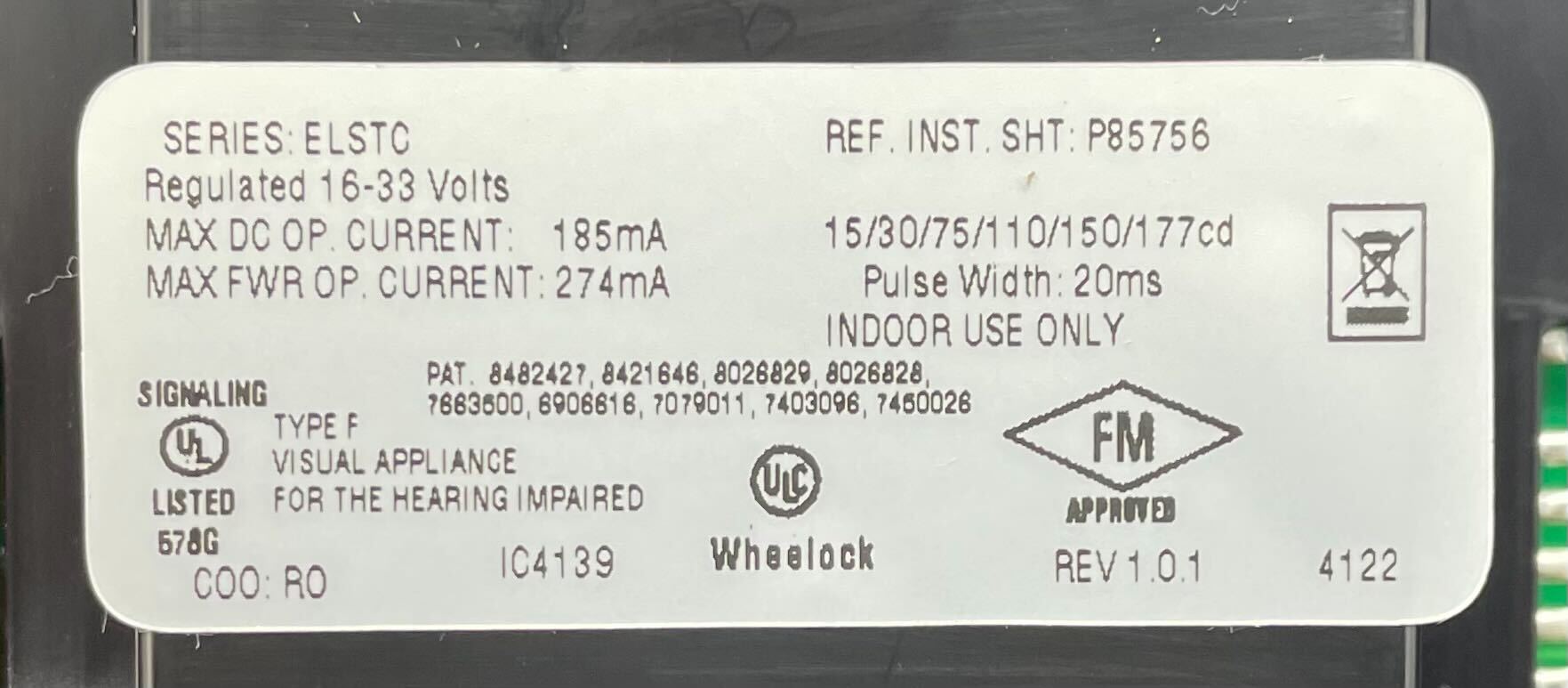

- Regulated 24 V DC or FWR, 16.0 to 33.0 V
- Current 0.022 A at 15 cd to 0.185 A at 177 cd on DC; 0.036 A to 0.274 A on FWR
- Certified to UL 1971, UL 1638 and CAN/ULC-S526-16
- Indoor only, 32 to 122 °F; 6.25 in. diameter, 0.542 lb
- Maximum line resistance 35 Ω, up to 105 Eluxa or LED3 appliances per circuit
Check the mounting before the colour: the wall-mount ELSTR carries a different candela set, 15, 30, 75, 110, 135 and 185 cd. ELHSC adds a horn in the same ceiling housing, ELHNC is the horn alone, and ELSTC-A is the amber version.
