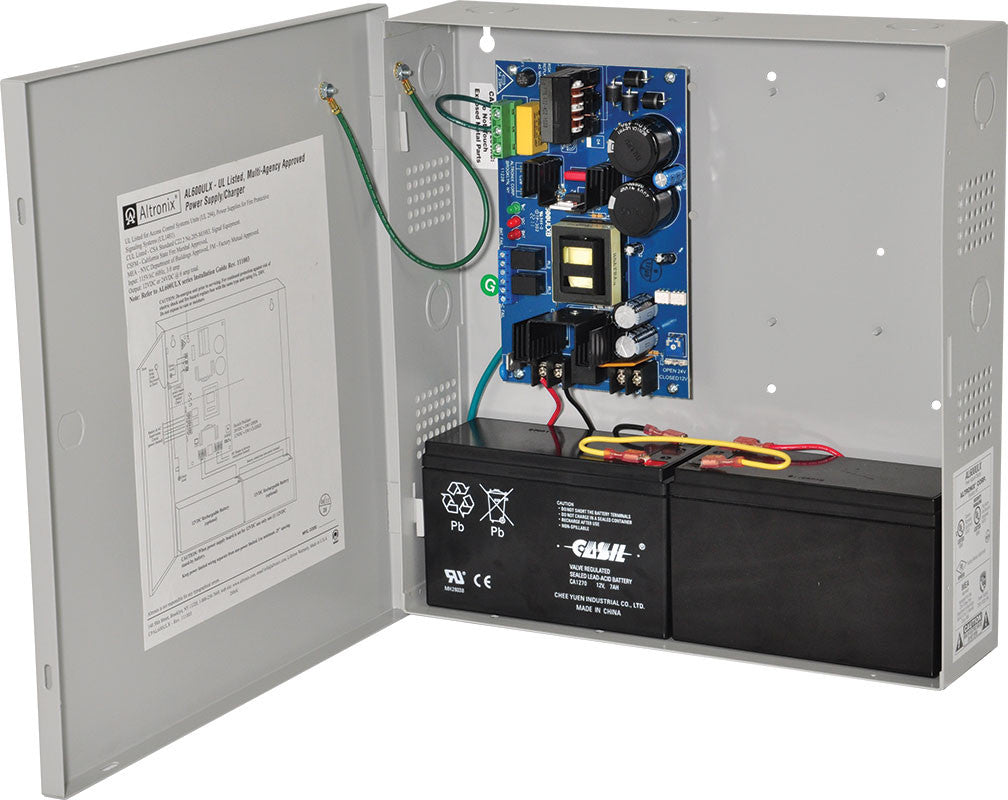

Altronix AL600ULX is a 6 A power supply and battery charger in a gray cabinet, selectable between 12 VDC and 24 VDC output, with 115 VAC, 60 Hz input.
The product data places it in a BC300 enclosure and describes a non-power-limited output with AC and battery monitoring.
Features
- Output selectable as 12 VDC or 24 VDC at up to 6 A
- AC and battery monitoring
- Non-power-limited output
- BC300 enclosure, gray cabinet
- UL and cUL certified
Specifications
| Output voltage |
12 VDC or 24 VDC |
| Output current |
6 A |
| Input |
115 VAC, 60 Hz |
| Mounting |
Wall mount enclosure |
| Height |
13.5" |
| Width |
13" |
| Depth |
3.3" |
Compatibility
Related Altronix 6 A supplies on this site:
FAQ
What outputs does the AL600ULX provide?
A selectable 12 VDC or 24 VDC output at up to 6 A. The output is non-power-limited, with AC and battery monitoring.
What enclosure does it ship in?
A gray wall-mount BC300 enclosure, 13.5" H x 13" W x 3.3" D.
