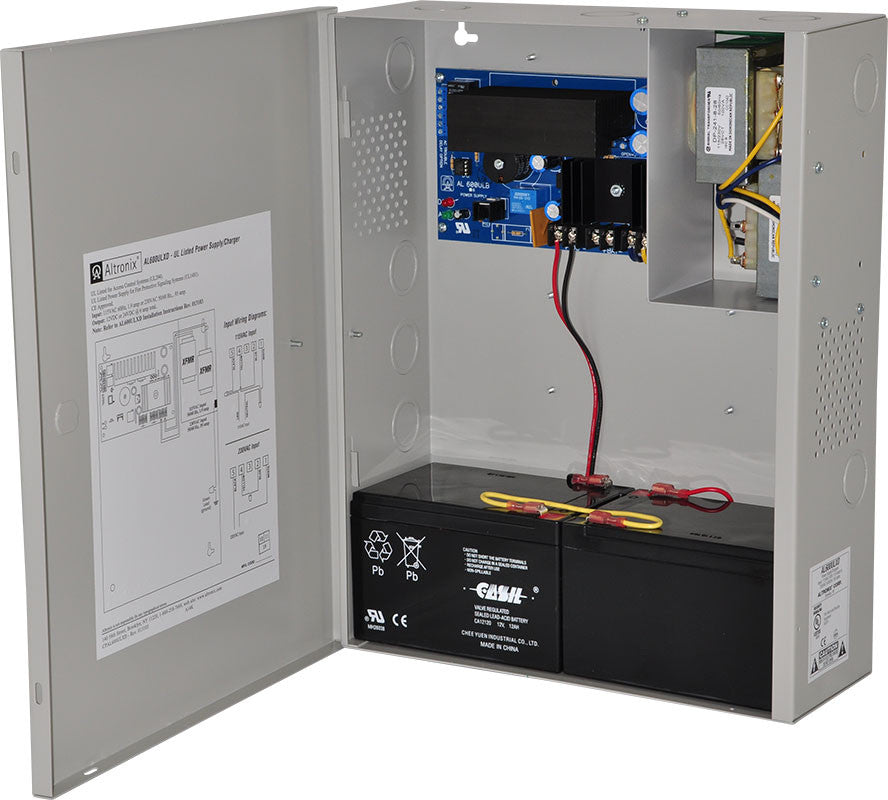

Altronix AL600ULXD is a power supply/charger that converts a 115VAC 60Hz or 230VAC 50/60Hz input into a single 12VDC or 24VDC non power-limited output at 6A. It comes in an enclosure with room for two 12VDC/12AH standby batteries, and switches to the batteries instantly on loss of AC.
The output is filtered and regulated with short circuit and thermal overload protection. Form C contacts report AC failure and low battery, and LEDs show input and DC output status.
Specifications
| Input |
115VAC 60Hz, 1.9A or 230VAC 50/60Hz, 0.95A |
| Output |
12VDC or 24VDC selectable, 6A continuous |
| Protection |
Short circuit and thermal overload |
| Battery charging |
Sealed lead acid or gel; batteries sold separately |
| Supervision |
AC failure and low battery, Form C contacts |
| Certifications |
UL 294 access control, UL 1481 fire protective signaling; CE |
| Enclosure |
15.5 x 12.23 x 4.5 in.; holds two 12VDC/12AH batteries |
| Weight |
12.6 lb (5.72 kg) |
| Operating temperature |
32 to 120 °F (0 to 49 °C) |
| Humidity |
20 to 85% non-condensing |
Related models
-
AL600ULX: 115VAC input version
-
AL600ULXB: 6A board without enclosure
Documents
FAQ
What input voltage does the AL600ULXD accept?
115VAC 60Hz at 1.9A, or 230VAC 50/60Hz at 0.95A.
Is the output power-limited?
No. It provides a single non power-limited 12VDC or 24VDC output at 6A continuous.
Does it come in an enclosure?
Yes. The enclosure measures 15.5 x 12.23 x 4.5 in. and holds up to two 12VDC/12AH batteries, which are sold separately.
What does it report?
AC failure and low battery through Form C contacts.
