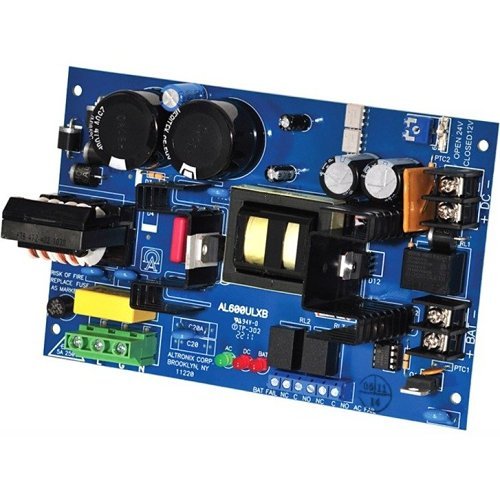

Altronix AL600ULXB — UL certified sub-assembly power supply and battery charger board with a single selectable 12VDC or 24VDC output at 6A.
It converts a 115VAC, 60Hz input into one non power-limited DC output and maintains a standby battery, switching to it instantaneously on loss of AC. Form C contacts report AC failure and battery condition.
- Input 115VAC 60Hz, 3.5A max., fused at 5A/250V
- Single output, 12VDC or 24VDC selectable, 6A continuous, filtered and regulated
- Short circuit and thermal overload protection; the output is non power-limited
- Charges sealed lead acid or gel batteries; batteries sold separately
- UL 294 access control, UL 603 burglar alarm and UL 1481 fire alarm; cUL per CSA C22.2 No.205-M1983
- Board 7.1 × 4.5 × 2 in. (180.3 × 114.3 × 50.8 mm), 0.8 lb., 32 to 120 °F
The separator inside this family is the enclosure and nothing else. AL600ULX is the identical supply factory-installed in a BC300 wall-mount cabinet, described by Altronix in the same words but ending in BC300 Enclosure where this one ends in Board. Order AL600ULX if a cabinet is needed, because this version arrives as a bare board.
Documents
FAQ
Does the AL600ULXB come with an enclosure?
No, it is a bare board. The installation guide lists the BC300, BC400, BC800 (Maximal), Trove1 and Trove2 enclosures for it, and the AL600ULX is the enclosed power supply version.
Is the output power-limited?
No. The 12 or 24VDC output at 6A is non power-limited, so power-limited wiring must be kept separate with at least 0.25 in. spacing.
What batteries does it charge?
Sealed lead acid or gel type batteries, sold separately, at a maximum charge current of 0.7A. Use two 12VDC batteries in series for 24VDC operation; 40AH and 65AH batteries need a separate enclosure.
Can the AC fail report be delayed?
Yes. AC fail reporting is factory set to 30 seconds and can be extended to about 6 hours by cutting the AC Delay jumper.
