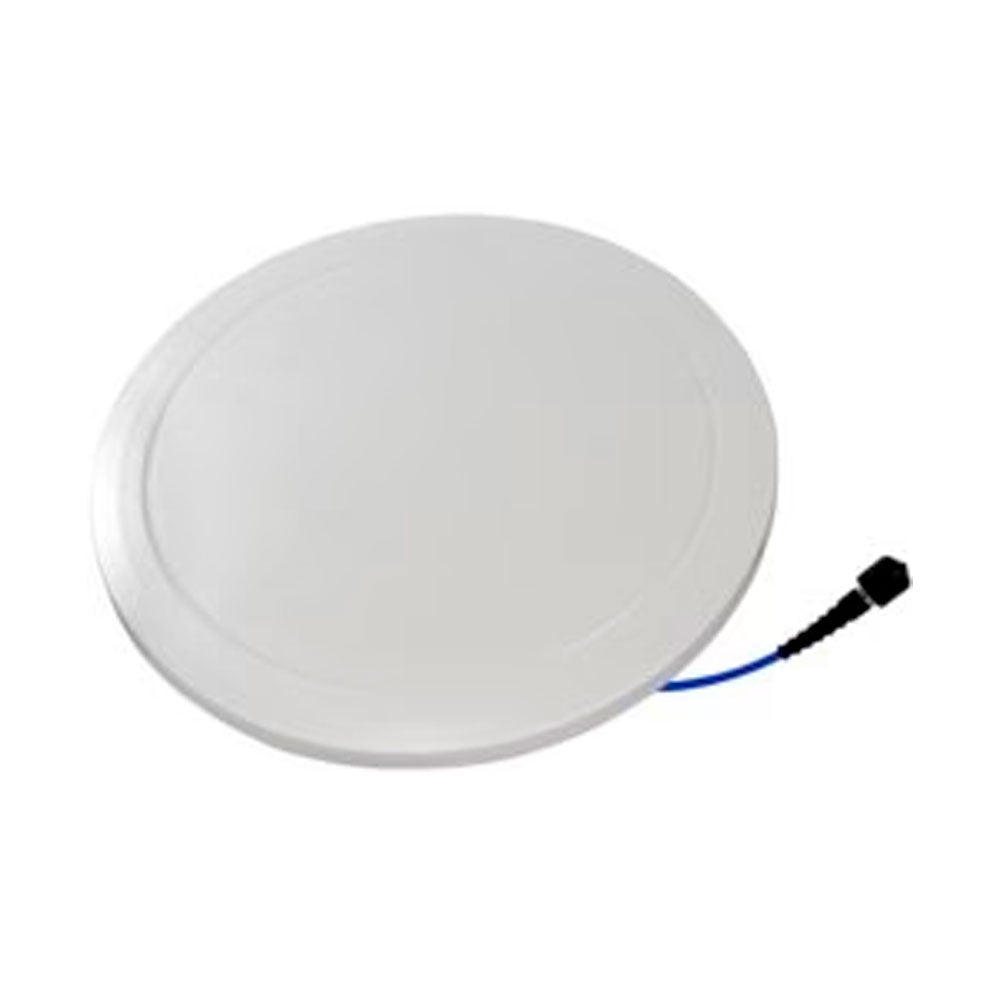

Westell CS03-043-380 380–4000 MHz Omnidirectional, Ceiling Mount, Low Profile Antenna
The CS03-043-380 is a low-profile, ceiling-mount omnidirectional antenna for in-building commercial and public safety coverage. It covers 380-520, 698-960, 1710-2700 and 3300-4000 MHz, which takes in UHF, 700/800 MHz public safety, cellular, AWS and C-Band, and has an N female connector.
Key Features
- Multi-band design from 380 to 4000 MHz, including UHF and CBRS/C-Band
- Slim profile, small footprint
- 360 degree horizontal beamwidth
- Applications: UHF, CBRS, C-Band, GSM, 3G/UMTS, LTE and 5G in-building coverage
- Also sold with a mounting bracket as bundle CS03-043-380-BK
Specifications
| Frequency ranges |
380-520, 698-960, 1710-2700, 3300-4000 MHz |
| Polarization |
Horizontal |
| Horizontal beamwidth |
360 degrees |
| Impedance |
50 ohms |
| Max input power |
50 W |
| Lightning protection |
DC ground |
| Connector |
N female |
| Size |
11 x 0.74 in |
| Weight |
1.21 lb |
| Radome material |
ABS (UV stabilized) |
| Operating temperature |
-40 to 149 F / -40 to 65 C |
Compatible With
- In-building commercial and public safety DAS
