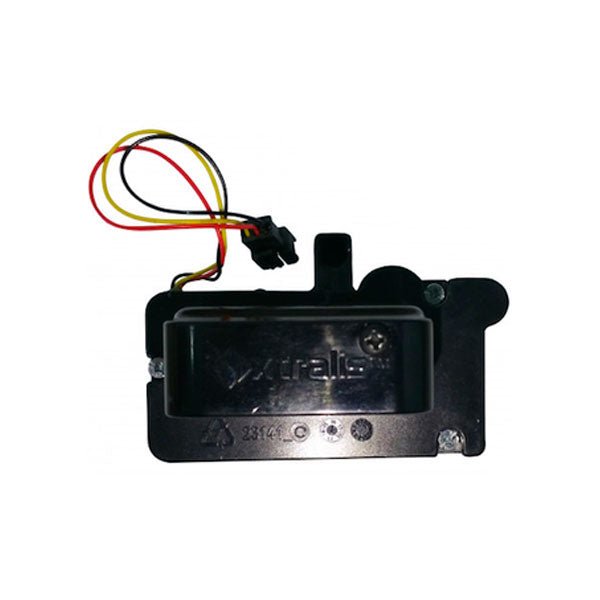

VESDA VSP-965 — field replaceable sampling module for VESDA-E VEP, VEP-1P, VEU and VES aspirating smoke detectors.
It is not the fan. Xtralis states the sampling module ensures a representative sample is taken before the aspirator, so the Flair chamber sees particles unaffected by the scrubbing effect the aspirator would otherwise cause. The part that draws air through the pipe network is the VSP-963 aspirator.
- Spare for VESDA-E VEU, VEP, VEP-1P and VES on GA3 and GA4, and VEU, VEP and VEP-1P on GA2
- One part number across all three generations; GA2 serials start 96, GA3 97, 106, 107 or 110, GA4 109
- Printed in the VEP, VEU and VES sheets without the asterisk Xtralis puts on generation specific spares
- A field replaceable sub-assembly, in both the global and the UL 268 7th Edition Americas sheets
Do not confuse it with the VSP-963 aspirator, the VSP-962 filter, the VSP-964-03 and VSP-964-04 chambers or the VSP-956 and VSP-955 manifolds, all of which are generation or model specific. The VESDA-E VEA has its own spares range, VSP-970 to VSP-1006, and VSP-965 is not in it.
Documents
FAQ
Which detectors use the VSP-965?
VESDA-E VEU, VEP, VEP-1P and VES detectors on GA3 and GA4 hardware, and VEU, VEP and VEP-1P on GA2. One part number covers all three generations.
Is the VSP-965 the aspirator fan?
No. The sampling module takes a representative air sample before the aspirator; the part that draws air through the pipe network is the VSP-963 aspirator.
Does it fit the VESDA-E VEA?
No. The VEA has its own spares range, and the VSP-965 is not part of it.
