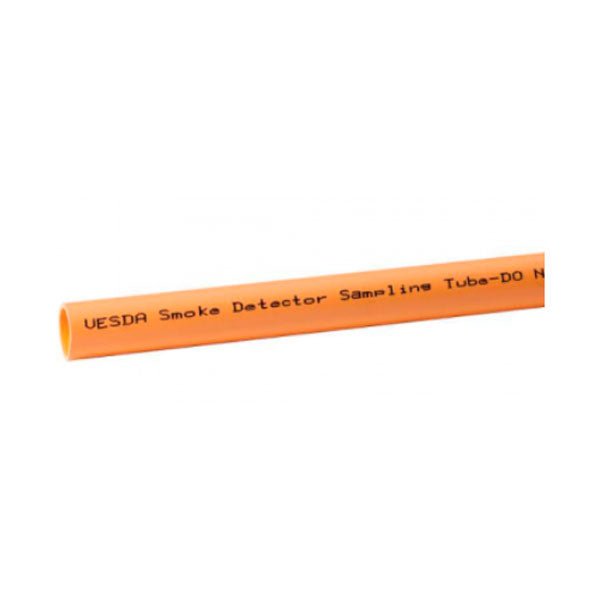

VESDA VP-P-210 — 210 ft kit of orange 3/4 in CPVC air sampling pipe for VESDA aspirating smoke detection systems.
An aspirating detector draws air continuously through a sampling pipe network, so the pipework is part of the detection system rather than an accessory to it. The pipe ships in 15 ft sections, fourteen to the box, pre-labeled to meet NFPA 72 marking requirements and joined with one-step solvent cement. The VESDA range uses a single 3/4 in bore throughout.
- Kit contents: box of 14 pieces, 15 ft each, 210 linear feet in total
- 3/4 in (20 mm) iron pipe size to ASTM F442; average OD 1.050 in, ID 0.874 in
- 0.168 lb per foot; CPVC, non-conductive
- Operating temperature range 0 to 200 °F
- UL 1887 certified for use in plenum rated areas; UL 94 V-0 flame retardant
Match the kit to the run length: VP-P-105 is the 105 ft kit, VP-P-420 the 420 ft kit, and VP-P-200 appears on older Xtralis lists. Couplings (VP-COUP), elbows (VP-ELB-45, VP-ELB-90), tees (VP-TEE), end caps (VP-EC), solvent cement (VP-CEMENT) and the VP-CLIP-US support clamp, one per 5 ft of pipe, are ordered separately.
Documents
FAQ
How much pipe is in the VP-P-210?
It is the 210 ft kit of 3/4 in. VESDA pipe. Xtralis also offers 105 ft (VP-P-105) and 420 ft (VP-P-420) kits.
Can this pipe run through a plenum?
Yes. VESDA pipe is UL 1887 certified for use in plenum rated areas and is rated UL 94 V-0 flame retardant.
What temperature range is it rated for?
VESDA pipe and fittings are suitable for operating temperatures from 0°F to 200°F.
How are the joints made?
With a one-step solvent cement joining process; VP-CEMENT solvent cement is sold separately in one-pint cans.
