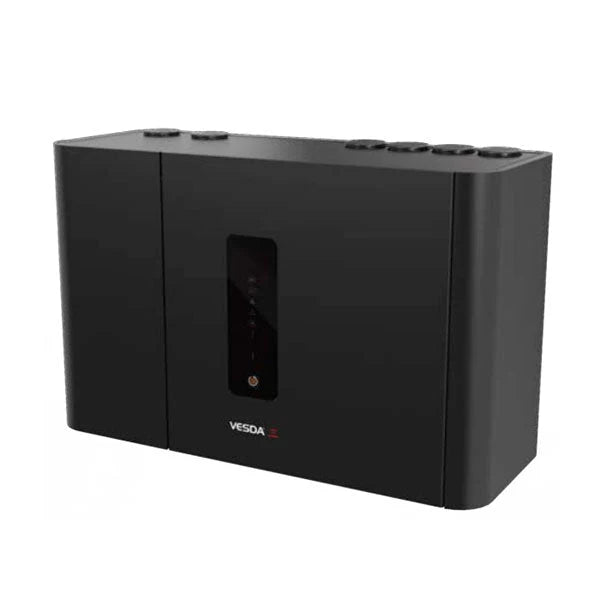

VESDA-E VES-A00-P-UL is the VESDA-E VES sector-addressable aspirating smoke detector with LED indicators in a plastic enclosure, the UL 268 7th Edition model. The VES monitors smoke by individual sampling pipe, so one zone is split into four sectors. When smoke passes the adaptive scan threshold it scans each sector, reports the first to reach Alert as the First Alarm Sector, and then keeps monitoring all four. Each sector has four programmable alarm thresholds: Alert, Action, Fire 1 and Fire 2.
Specifications
| Supply voltage |
18 to 30 VDC (24 V nominal) |
| Current at 24 VDC |
Quiescent 0.31 / 0.41 / 0.64 A; alarm 0.35 / 0.45 / 0.66 A (aspirator settings 1 / 5 / 10) |
| Area coverage |
21,520 sq ft (2,000 m²) |
| Pipe length |
919 ft (280 m) linear; 1,706 ft (520 m) branched; 230 ft (70 m) per pipe with 4 pipes |
| Sampling holes |
98 maximum; minimum 20 l/min airflow per pipe |
| Pipe size |
1.05 in. OD (3/4 in. IPS) or 25 mm inlet; exhaust via adaptor |
| Sensitivity range |
0.0015 to 6.575% obs/ft (0.005 to 20% obs/m) |
| Relays |
12 programmable, 2 A at 30 VDC resistive |
| Inputs and connectivity |
Two programmable GPIs (one monitored); VESDAnet, Ethernet, USB |
| Event log |
Up to 20,000 events |
| Dimensions / weight |
13.8 x 8.9 x 5.3 in. (350 x 225 x 135 mm); 10.4 lb (4.7 kg) |
| Environment |
Ambient 32 °F to 100 °F (0 °C to 38 °C); sampled air -4 °F to 140 °F; 5% to 95% RH non-condensing; IP40 |
| Cable |
4 x 1.02 in. (26 mm) entries; terminals 24 to 14 AWG |
| Certifications |
UL 268 7th edition, ULC, CSFM, FM, FDA, FCC, RCM |
Compatibility and installation notes
- Same mounting footprint, pipe, conduit and electrical connector positions as the VESDA VLS, and compatible with existing VESDAnet installations.
- Pipe networks are designed with Xtralis ASPIRE; commissioning uses AutoConfig and AutoLearn smoke and flow.
- Xtralis notes that pipe lengths and hole counts are subject to agency confirmation; follow the product guide for compliant design.
- Spare parts include VSP-962 filter (VSP-962-20 pack of 20), VSP-963 aspirator, VSP-960 mounting bracket and VSP-961 US exhaust adaptor.
Related models
-
VES-A10-P-UL: same detector with a 3.5 in. display (0.33 to 0.72 A, 10.6 lb)
Documents
Specifications from Xtralis data sheet Doc. No. 36105_05, November 2024, VESDA-E VES (UL 268 7th Ed.) VES-A00-P-UL, VES-A10-P-UL. Manufacturer specifications are subject to change.
FAQ
How does the VES identify where smoke is coming from?
It samples all sectors together; when smoke reaches the Adaptive Scan Threshold it scans each sector, and the first sector to reach Alert is reported as the First Alarm Sector. It then keeps monitoring all sectors.
How many alarm levels are there?
Four individually configurable levels per sector: Alert, Action, Fire 1 and Fire 2.
What area can one VES cover?
Up to 2,000 m² (21,520 sq. ft), with up to 280 m (919 ft) of linear pipe or 560 m (1,837 ft) branched.
What power does it need?
18 to 30 VDC, 24 V nominal.
