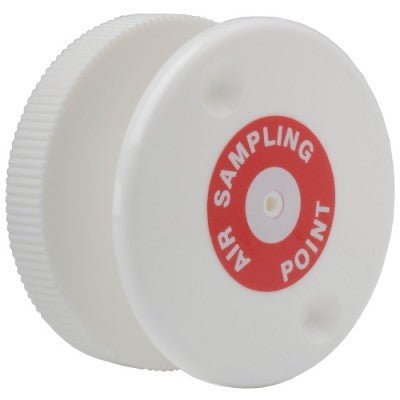

VESDA by Xtralis PIP-015 Flush Sample Point Head Only (for 10mm OD Tube)
Flush sampling point head for VESDA / Xtralis aspirating smoke detection pipe networks. It is supplied as the head only and fits 10 mm OD capillary tube, so the capillary drop from the sampling pipe ends flush with the ceiling instead of in a projecting conical point. Xtralis lists it in its Europe, ANZ and UL pipe-and-fittings literature.
Key Features
- Head only - capillary tube is not included
- Fits 10 mm OD capillary tube
- Used where the sampling pipe network has to be concealed
- Xtralis notes that flush sampling points may not satisfy every local code and are mostly used on performance-based designs
- Complete kits with 2 m of tube are sold as 059-001 (red tube) and PIP-044
Specifications
| Capillary tube size |
10 mm OD |
| Supplied as |
Head only |
| Mounting |
Flush with ceiling |
Compatible With
- VESDA / Xtralis ASD capillary sampling with 10 mm OD tube (Xtralis 221-035 / 221-036)
