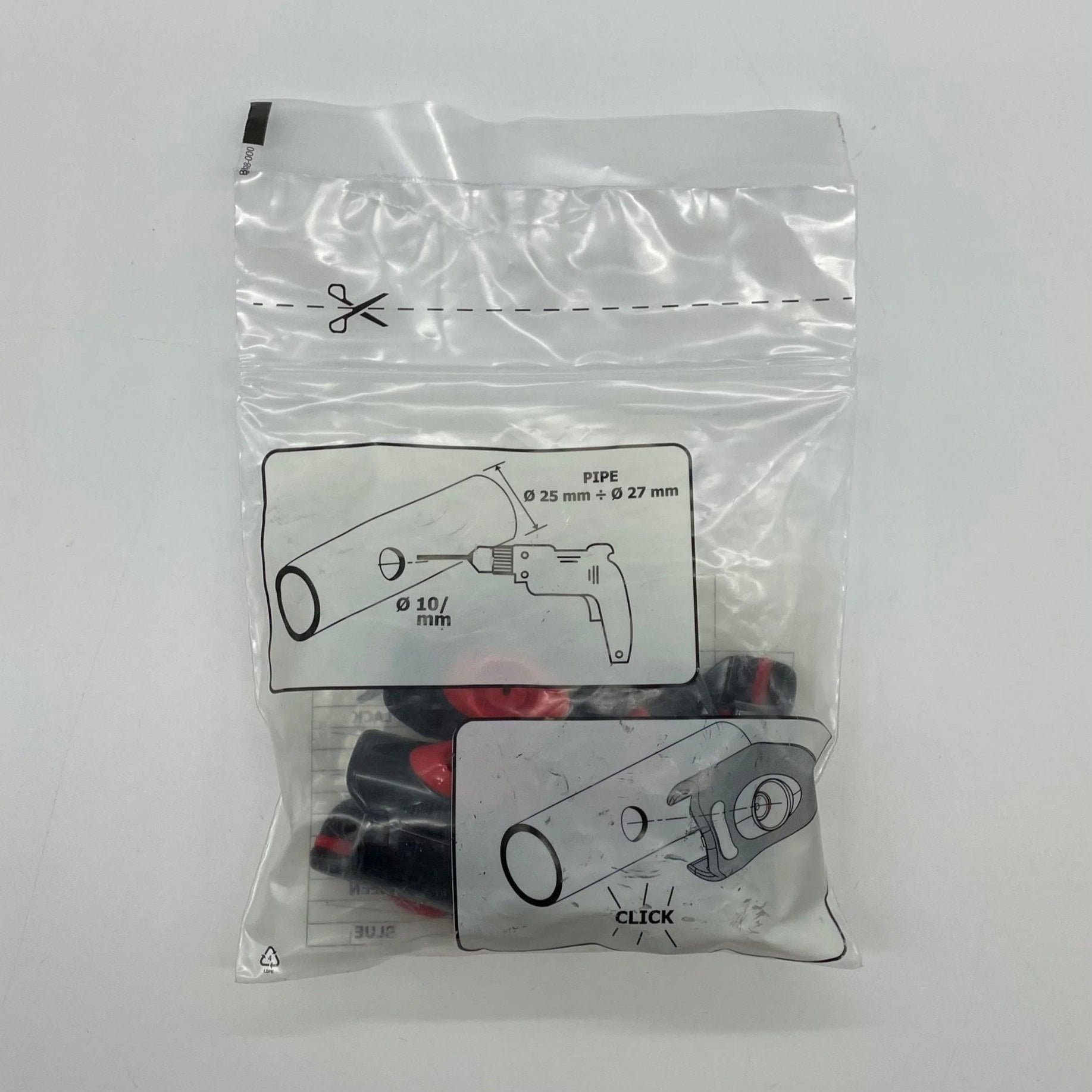

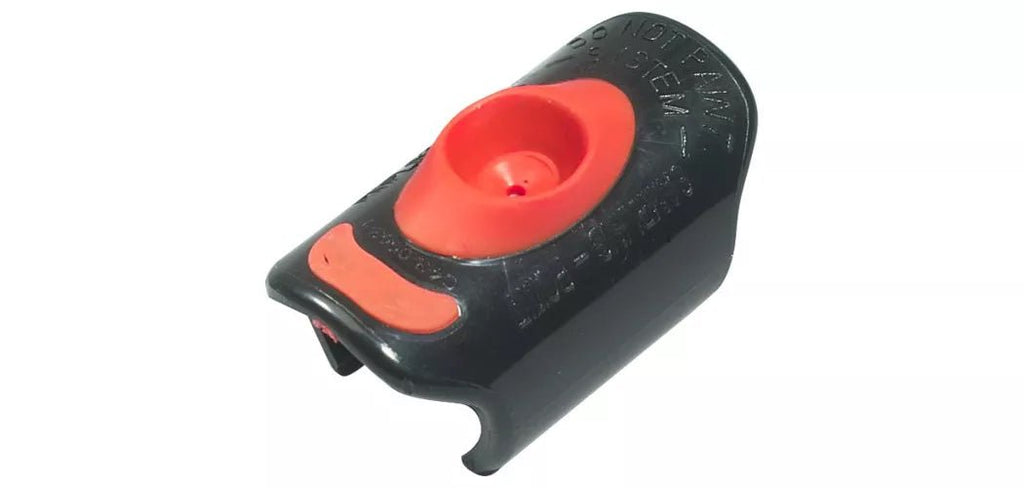

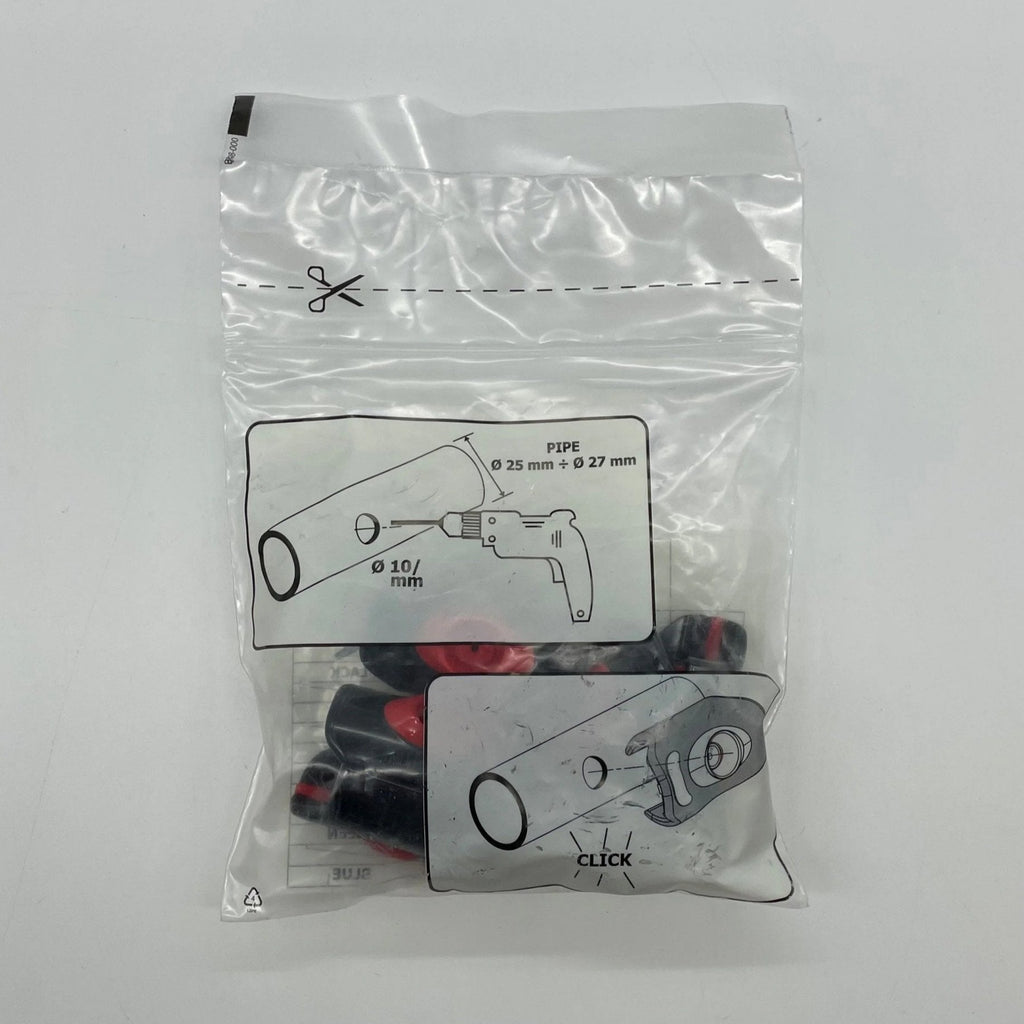

Vesda F-PC-2 is a standard sampling hole clip for Xtralis aspirating smoke detection pipe. It snaps onto 25-27 mm pipe and sets a pre-engineered 2.0 mm (5/64 in) sampling hole; the clips come in a pack of 5.
Clips are color-coded by hole diameter, with red marking this 2.0 mm size, and one 10 mm drill bit is used for every hole. The chamfered hole entry reduces dust loading.
Features
- Click-on installation with no tools or assembly
- Sets a 2.0 mm (5/64 in) sampling hole
- Red color coding for the hole size
- One 10 mm drill bit for all holes
- Chamfered hole entry reduces dust build-up
- Fits 25-27 mm OD pipe
Specifications
| Hole size |
2.0 mm (5/64 in) |
| Hole color |
Red |
| Pipe OD |
25-27 mm |
| Material |
PC/ABS body (black), TPE |
| Operating temperature |
-22 to 113°F (-30 to 45°C) |
| Max pipe network pressure |
7 bar (about 100 psi) |
| Variant |
Standard |
| Pack quantity |
5 |
Specifications taken from the manufacturer data sheet: ASD Sampling Hole Clips Data Sheet.
