Thermotech 302-EPM-135 135°F Rate-Anticipation Heat Detector, 40' 40' UL, Explosion-Proof Mounting

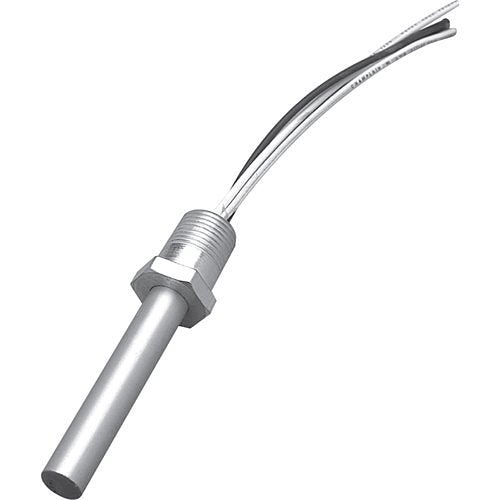

The Thermotech 302-EPM-135 is a 135°F rate compensation heat detector built for explosion-proof mounting in hazardous locations (Division 1, Class I Groups C and D; Class II Groups E, F and G). It has a hexagonal-grip bushing with 1/2 in conduit threads that screws into the threaded hub cover of a Killark JL-series fixture fitting or equal, which is not included; it must be hand tightened only and is for interior use. Like the rest of the 302 series it is a normally open, self-restoring device that closes at its rated temperature and slightly earlier under a rapid temperature rise.
Key Features
- Rate compensation heat detector, normally open contacts
- Self-restoring: resets automatically when the temperature drops below its rating
- Hermetically sealed, shock and corrosion resistant, tamper-proof
- High-expansion aluminum sensing shell with silver contact points
- Explosion-proof mounting for Division 1, Class I Groups C & D and Class II Groups E, F & G locations
- Hexagonal grip bushing with 1/2 in conduit threads; hand tighten only
- Requires a Killark JL-series fixture fitting with hub cover, or equal
- Interior use only
- UL Listed (not FM listed)
Specifications
| Temperature rating |
135°F |
| Maximum ceiling temperature |
100°F |
| Minimum ambient temperature |
-40°F |
| Contacts |
Normally open |
| UL listed spacing |
40 ft x 40 ft (smooth ceiling up to 10 ft) |
| FM |
Not listed |
| Hazardous locations |
Division 1; Class I Groups C & D; Class II Groups E, F & G |
| Mounting thread |
1/2 in conduit thread |
| RTI classification (135°F) |
Quick |
| Electrical rating |
6-125 VAC, 5 A; 6-25 VDC, 1 A; 125 VDC, 0.5 A |
| Warranty |
1 year |
Compatible With
- Killark Electric JL-series explosion-proof fixture fitting with threaded hub cover (or equal)
- Fire alarm control panel initiating device circuits (normally open contact device)
