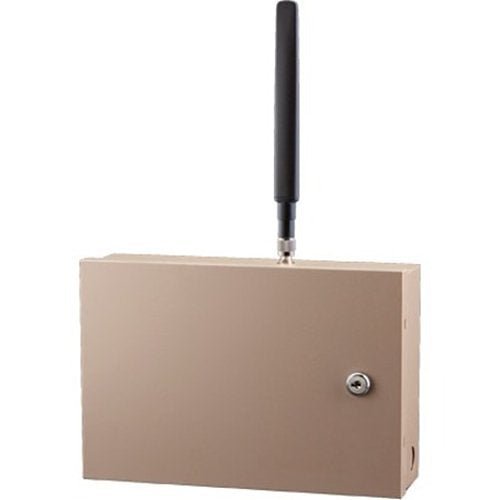

Telguard TG7LA002 TG-7 LTE-A Universal Commercial Cellular LTE Alarm Communicator, AT&T (Replaces TG-7A LTE-A TG7LAA)
TG7LA002 is the AT&T LTE version of the standard Telguard TG-7 commercial cellular alarm communicator. It takes alarm data from the panel's dialer and sends it over the cellular network as the sole, primary or backup path. It runs from the supplied plug-in transformer with a dealer-supplied backup battery, or from 12 VDC panel power.
Key Features
- Sole path, cellular primary with Telco backup, or Telco primary with cellular backup
- Automatic alarm-format detection: pulse 3+1 / 4+2, Contact ID, Modem IIe/IIIa2/4, SIA2, Sonitrol, DMP
- Two programmable System Trouble Condition (STC) relay outputs and a trip input
- Automatic self-test reports and remote query over cellular
- Powered by supplied 12 VAC 10 VA plug-in transformer (charges a dealer-supplied battery) or 12 VDC from the panel
- Works with the TG-PEM accessory to add dry-contact zones
- UL 365, UL 985, UL 1023, UL 1610; ULC S545, ULC C1023, ULC S304
Specifications
| Carrier |
AT&T |
| Supported bands (AT&T units) |
3G B2/B5; LTE B2/B4/B5/B17 |
| Antenna port |
TNC connector (female), 50 ohm |
| Transformer supplied |
12 VAC 10 VA, UL, plug-in |
| Max AC current draw |
125 mA (battery charged); 350 mA (battery charging) |
| Average DC current draw at 12 VDC |
34 mA idle; 121 mA transmitting |
| Physical size (TG-7/7FS) |
11.4 x 7.75 x 3.3 in |
| Shipping weight (TG-7/7FS) |
5 lb |
| Operating environment |
0 C to +49 C; 0-85 % humidity (non-condensing) |
| Listings |
UL 365, UL 985, UL 1023, UL 1610, ULC S545, ULC C1023, ULC S304 |
Compatible With
- Alarm panels with a digital dialer
- Telguard TG-PEM
- Telguard ACD-12/35/50/100 antenna cables
- Telguard HGDL-0 / EXDL-0 antennas
