Telguard TG7FPV Commercial Sole Path Fire Cellular Alarm Communicator for Verizon 5G (LTE-M) network

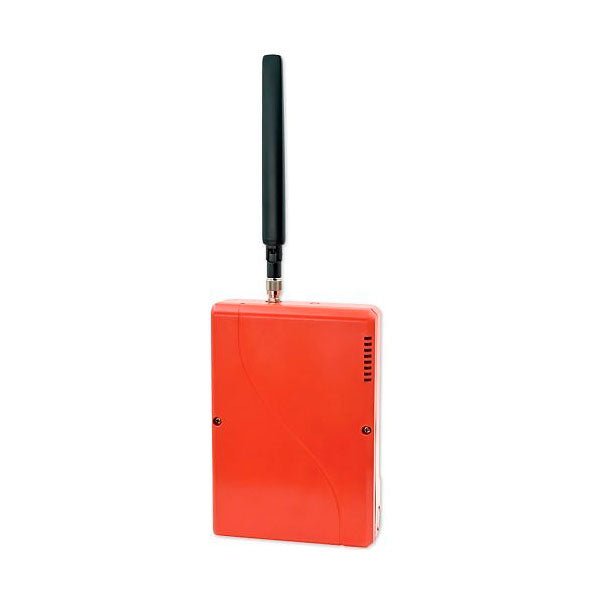

The TG7FPV is the Verizon version of the Telguard TG-7FP, a sole-path commercial fire cellular alarm communicator that operates on the LTE-M network. It is powered directly from the fire panel's 12 or 24 VDC auxiliary output and connects to the panel through a single DACT (dialer) connection. The unit comes in a compact red plastic enclosure with a built-in tamper switch.
Key Features
- Sole-path commercial fire communicator on the Verizon LTE-M network
- Powers from the fire panel's 12 V / 24 V auxiliary power source; no plug-in adapter or on-board battery
- Single DACT (dial capture) connection for use with most fire panels
- Link supervision available at 60-minute and 5-minute intervals for sole-path requirements
- UL 864 Commercial Fire and UL 1610 Central Station (AT&T and Verizon models)
- California State Fire Marshal listed; FDNY Certificate of Approval
- Compact red plastic enclosure with 3 knockouts for 1/2" conduit, LEDs visible on cover, built-in tamper switch, external RSSI and Reset buttons
- Configured through the Telguard website or the Telguard Tools app
Specifications
| Network |
Verizon LTE-M |
| Input power |
12 or 24 VDC from the panel |
| Current draw, standby |
18 mA @ 24 VDC; 40 mA @ 12 VDC |
| Current draw, transmit |
110 mA @ 24 VDC; 200 mA @ 12 VDC |
| Compatible formats |
CID (Contact ID), SIA, Pulse (4x2, 3x1), Radionics Modem (IIe/3a2,4), DMP |
| Size (without antenna) |
8.25 x 5.75 x 2.0 in (20.96 x 14.61 x 5.08 cm) |
| Shipping weight |
2.2 lb (1.0 kg) |
| Package contents |
TG-7FP communicator, terminal blocks, LTE antenna |
| UL listings |
UL 864, UL 1610 |
Compatible With
- Fire alarm control panels with a DACT (Contact ID, SIA, pulse, modem, DMP formats)
- Telguard ACD-12/35/50/100 antenna cables
- Telguard HGDL-0 and EXDL-0 antennas
