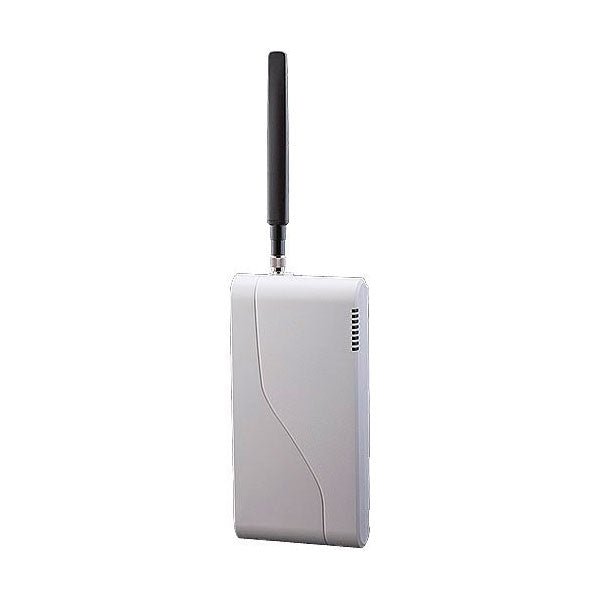

Telguard TG-4 LTE-V Residential / Commercial primary or backup alarm communicator on Verizon LTE network.
The TG4LV is the Verizon LTE version of the Telguard TG-4, a universal cellular alarm communicator for residential and light commercial systems. It can act as the primary path for alarm signals or as backup while monitoring an existing phone line, capturing the panel's dialer output and forwarding it to the central station.
Key Features
- Certified for the Verizon LTE network in the US
- Primary or backup alarm communicator; can monitor an existing phone line
- HomeControl Flex support for remote arming and disarming when installed in primary mode
- Dial capture supports Contact ID, SIA, Radionics Modem formats, Pulse 4x2/3x1, DMP, Sonitrol and other formats
- LED display for status and trouble reporting; works with the Telguard installer tools app
- Panel upload/download over the cellular path using the panel maker's existing software
- Standard Line Security supervision available
- Trip input for an additional sensor and two relays for reporting device troubles to the panel
- UL 1023, UL 985, UL 365, UL 1610
Specifications
| Carrier |
Verizon LTE (US) |
| Size |
9.5 H x 4.5 W x 1.8 D in |
| Input voltage |
12 VAC (transformer included) |
| Battery voltage |
12 VDC |
| Listings |
UL 1023, UL 985, UL 365, UL 1610 |
Compatible With
- Most residential and commercial alarm panels with a dialer
- Telguard BMR-1208 battery
- Telguard ACD antenna cables
- Telguard HGDL-0 antenna
