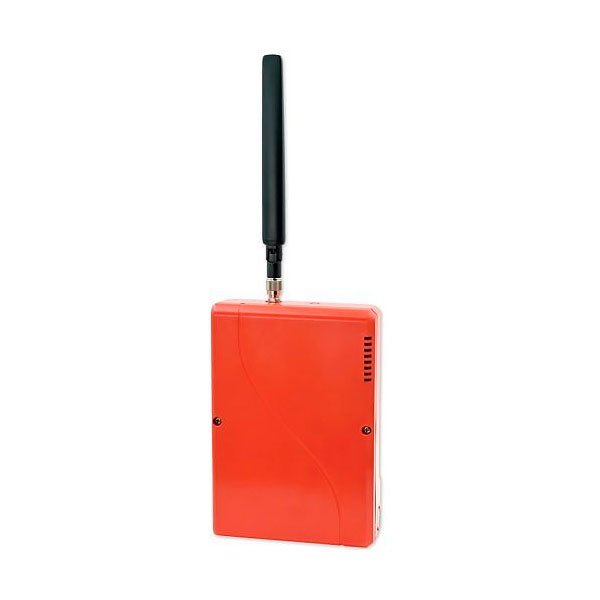

Telguard TG7FPA is a commercial sole-path fire cellular communicator for the AT&T 5G LTE-M network. It is designed for panel-powered fire applications and takes its power from the fire panel.
It supports a wide range of alarm formats through dial capture, which allows universal panel compatibility. LTE-M operation gives lower power consumption and better building penetration.
Features
- Certified for the AT&T 5G LTE-M network with nationwide US coverage
- Powered from the fire panel's 12V/24V auxiliary supply
- Dial capture for universal panel compatibility: Contact ID, SIA, Radionics, Pulse 4x2 and 3x1, DMP and Sonitrol formats
- Link supervision at 60 and 5 minute intervals for sole-path requirements
- Compact red plastic enclosure with three 1/2 in. conduit knockouts
- LEDs visible on the cover, built-in tamper switch and external RSSI and Reset buttons
- UL 1610, UL 864, ULC S304 and ULC S559
Specifications
| Type |
Universal alarm communicator |
| Network |
AT&T 5G LTE-M |
| Input voltage |
12 V DC or 24 V DC |
| Color |
Red |
| Height |
8.3 in. |
| Width |
5.8 in. |
| Depth |
2 in. |
| Approvals |
California State Fire Marshal, S304 commercial burglary, S559 commercial fire |
