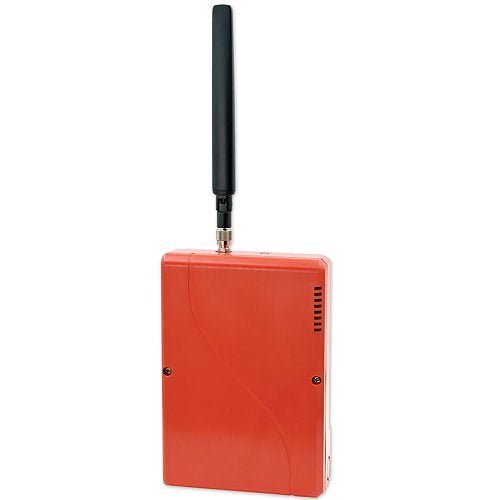

Telguard TG-7FP-A is a universal sole-path commercial fire cellular communicator built for the AT&T 5G LTE-M network. It is powered from the fire panel, so no separate supply is needed.
It uses dial capture to work with most panel reporting formats and offers link supervision intervals that satisfy sole-path requirements set by the authority having jurisdiction. Coverage in Canada is provided through Rogers, Telus, and Bell Mobility.
Features
- Certified on the AT&T 5G LTE-M network for nationwide US coverage
- Draws power from the panel's 12/24 V auxiliary output
- LTE-M operation for lower power use and better building penetration
- Dial capture supports Contact ID, SIA, Radionics, Pulse 4x2/3x1, DMP, and Sonitrol formats
- Link supervision at 60 and 5 minute frequencies for sole-path use
- UL 1610, UL 864, ULC S304, and ULC S559; California State Fire Marshal listed
- Built-in tamper switch, with external access to the RSSI and Reset buttons
Specifications
| Cellular network |
5G LTE-M |
| Input voltage |
12 V or 24 V DC |
| Enclosure |
Compact red plastic, tamper switch, 3 knockouts for 1/2 in conduit |
| Depth |
2 in |
| Height |
8.3 in |
| Width |
5.8 in |
