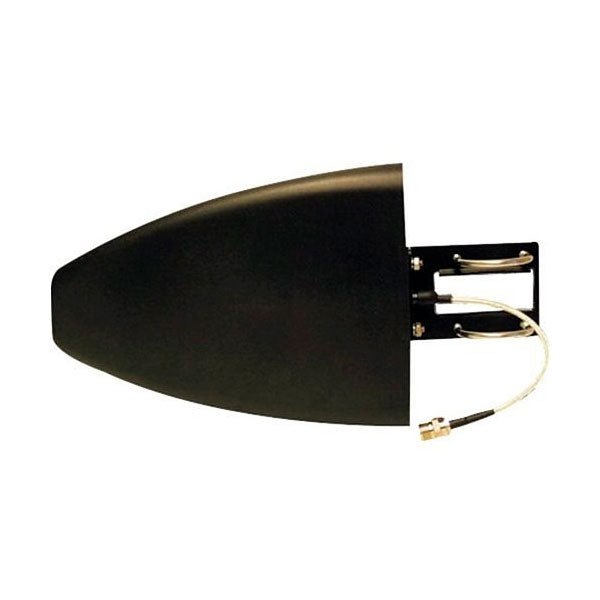

Telguard HGDL-0 High gain directional antenna for TG-1B, TG-4, and TG-7 Series LTE Communicators.
The HGDL-0 is a high-gain, wideband directional antenna for Telguard LTE and LTE-M cellular alarm communicators. It covers 690-2700 MHz with 8-10 dBi gain, needs no ground plane and is built for indoor or outdoor pole mounting. Antenna cable is not included; Telguard specifies ACD-12/35/50/100 cables for the TG-1B, TG-4 and TG-7 series.
Key Features
- Directional pattern, 70 degree horizontal and vertical beamwidth
- Frequency range 690-2700 MHz; gain 8-10 dBi
- Self-contained design requiring no ground plane
- Black UV-stable housing for indoor or outdoor use
- Includes mounting bracket (U-bolts for up to 1.75" pole) and TNC adapter
- Cables not included
Specifications
| Radiation pattern |
Directional |
| Frequency |
690-2700 MHz |
| Gain |
8-10 dBi |
| VSWR |
<1.5:1 (690-2700 MHz) |
| Front-to-back ratio |
>20 dB |
| Beamwidth |
H 70 deg / V 70 deg |
| Impedance |
50 ohms |
| Max input power |
100 W |
| Polarization |
Vertical |
| Dimensions |
11.575" L x 8" H x 2.375" D (294 x 203 x 60.3 mm) |
| Weight |
1.365 lb |
| Antenna pigtail |
8" DA195 |
| Mounting |
U-bolts for up to 1.75" pole |
| Wind rating |
>110 MPH |
Compatible With
- Telguard TG-1B
- Telguard TG-4 series
- Telguard TG-7 series
- Telguard TG-1 Express (with CTXL-12 adapter cable)
- Telguard ACD-12/35/50/100 antenna cables
