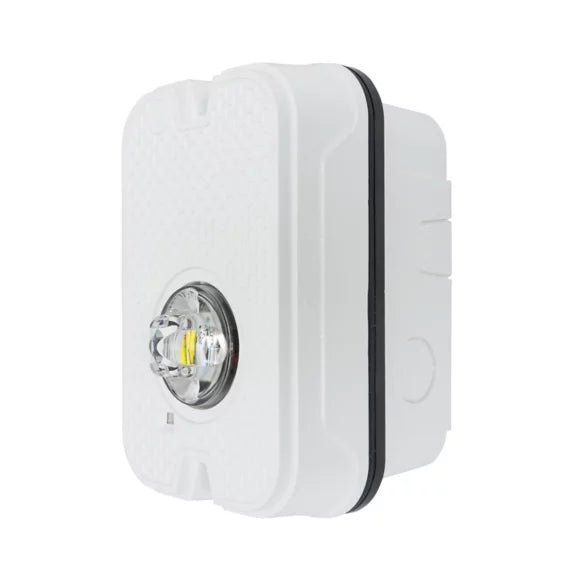

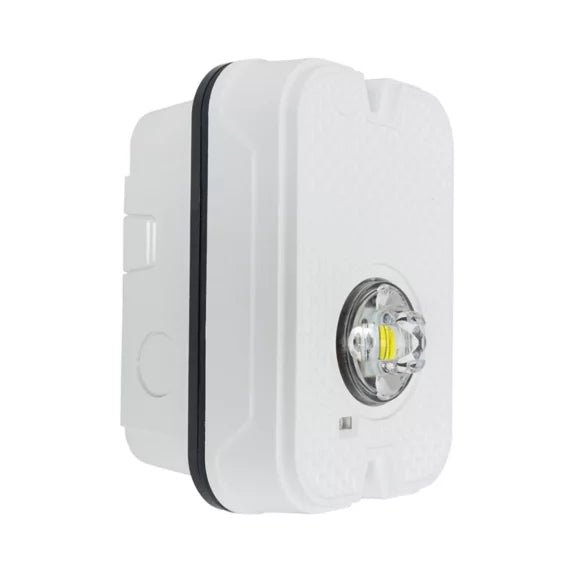

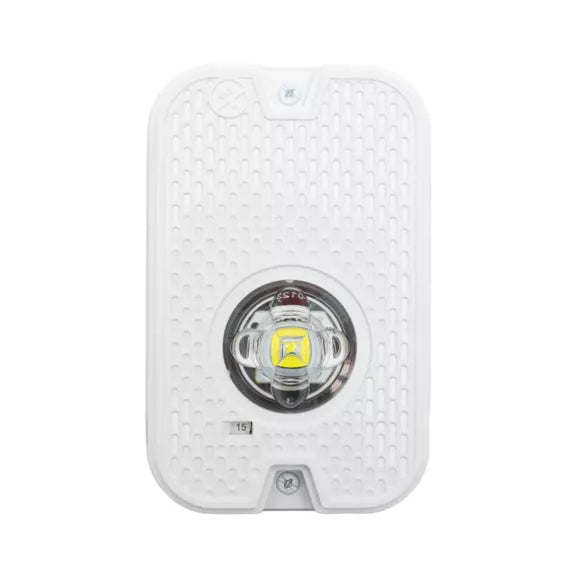

System Sensor SGWKLED-P — L-Series with LED outdoor compact wall strobe, white, plain cover with no FIRE lettering.
This is the weatherproof member of the L-Series line, for wet, washdown and outdoor locations. It ships with a plastic back box taking in-and-out wiring for daisy chaining and reaches NEMA 4X and IP56 as a standalone device, so sealing the backbox is not part of the installation.
- Seven wall candela settings: 15, 30, 75, 95, 110, 135 and 185 cd, on a rotary switch readable through a window on the front
- Maximum current at 16 to 33 VDC: 18, 22, 70, 75, 85, 105 and 120 mA
- Strobe certified to ANSI/UL 1638 and ULC S526 for public mode
- Regulated 24 VDC nominal, 16 to 33 V range, one flash per second
- -40 to 151 °F; 5.84 by 3.76 in. (148 × 95.5 mm) including lens
SGWKLED carries FIRE lettering and SGWKLED-B the bilingual FIRE/FEU cover; SGRKLED-P is the red version. SCWKLED-P is the ceiling model and not a substitute, because its candela set differs: 15, 30, 75, 95, 115, 150 and 177 cd. P2GWKLED-P adds a horn. SGBKLED is certified for general signalling only, not fire.
Documents
FAQ
Is the SGWKLED-P weatherproof on its own?
Yes. L-Series outdoor devices are weatherproof per NEMA 4X and IP56 as standalone devices.
What temperature range is it rated for?
-40°F to 151°F.
Which candela settings does the wall strobe have?
15, 30, 75, 95, 110, 135 and 185 cd, set by rotary switch.
Is it compatible with older System Sensor devices?
Yes, it is electrically compatible with legacy SpectrAlert Advance and SpectrAlert devices at 16 to 33 VDC. Mounting plates with wire nuts are provided for the field wiring connection.
