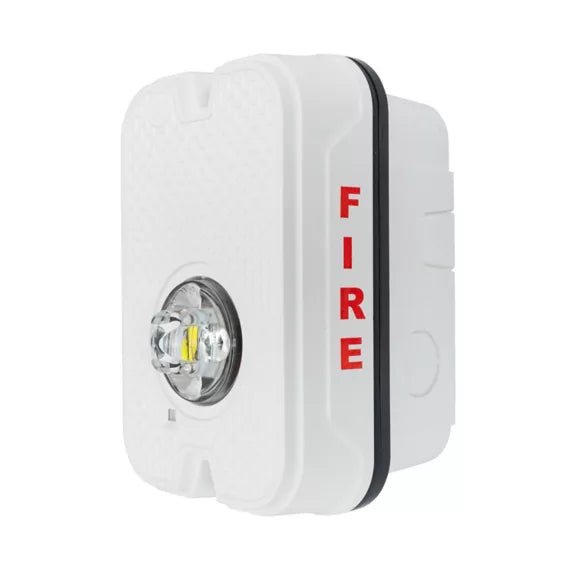

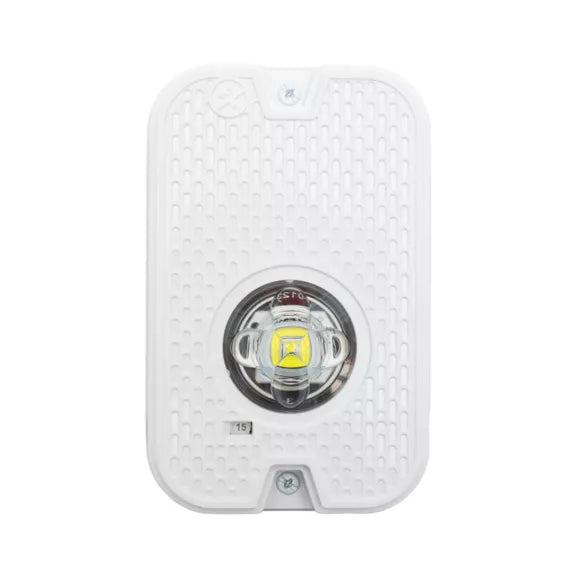

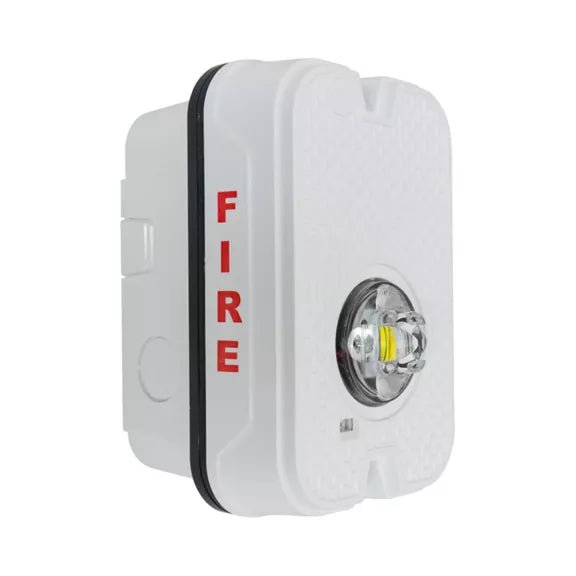

System Sensor SGWKLED — L-Series with LED outdoor compact wall strobe, white, listed for public mode notification.
Outdoor appliances usually mean sealing a back box in the field and trusting the caulk. These devices hold their NEMA 4X, Type 4X and IP56 rating as standalone products, so no sealant is needed, and they ship with a plastic back box knocked out for in-and-out wiring.
- Seven field-selectable wall candela settings on a rotary switch: 15, 30, 75, 95, 110, 135 and 185 cd
- Maximum strobe current at those settings, 16 to 33 VDC: 18, 22, 70, 75, 85, 105 and 120 mA
- 16 to 33 V, 24 VDC nominal; one flash per second
- Rated -40°F to 151°F, humidity 0 to 95%; field wiring 12 to 18 AWG
- Strobe listed to ANSI/UL 1638 and ULC 526 as a public mode appliance
- 5.84 by 3.76 in. including the lens
SGRKLED is the identical strobe in red. SGWKLED-P has a plain cover with no wording and SGWKLED-B is bilingual FIRE/FEU; the unsuffixed part is the one marked FIRE. Take care with SGBKLED, one letter away, which is UL listed for general signaling rather than fire. SCWKLED is the ceiling version.
