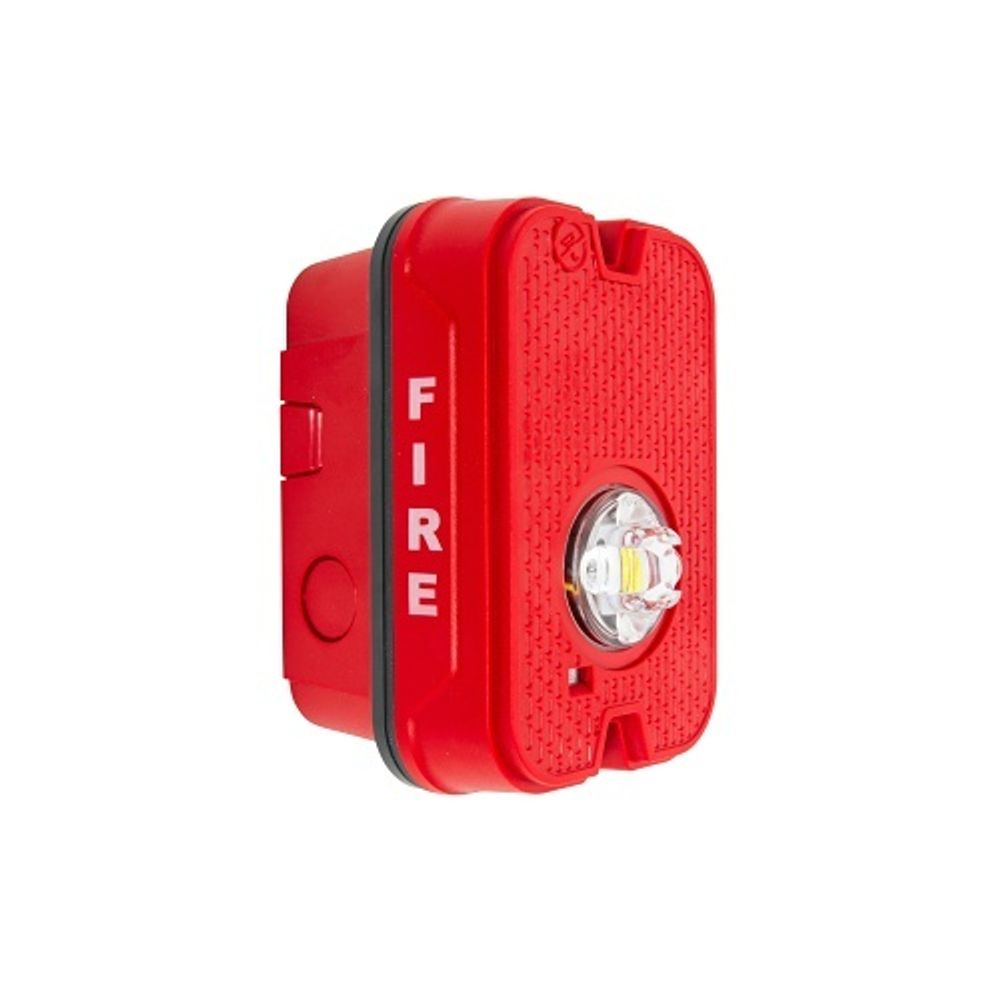

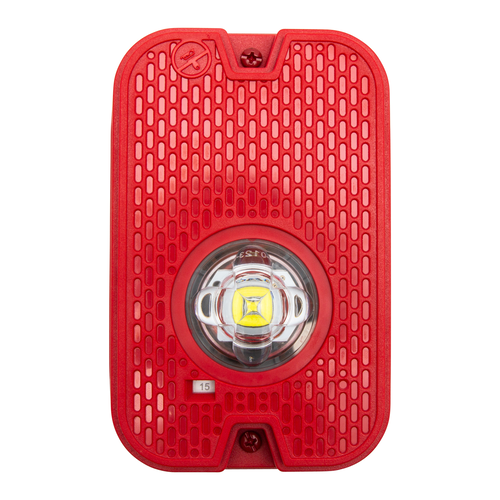

System Sensor SGRKLED L-Series Outdoor Compact Wall-Mounted LED Strobe, "FIRE", Red
The new L-Series outdoor weatherproof devices offer significant improvements in current draw and power supply utilization compared to previous generation SpectrAlert Advance outdoor appliances. In addition, all L-Series outdoor notification appliances are NEMA 4X and IP56 rated without having to seal the backbox.
Additional caulk and sealant are not required on the backbox allowing for a faster, cleaner installation. Plus, leveraging LED technology for the strobe devices improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements, allowing for simpler and lower-cost installations.
Features
- 60% Lower current draw (on average) reduces power supplies and allows more devices per NAC
- NEMA 4X and IP56 rating as standalone devices
- Compatibility with legacy System Sensor SpectrAlert, SpectrAlert Advance, and L
- Series notification appliances for retrofit applications
- Common L-Series design aesthetic for continuity with existing L-Series installations
- Certified to both UL and ULC standards
- Unmatched application versatility with Full candela range
- Support Wall and ceiling-mount models
- Support Compact size for wall-mount devices
- Support Red or white color options
- Support Common LED lenses
Documents
FAQ
Do I have to seal the back box for outdoor use?
No. L-Series outdoor appliances are NEMA 4X and IP56 rated as standalone devices without sealing the back box, so no additional caulk or sealant is needed.
Which candela settings does it have?
Wall units are field selectable for 15, 30, 75, 95, 110, 135 and 185 cd, set with rotary switches. The strobe flashes once per second.
What voltage does it need?
Regulated 24 VDC nominal, with an operating range of 16 to 33 V. It is electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices at 16 to 33 VDC.
Is there a surface back box for it?
Yes. The data sheet lists the SBBGRL/WL surface mount back box for wall strobes; with the red SBBGRL the assembly is 3.72 in. deep.
