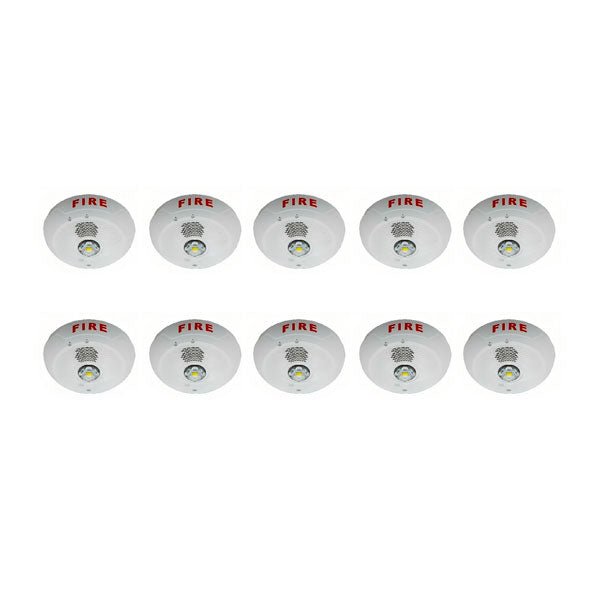

System Sensor SCWLED-BP10 — the SCWLED L-Series with LED ceiling strobe, white with FIRE marking, under a bulk ordering code whose carton quantity System Sensor does not document.
Bulletin M23.2SS lists the SCWLED as the replacement for the xenon SCWL, part of the October 2023 move of the indoor L-Series to LED, which System Sensor puts at 40% lower current draw on average. It is a strobe only, with no horn. The figures below are per strobe.
- Ceiling candela settings 15, 30, 75, 95, 115, 150 and 177, field selectable
- Maximum strobe current 18, 22, 70, 75, 90, 110 and 115 mA at those settings, 16 to 33 V
- Regulated 24 VDC nominal; one flash per second
- DVM test points on the face check voltage without removing the strobe
- 6.83 in. (173.5 mm) diameter; 12 to 18 AWG terminals; 32 to 120 °F
The SCWLED-P is the plain-housing version and the SCRLED is red; the SWLED is the wall model, with a different candela ladder. The PC2WLED adds a horn. The xenon predecessor is also sold here as SCWL and SCWL-BP10.
Documents
FAQ
What boxes does the SCWLED ceiling strobe mount on?
System Sensor lists 4 in. x 4 in. x 1-1/2 in., single gang, double gang and 4 in. octagon boxes, or the SBBCRL/SBBCWL ceiling surface mount back box.
Will it synchronize with other strobes?
Yes. It uses the System Sensor synchronization protocol, which needs a power supply that generates System Sensor sync pulses, a panel NAC set to that protocol, or a separate sync module.
What voltage does it need?
It is designed for regulated 24 VDC systems, with an operating range of 16 to 33 V, and flashes once per second.
Can it be installed outdoors?
No. The SCWLED is an indoor appliance rated 32°F to 120°F and 10 to 93% non-condensing humidity; System Sensor makes separate outdoor L-Series with LED models.
