System Sensor SCWL — white ceiling-mount L-Series strobe with a xenon flash tube and field-selectable candela, marked FIRE.

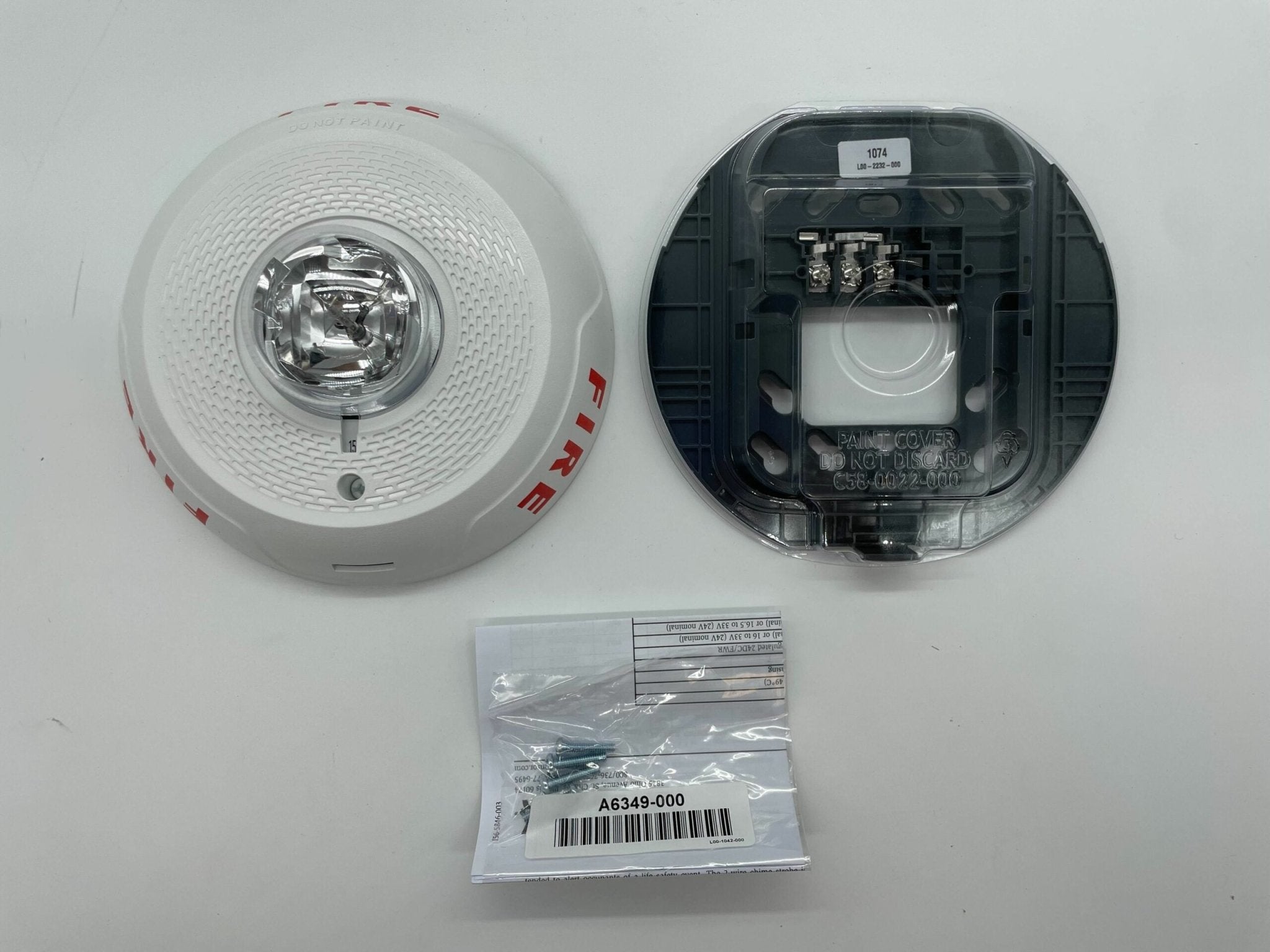

It is a visible-only appliance, plug-in mounted on the L-Series universal plate so the notification circuit terminates at the plate and a shorting spring checks wiring continuity before the head goes on. It is certified for ceiling mounting only.
- Field-selectable candela: 15, 30, 75, 95, 115, 150 and 177
- Flashes at 1 Hz across the whole operating voltage range, meeting ADA visible-signal rules
- Maximum strobe current at 24 VDC runs 41 mA at 15 cd to 226 mA at 177 cd
- Nominal 12 or 24 VDC/FWR; 12 V operation is available only at 15 and 30 cd
- 6.8" diameter × 2.5" high, on a 4 × 4 × 1-1/2" square, 4" octagon or double-gang box
- Certified to UL 1971; works with the MDL3 synchronization module
System Sensor bulletin M23.2SS states that the LED model SCWLED replaces this xenon SCWL. Nearest siblings are the red SCRL, the plain-lens SCWL-P and the PC2WL ceiling horn strobe, which adds an audible the SCWL does not have.
Documents
FAQ
Is the SCWL still available?
The xenon SCWL is discontinued and is replaced by the LED SCWLED, per System Sensor bulletin M23.2SS.
Can it be mounted on a wall?
No. The SCWL is for ceiling mounting only.
What candela settings does it have?
15, 30, 75, 95, 115, 150 and 177 cd, field selectable. On 12 V, only 15 and 30 cd are available.
Can it be synchronized?
Yes, it works with the System Sensor MDL3 synchronization module.
