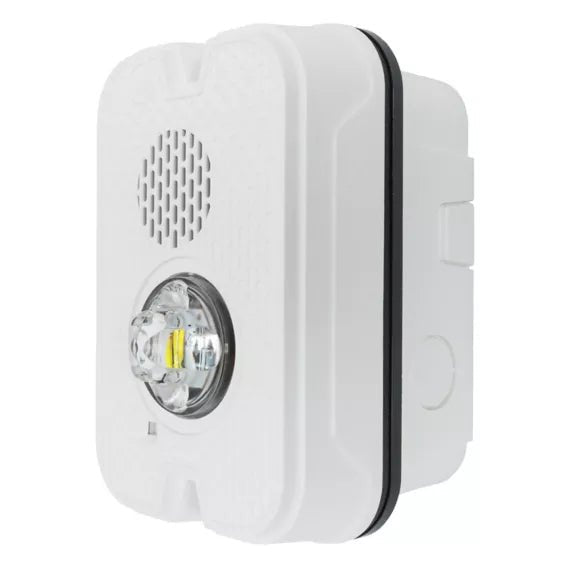

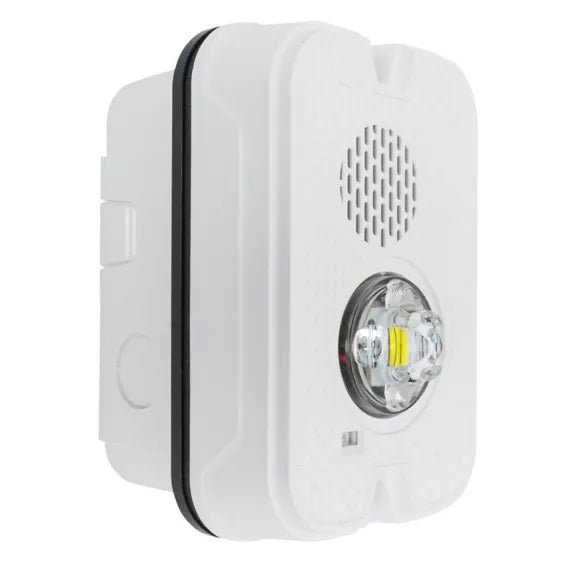

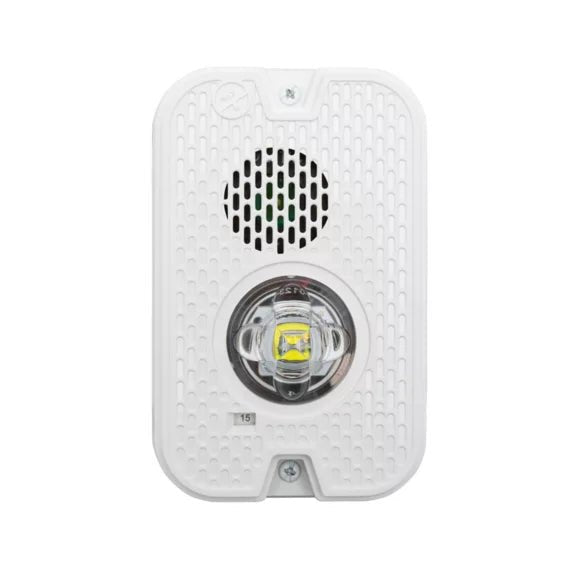

System Sensor P2GWKLED-P — L-Series with LED outdoor compact horn strobe, two-wire, wall, white, plain cover.
The K marks out the outdoor half of the L-Series: rated NEMA 4X, Type 4X and IP56 as a standalone device, needing no sealant on the back box, and rated -40°F to 151°F. The trailing P means the cover carries no FIRE lettering. Candela, tone and volume are set on the device with rotary switches.
- Field-selectable wall candela: 15, 30, 75, 95, 110, 135 and 185
- 16 to 33 volts, 24 V nominal; one flash per second
- Eight rotary tone and volume positions giving 75 to 85 dBA
- High volume temporal setting draws 35 mA at 15 cd, 190 mA at 185 cd
- 5.84 in. × 3.76 in. × 1.56 in. including the lens
- Ships with a plastic back box with knockouts for daisy chaining
One character separates this from quite different parts. P2GRKLED-P is the same appliance in red and P2GWKLED-B carries FIRE/FEU lettering for Canada. SGWKLED-P is the strobe with no horn; HGRKL is the horn with no strobe. PC2WKLED-P is not a mounting option but the ceiling device, whose candela ladder runs 15, 30, 75, 95, 115, 150 and 177.
Documents
FAQ
Can it replace an older outdoor SpectrAlert horn strobe?
Yes, but when replacing outdoor units the device and the back box must both be replaced with the L-Series with LED back box.
How is it wired outdoors?
The gasketed back plate ships with factory-stripped wire leads, and weatherproof wire nuts are provided. Field wiring up to 12 AWG (2.5 mm²) can be used.
Is a surface back box available?
Yes. The SBBGWL white surface mount back box is intended for compact wall horn strobes; with it, the device is 3.72 in. deep.
