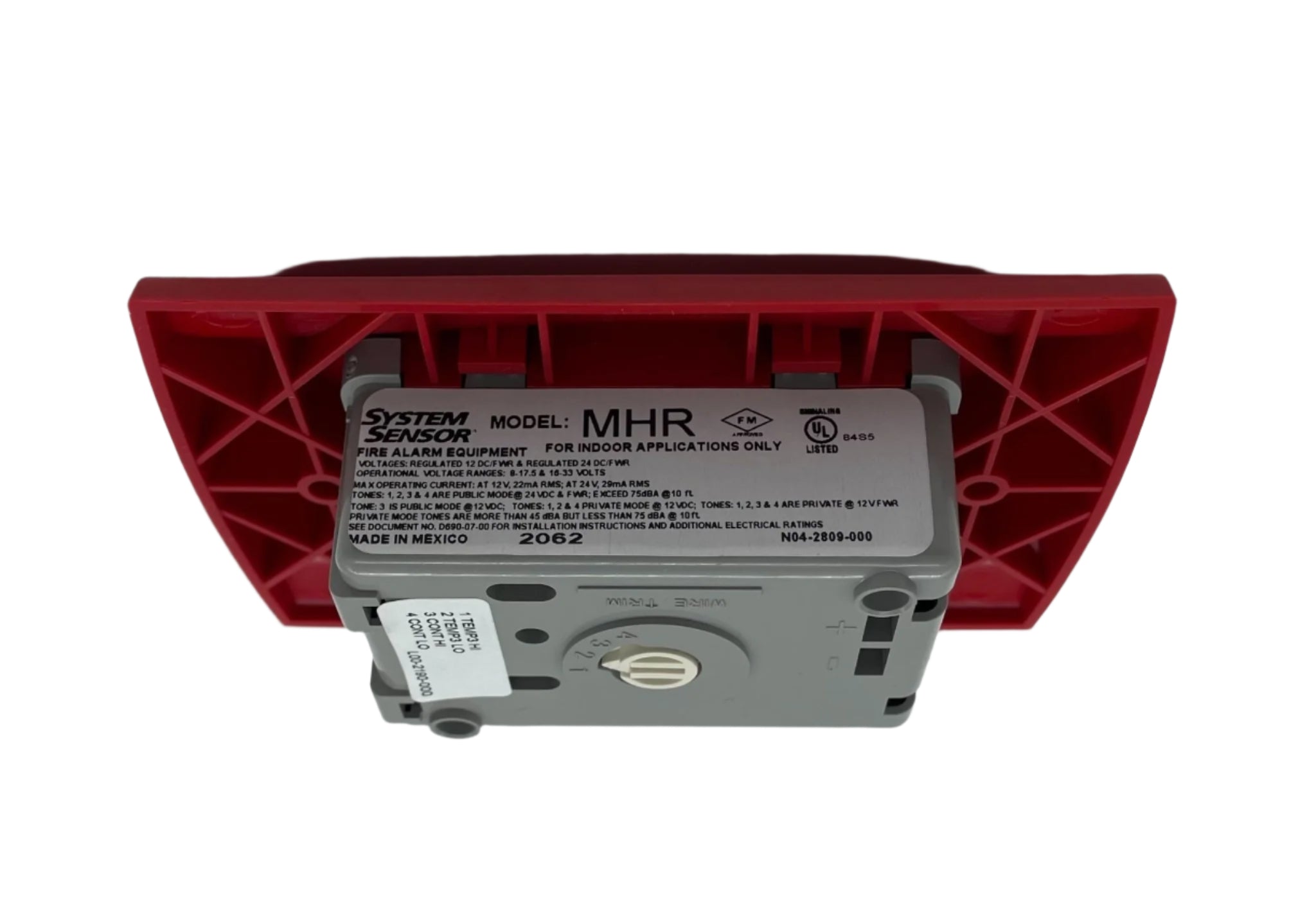

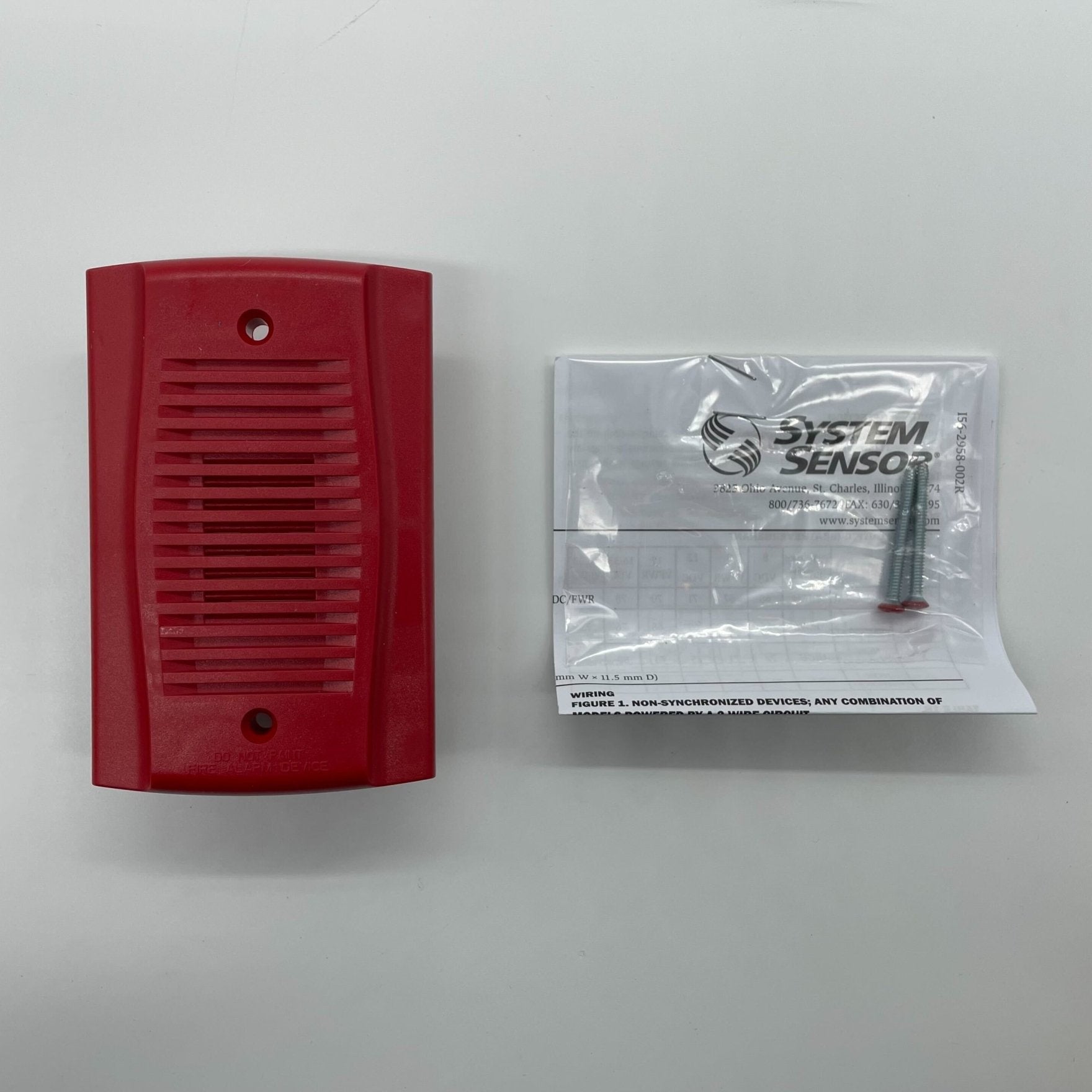

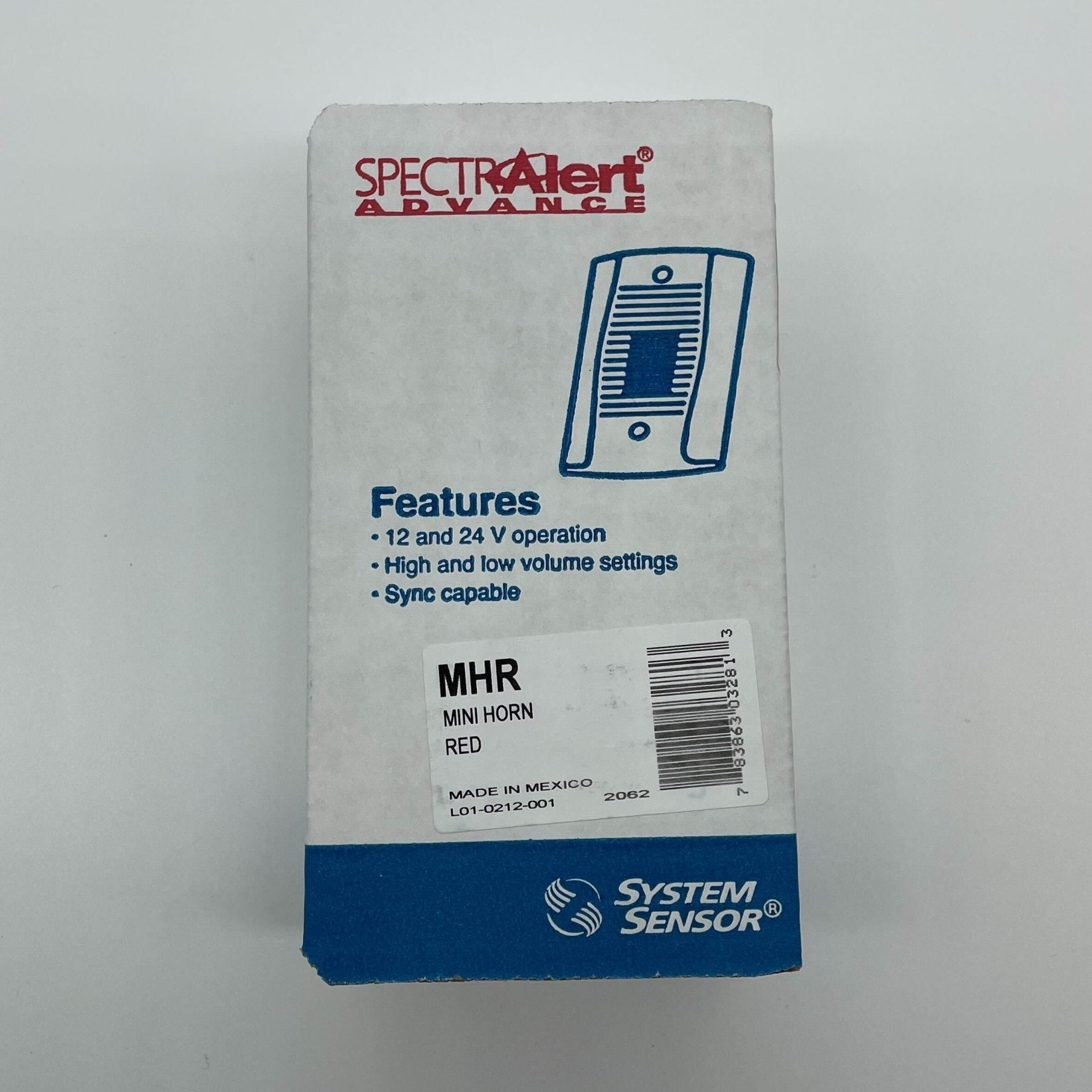

System Sensor MHR — red SpectrAlert Advance mini-horn for 12 V and 24 V notification circuits.

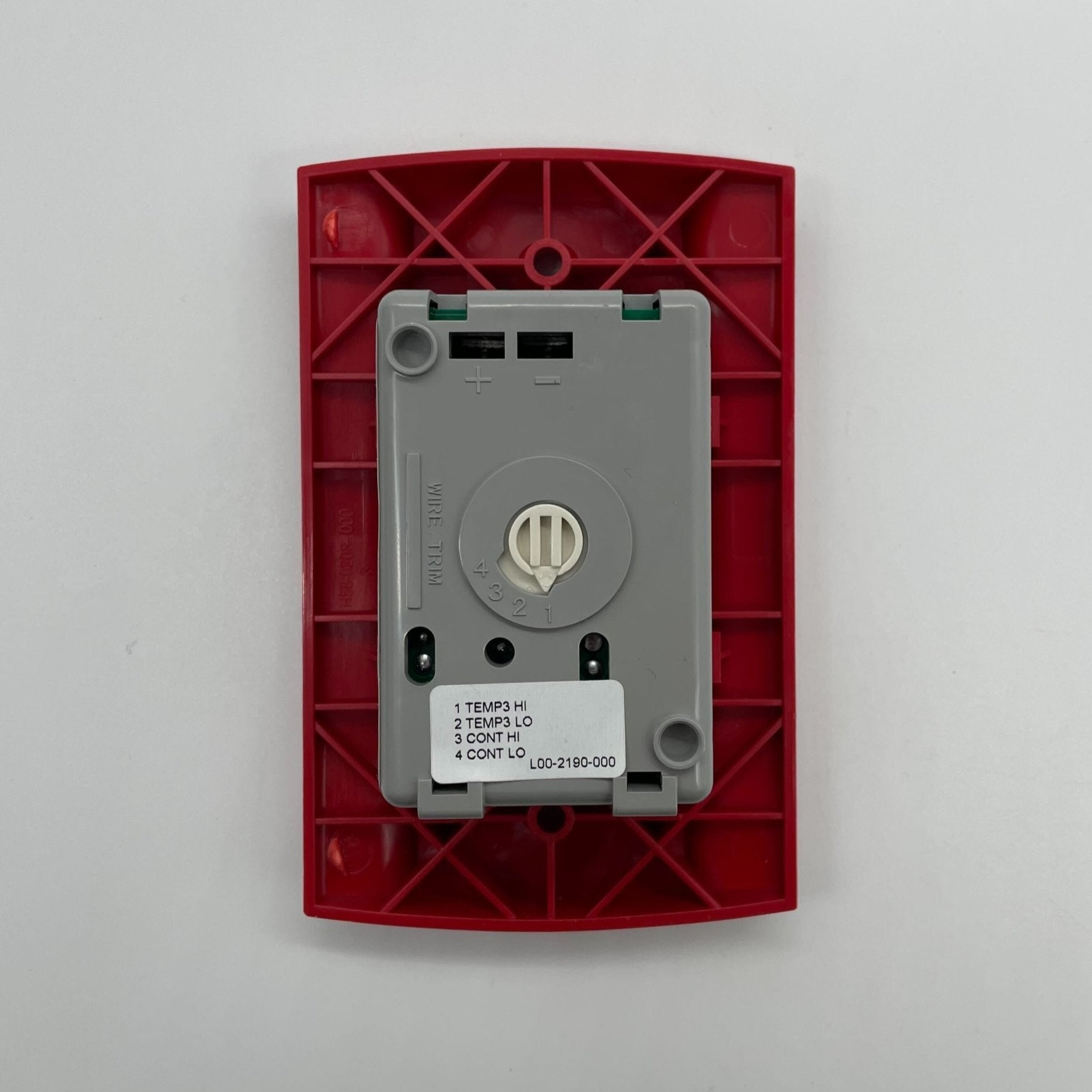

Mini-horns exist where a full-size wall horn is acoustically and physically too much: hotel, motel and dormitory sleeping rooms and small tenant suites. The MHR mounts to a single-gang backbox rather than a 4 in. box, and a four-position switch selects temporal or non-temporal tone at high or low volume.
- Operating voltage: 8–33 V; 9–33 V through an MDL3R/MDL3W sync module
- UL output, high volume: 71 dBA temporal and 75 dBA non-temporal at nominal 12 VDC; 78 and 80 dBA at 16–33 VDC
- Current at 16–33 VDC: 17 mA temporal high, 29 mA non-temporal high
- Surface: deep single-gang backbox (2-3/4" deep); flush: standard 4" × 4" box
- 4.6" L × 2.9" W × 0.45" D; 32°F to 120°F; UL 464 certified
MHR is red; MHW is the identical horn in white — confirm the finish before ordering. The horn does not self-synchronize; that requires an MDL3R or MDL3W module, or a panel using the System Sensor sync protocol.
Documents
FAQ
What voltage does the MHR need?
It operates on nominal 12 or 24 V, regulated DC or full-wave rectified: 8 to 33 V, or 9 to 33 V with an MDL sync module.
Can it be synchronized?
Yes, synchronization is provided when using the MDL sync module.
What box does it mount to?
A deep single-gang back box. It is suitable for wall or ceiling mounting.
Where is it typically used?
Hotel, motel and residential fire system applications where a smaller notification device is wanted.
