System Sensor DH400OE-1 Weatherproof Housing for the DH400ACDCIHT Conventional High-Temperature Duct Detector
DH400OE-1: Weatherproof Duct Smoke Detector Enclosure

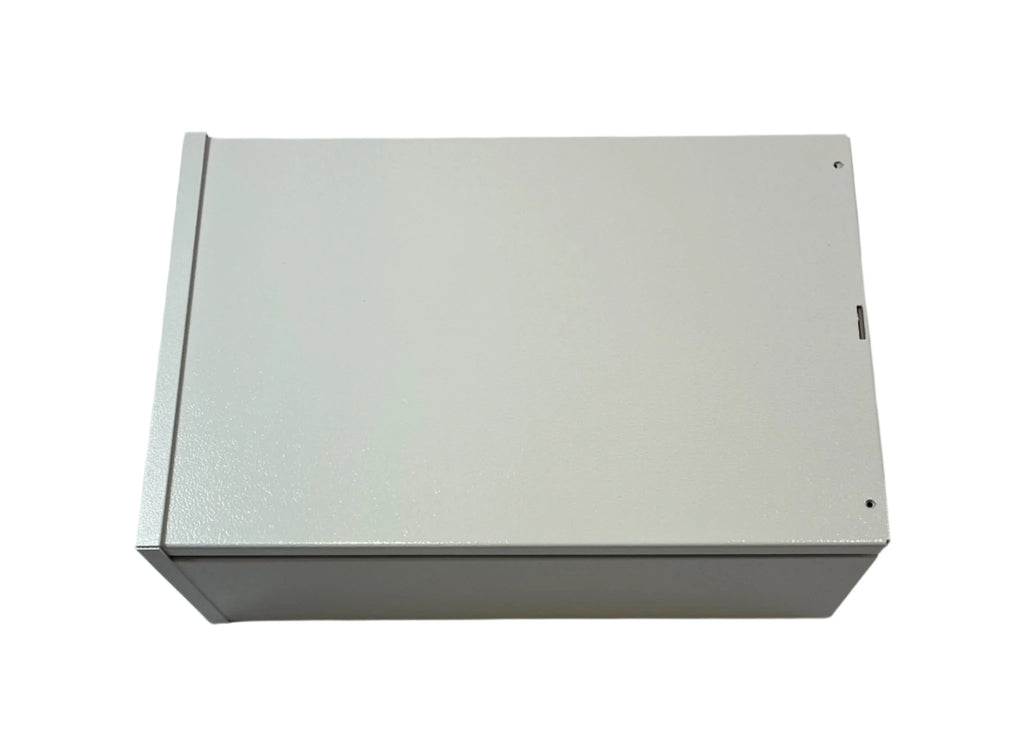

The System Sensor DH400OE-1 is a steel enclosure for mounting a standard indoor rated duct smoke detector outdoors.
Key Features
- Fits both current and legacy duct smoke detectors
- Enclosure is an additional option other than using the D4120W or DNRW watertight duct smoke detectors
- Drop top shield top with seamless front, side, and back construction
- Provision for a padlock to protect the entire unit against unauthorized tampering

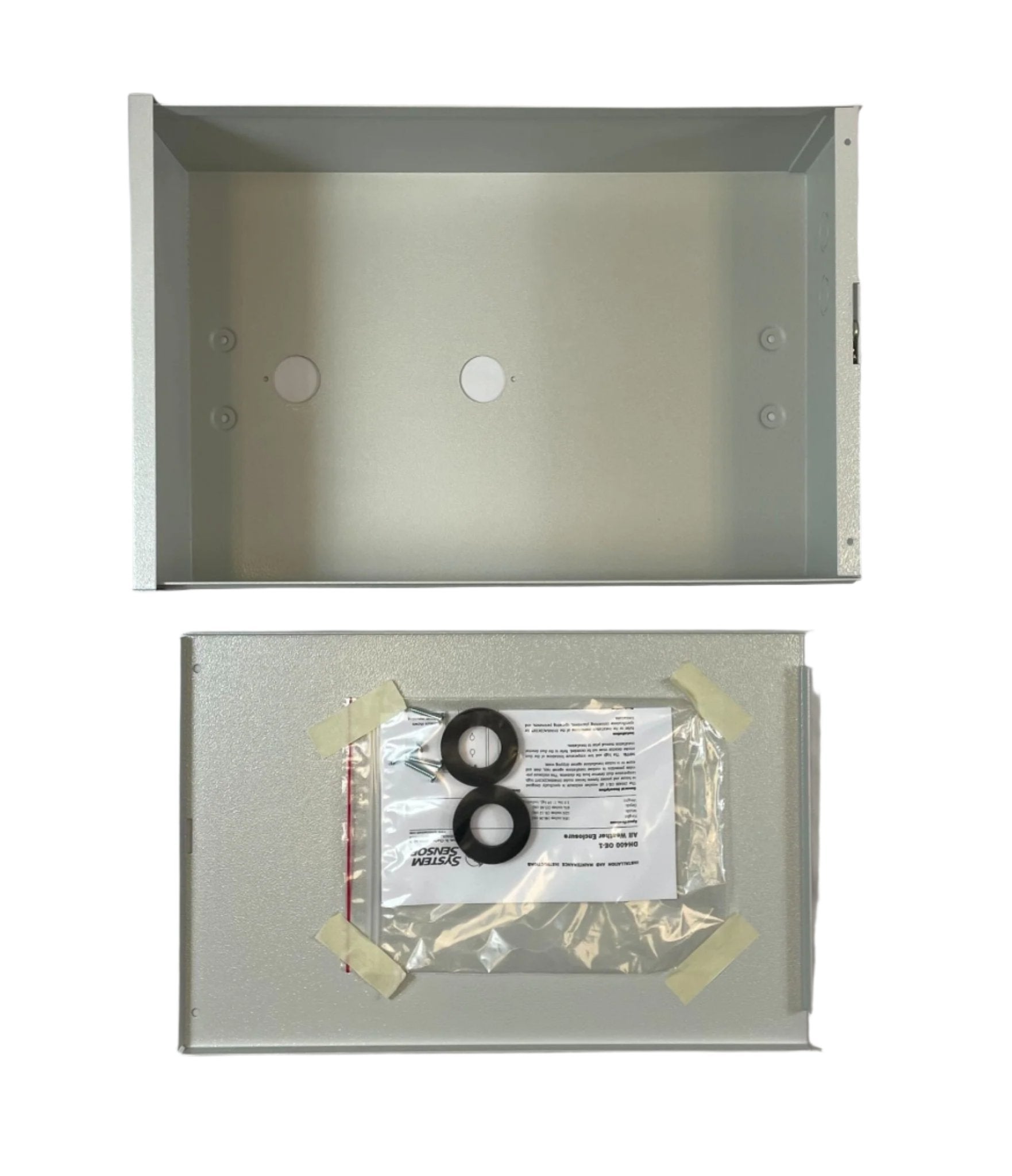

- Special sampling tube gaskets are included as required by UL 268A certification
Documents & Downloads
FAQ
Which duct detectors fit the DH400OE-1?
System Sensor states the pre-drilled enclosure comes factory ready to fit any System Sensor duct smoke detector, current or legacy. The detector is not included.
What is it made of?
14-gauge galvanized steel with a gray polyester powder-coat finish inside and out for protection against rust and corrosion.
How big is it?
18 in x 12 in x 6 in (45.7 x 30.5 x 15.2 cm), with a shipping weight of 15 lb.
Can it be locked?

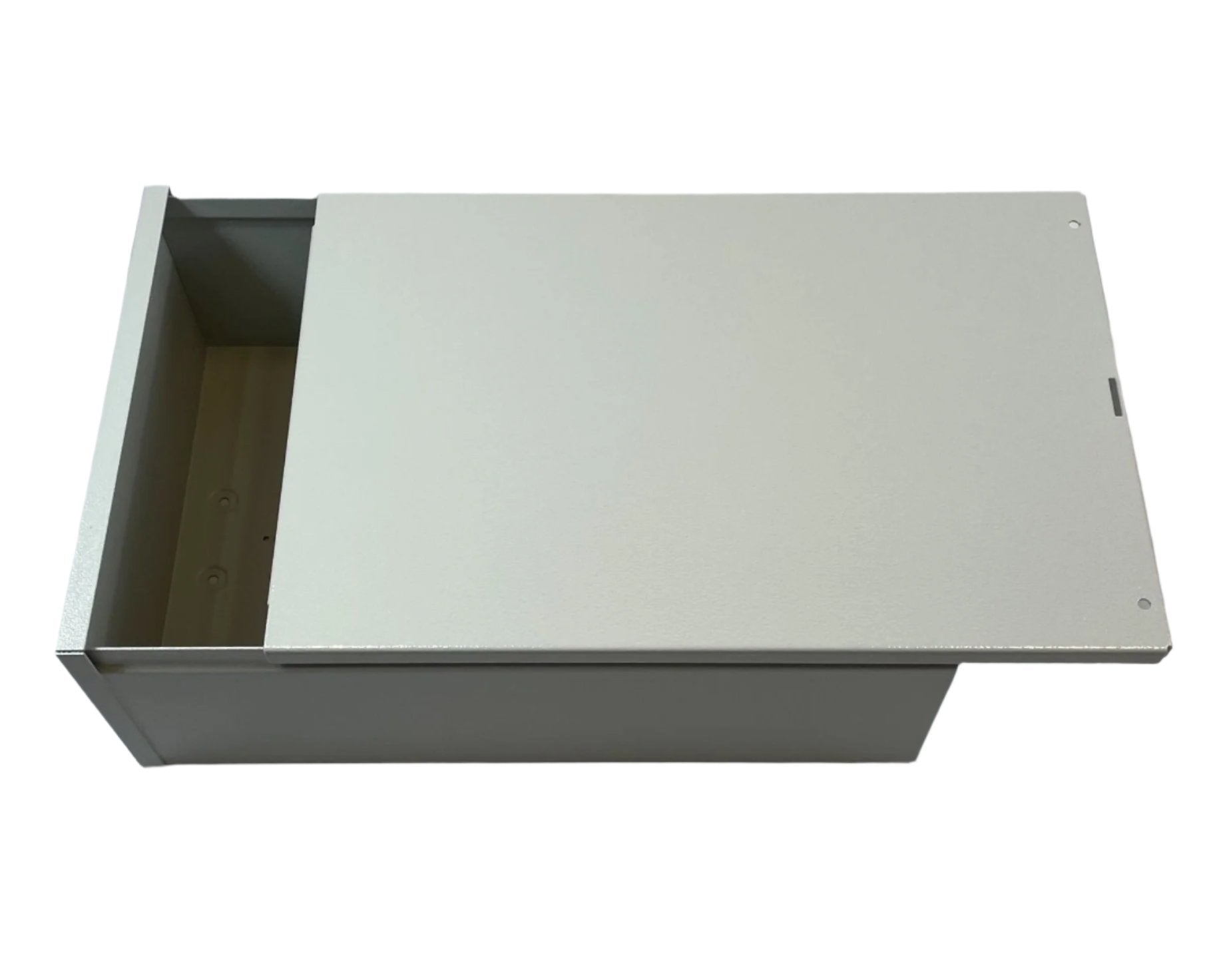

Yes. It has a provision for a padlock to protect the whole unit against tampering. The slip-on cover is secured with two plated steel screws along the bottom edge.
