System Sensor CHRL is an L-Series output chime in red from System Sensor. It produces a distinctive chime tone for UL 464 private-mode applications, where trained personnel are alerted to investigate a possible emergency.

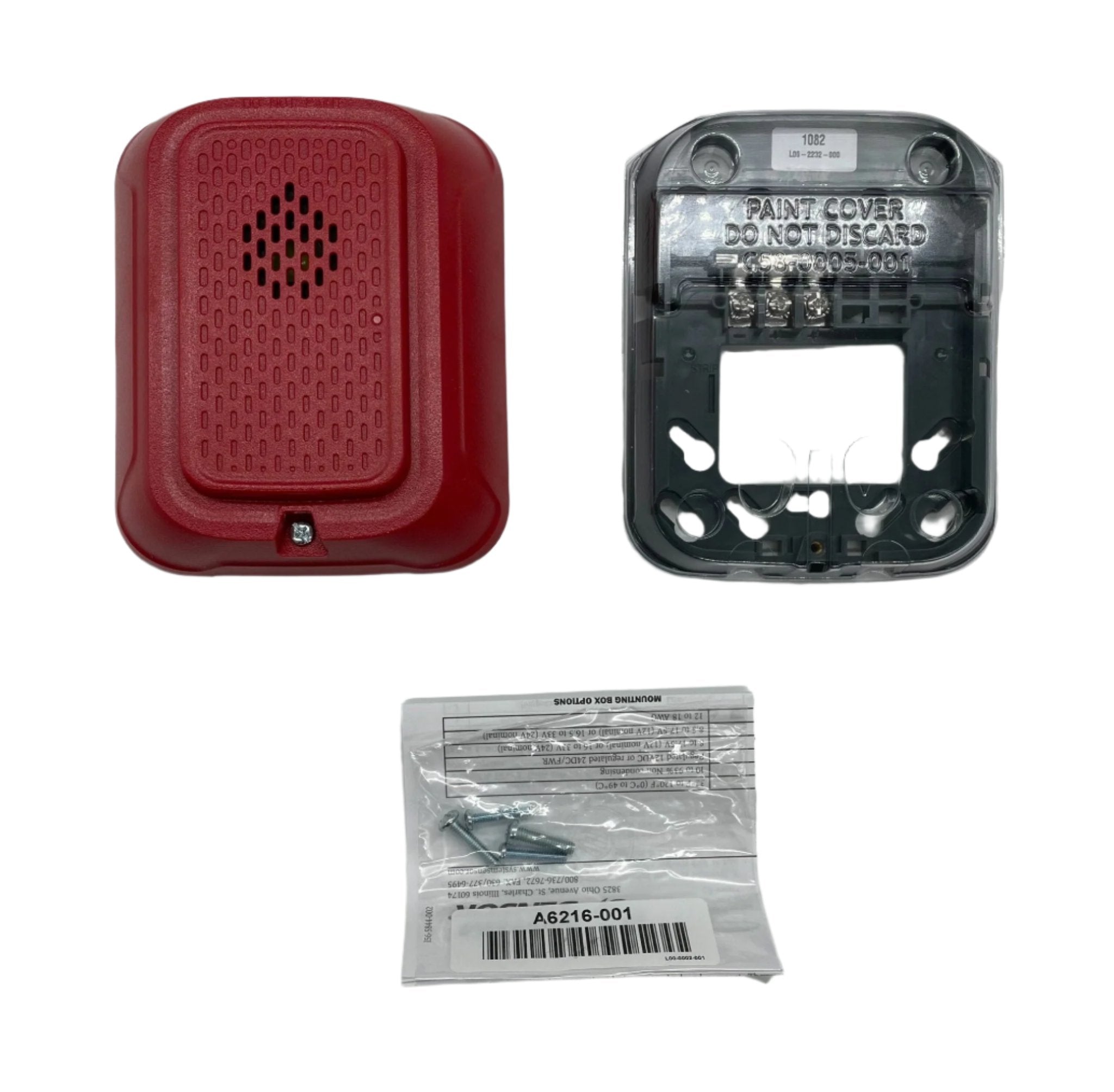

The CHRL chime is compatible with 12- and 24-volt systems and works with the System Sensor synchronization protocol. A mounting plate with a shorting spring checks wiring continuity before the plug-in device is installed.
Features
- Distinctive chime tone for UL 464 private-mode applications

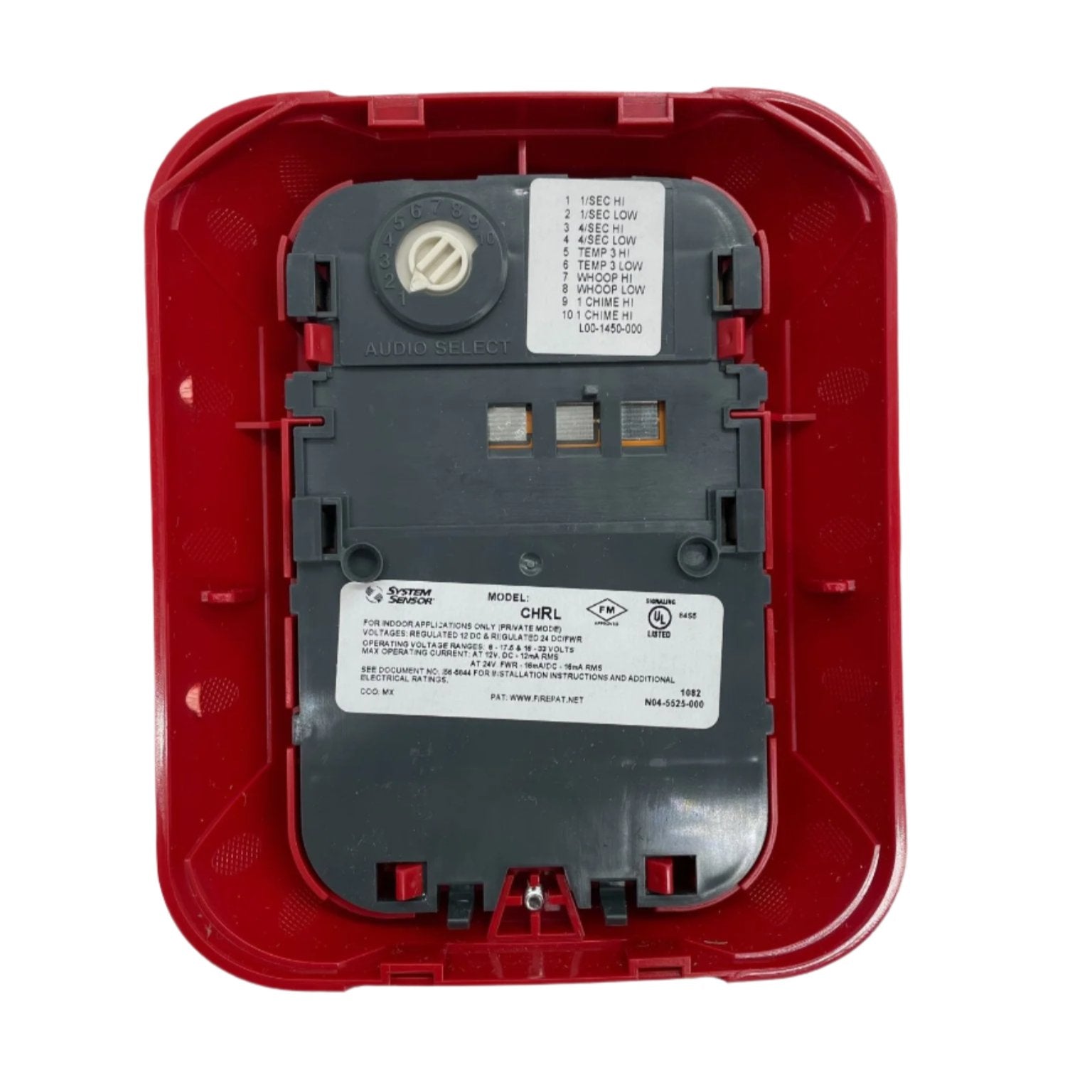

- Rotary switch for tone and volume selection
- Five selectable tones with high and low volume settings
- Plug-in design with minimal intrusion into the back box
- Shorting spring on the mounting plate checks wiring continuity
- Captive mounting screw and tamper-resistant construction
- Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices
Specifications
| Product type |
Chime (audible) |
| Series |
L-Series output device |
| Color |
Red |
| Mounting |
Wall mount |
| Voltage |
12 or 24V systems |
| Tones |
Five selectable, high or low volume |
| Installation |
Indoor |
Compatibility
The CHRL is electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices and uses the System Sensor synchronization protocol. It is an audible-only chime. If you need a chime and a strobe in one device, see the System Sensor CHSRL chime strobe. The white wall-mount chime is the CHWL.
FAQ
What voltage does the CHRL use? It works on 12 and 24 volt systems.
Is it a private-mode device? Yes, the chime tone is intended for UL 464 private-mode applications, where trained personnel investigate a possible emergency.
Does the CHRL include a strobe? No. The product type is an audible chime.
