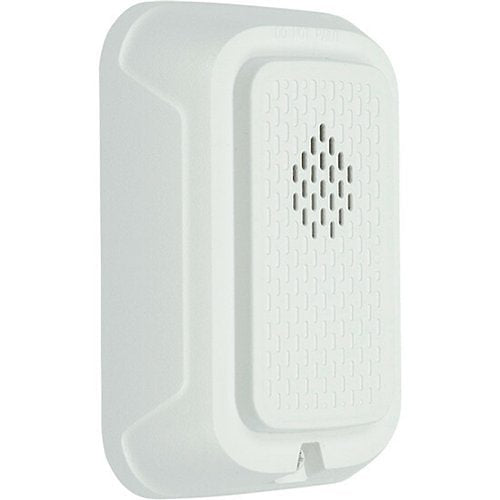

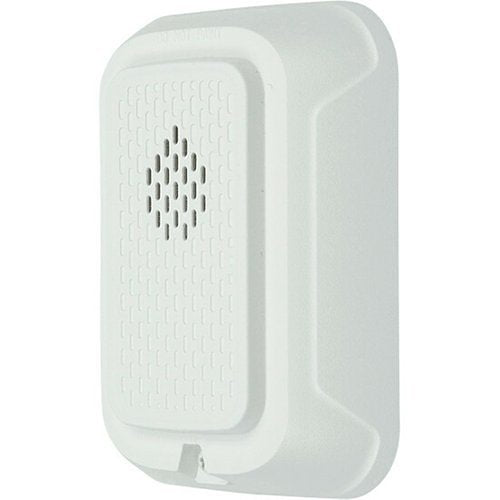

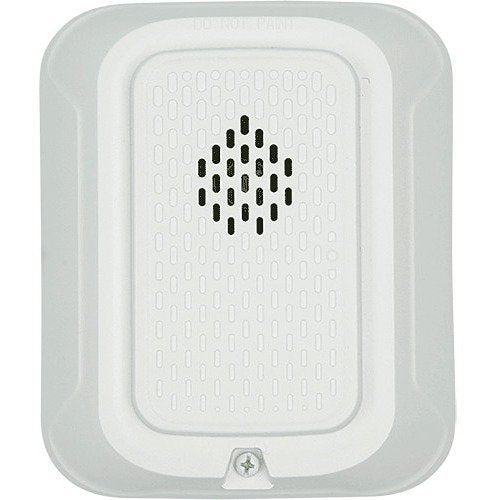

System Sensor CHWL — SpectrAlert Advance chime, wall mount, white. Chime only, no strobe.
The CHWL is an audible-only notification appliance for fire alarm and general signaling where a chime tone is preferred to a horn — typically healthcare, hospitality, education and residential occupancies in which horn output would be disruptive. Because it carries no strobe, it is used where visible notification is provided separately or is not required.

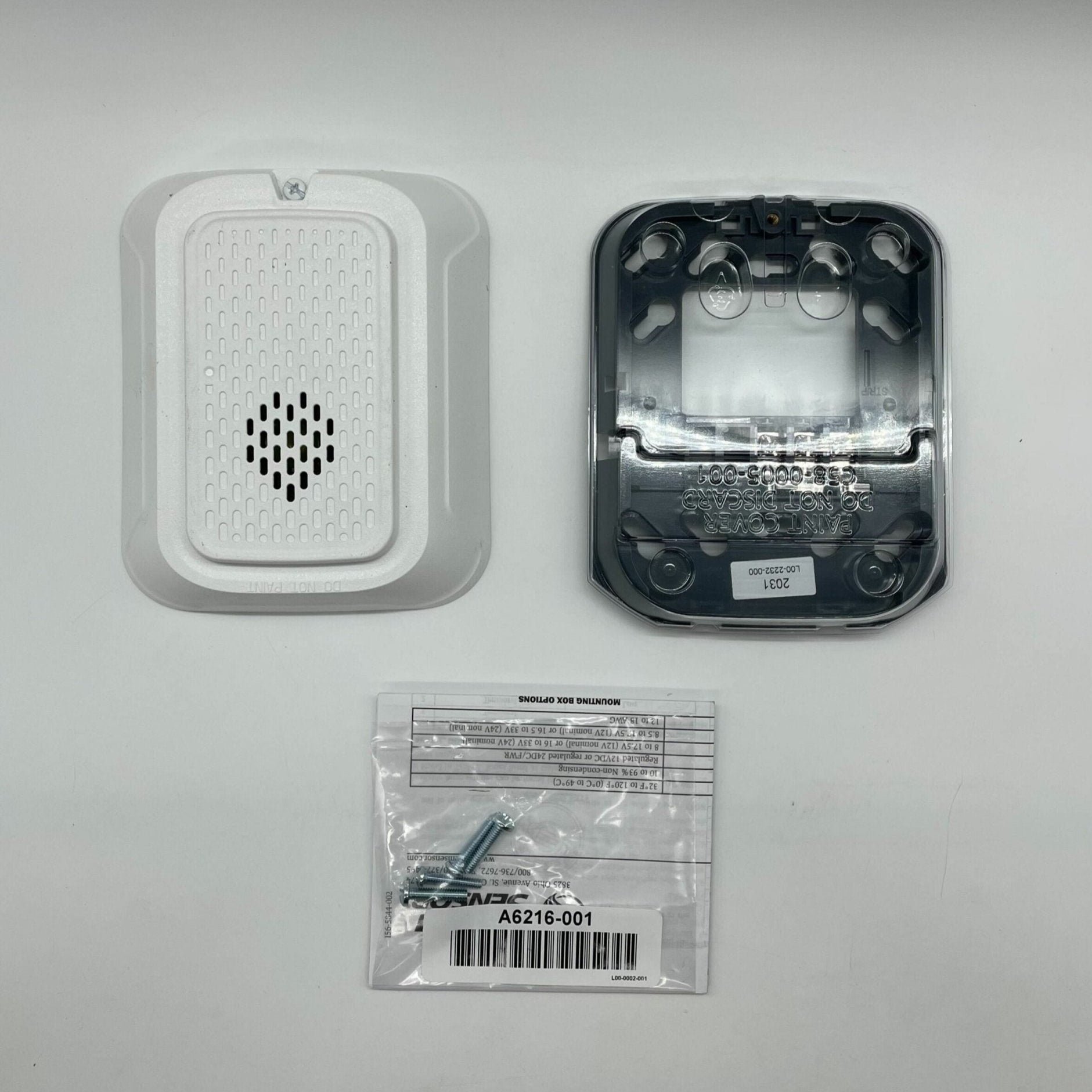

Tone and volume are set with a rotary switch on the device, giving five selectable tones and high or low volume settings, so one part number covers a range of applications instead of holding several. The unit selects 12 or 24 volt operation automatically. A plug-in design keeps intrusion into the back box to a minimum, and the mounting plate includes a shorting spring that verifies wiring continuity before the device itself is installed.
It mounts to a standard 4 x 4 x 1-1/2 inch back box, a 4-inch octagon box, a single-gang box, or a double-gang box, and is electrically compatible with legacy SpectrAlert as well as SpectrAlert Advance devices.
