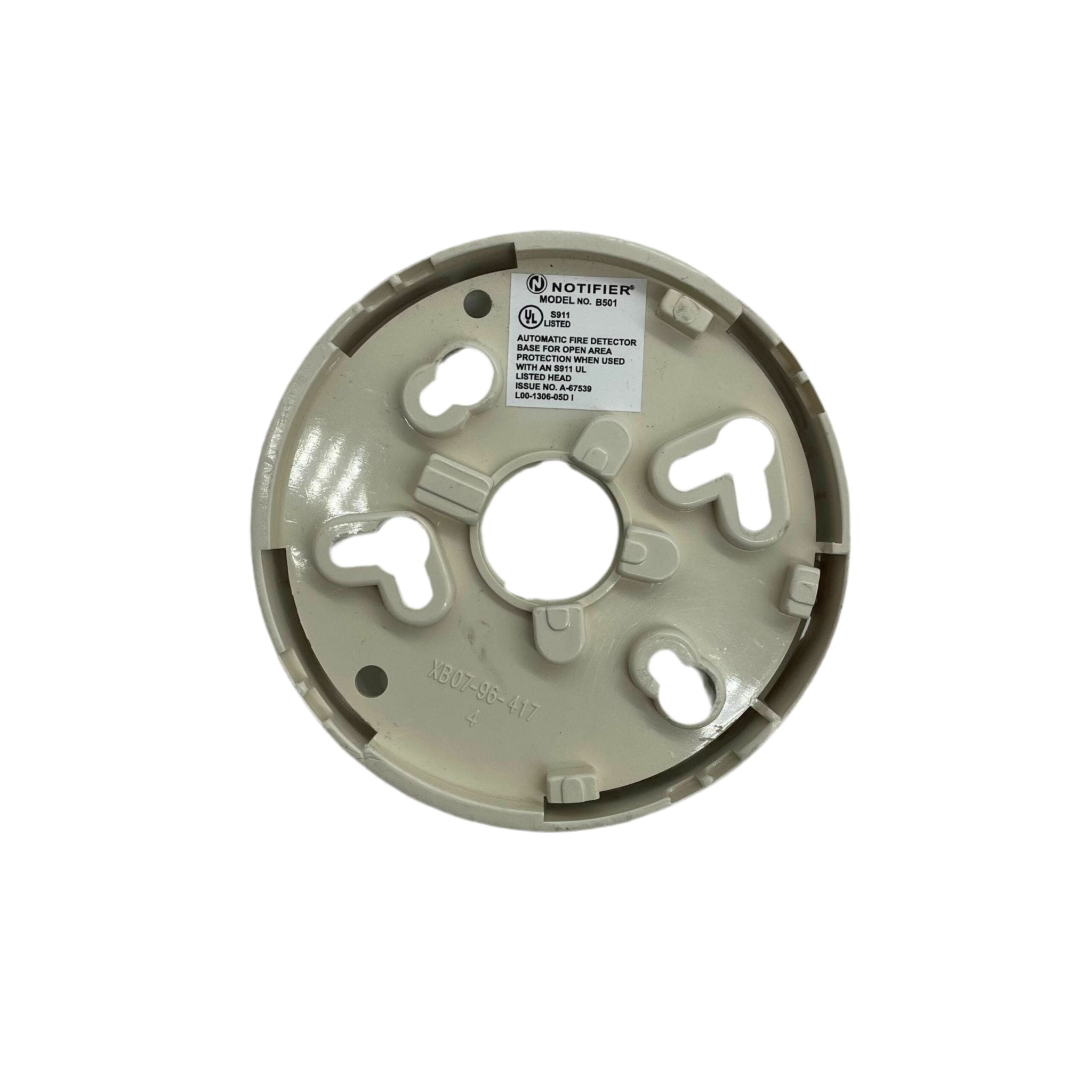

System Sensor B501 — 4 in. plug-in detector base for intelligent (addressable) systems. This model is discontinued; the current ivory version is the B501-IV.

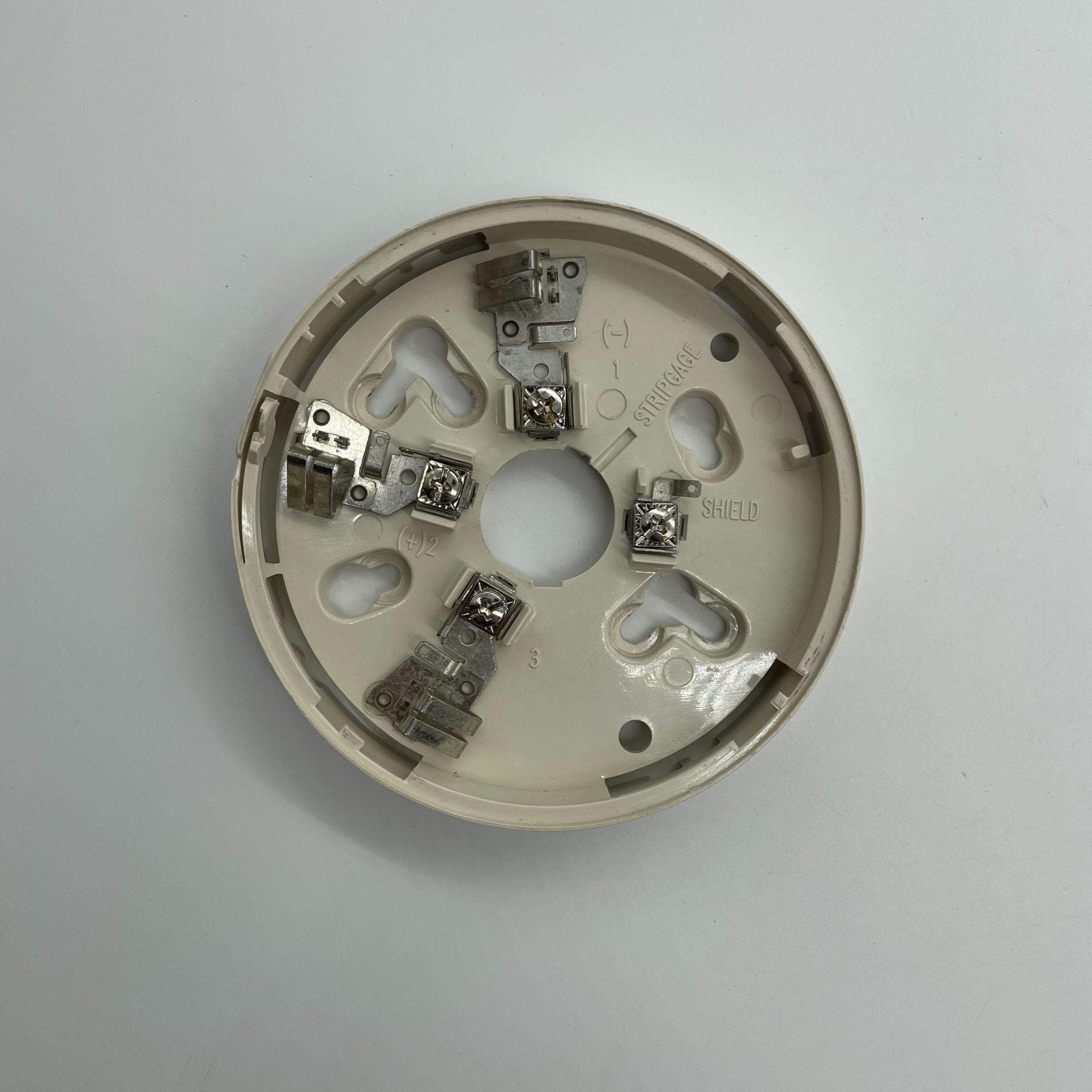

The base carries the field wiring so the detector head can be twisted in or out without disturbing the loop. Screw terminals take the power (+ and –) wires and a remote annunciator, and communication with the detector takes place over the power lines.
Specifications
| Base diameter |
4.0 in. (10.2 cm) |
| Base height |
0.74 in. (18.8 mm) |
| Operating voltage |
15 to 32 VDC (base and detector) |
| Standby current |
150 µA (base and detector) |
| Terminals |
1: power (–) and remote annunciator (–); 2: power (+); 3: remote annunciator (+) |
| Mounting |
4 in. square box with plaster ring, 3-1/2 in. octagon box, 50 mm, 60 mm and 70 mm centers |
| Certifications |
UL 268, ULC S529 |
Installation notes
- Wire and mount all bases and check the loop wiring before installing the detector heads.
- A tamper-resist feature can lock the detector into the base; do not use it if the detector removal tool is to be used.
- Use only compatible detector heads, and test and maintain the detector as required by NFPA 72.
Related models
-
B501-IV — ivory 4 in. plug-in base, the replacement for this model.
-
B501-WHITE — white version.
-
B501-BL — black version.
-
B300-6 — 6 in. flanged mounting base.
Documents
FAQ
What replaces the B501?
The B501-IV ivory 4 in. plug-in detector base replaces this discontinued model.
What box does the B501 mount on?
A 4 in. square box with plaster ring, a 3-1/2 in. octagon box, or 50 mm, 60 mm and 70 mm centers.
Can a remote LED be connected?
Yes. Terminal 3 is remote annunciator (+) and terminal 1 is shared power (–) and remote annunciator (–).
Can the head be locked in?
Yes. The base has a tamper-resist feature, but it should not be used if the detector removal tool will be used.
