System Sensor 5603 is a 135°F fixed temperature, single-circuit mechanical heat detector from the 5600 series. It is a low-cost means of property protection against fire.

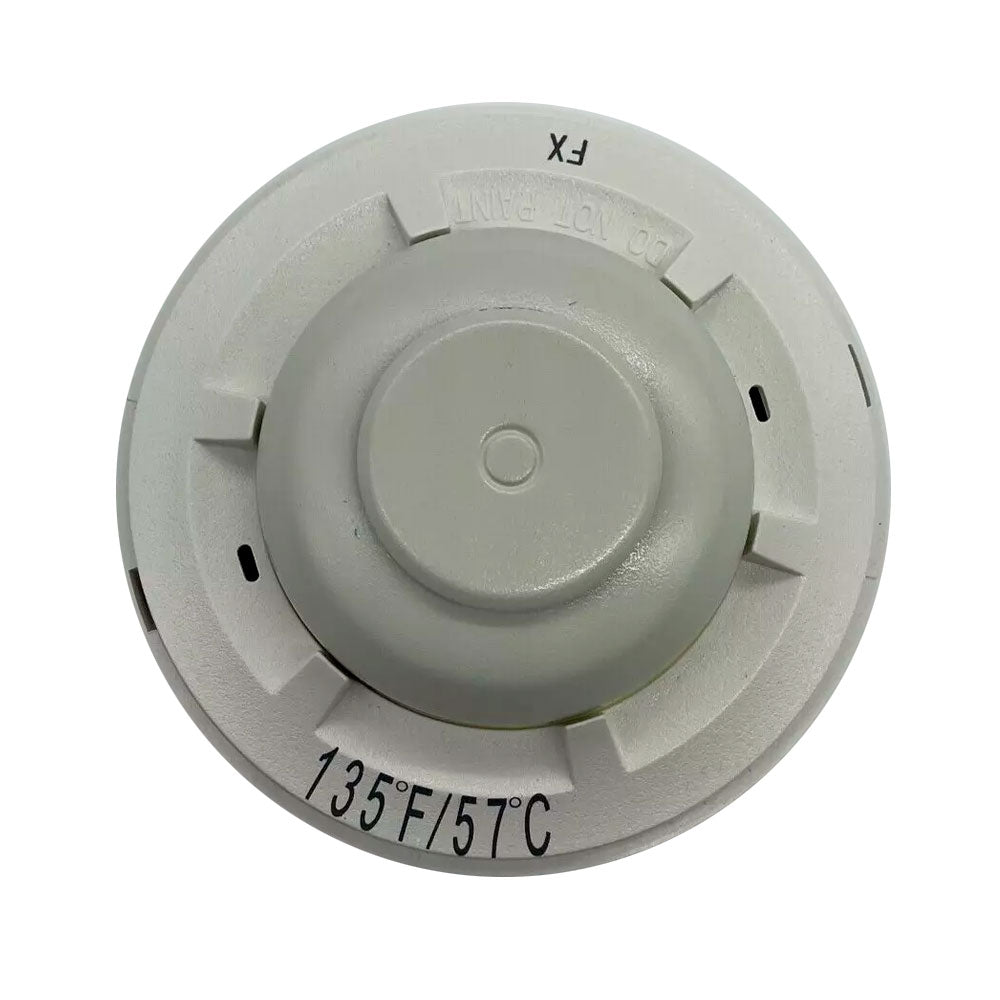

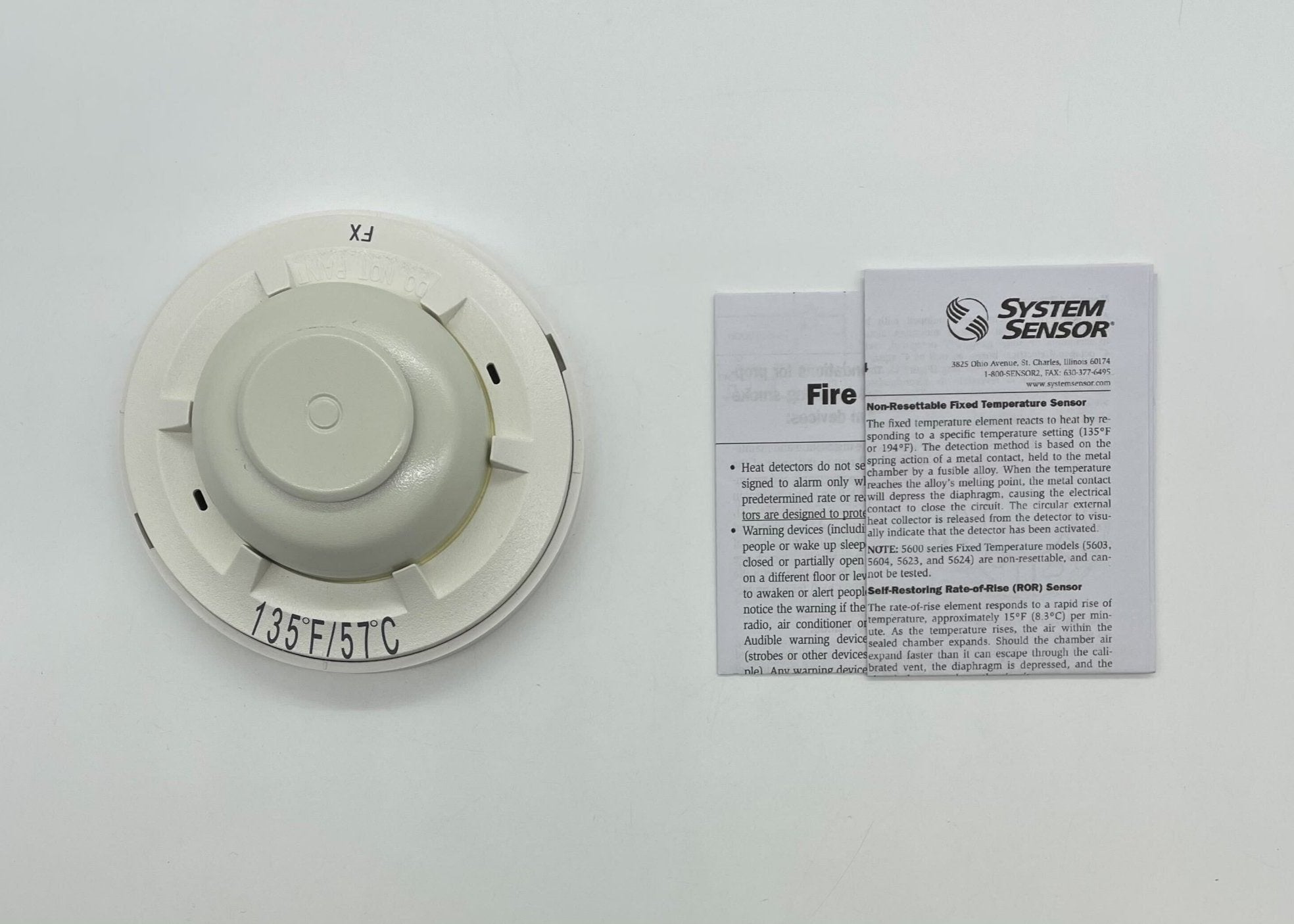

The 5600 series offers single- and dual-circuit models for low and high temperature ratings, with either fixed temperature or combination fixed temperature/rate-of-rise activation. The 5603 is a fixed temperature model, marked FX on the housing; combination units are marked FX/ROR. Clear markings show the activation method and the temperature rating in Fahrenheit and Celsius. When the detector activates, a collector drops from the unit, making the detector in alarm easy to identify.
Specifications
| Model |
5603 |
| Circuit |
Single |
| Activation |
Fixed temperature |
| Temperature rating |
135°F (57°C) |
| Spacing |
25 ft x 25 ft (7.62 m x 7.62 m), for a 10 ft ceiling |
| Contact rating |
6-125 VAC at 3 A; 6-28 VDC at 1 A; 125 VDC at 0.3 A; 250 VDC at 0.1 A |
| Size |
4.57 in diameter, 1.69 in high with mounting bracket |
| Maximum installation temperature |
100°F (38°C) |
| Standard |
UL 521 for heat detectors for fire protective signaling systems |
Installation
- Mounts to 3 1/2 in and 4 in octagonal, and single-gang back boxes.
- A 4 in square back box also works with a square-to-round plaster ring.

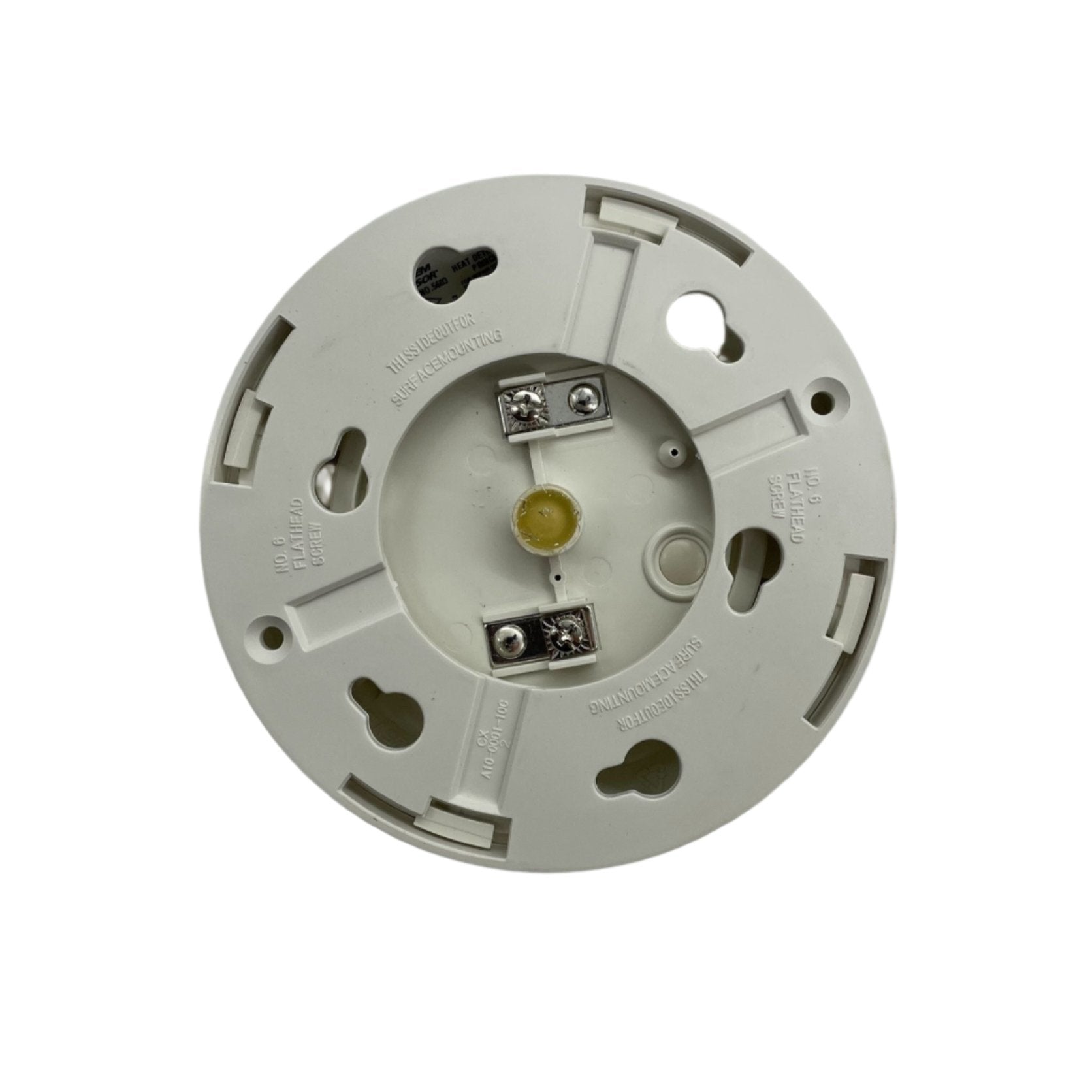

- The reversible mounting bracket allows both flush and surface-mount installations.
Choosing the right 5600 series model
The 5603 is fixed temperature only, so it does not respond to rate of rise. For 50 ft x 50 ft protected spacing on a 10 ft ceiling, System Sensor's combination fixed/rate-of-rise 135°F single-circuit model is the 5601P. The 5604 is the 194°F fixed temperature equivalent of the 5603, and the 5623 is the dual-circuit 135°F fixed temperature model.
Specifications are taken from the System Sensor 5600 Series Mechanical Heat Detectors data sheet. Manufacturer specifications are subject to change without notice.
Documents
FAQ
Can the 5603 be tested or reset?
No. Fixed temperature models (5603, 5604, 5623, 5624) are non-resettable and cannot be tested. The external collector drops off when the unit activates.
Is it suitable for life safety?
No. The 5600 series is intended for property protection or non-life-safety installations; life-safety installations need smoke detectors.
What spacing does it cover?
25 x 25 ft on a 10 ft ceiling. Refer to NFPA 72 for spacing reductions on higher ceilings.
What is the maximum installation temperature?
100°F (38°C) for the 135°F models, including the 5603.
