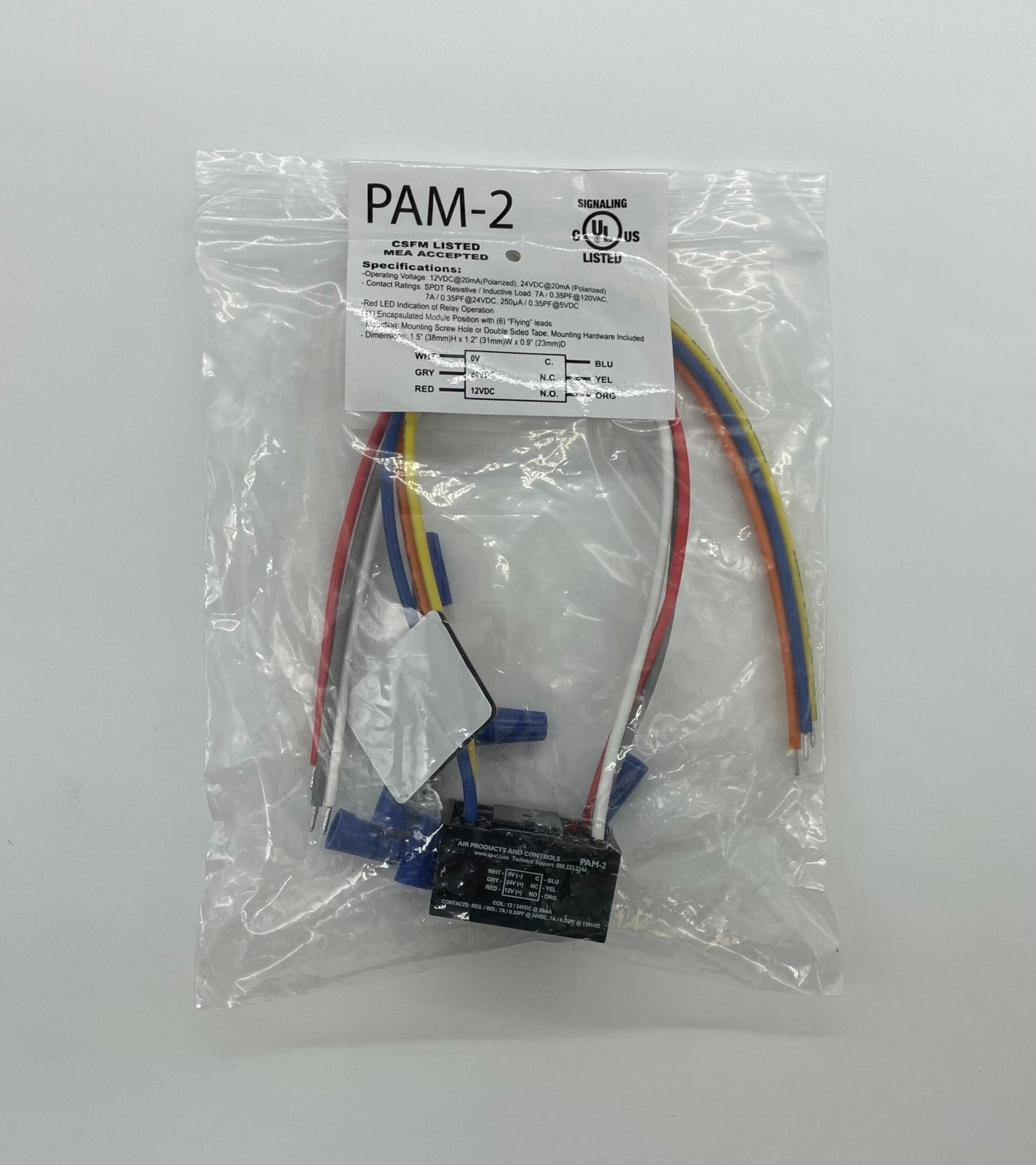

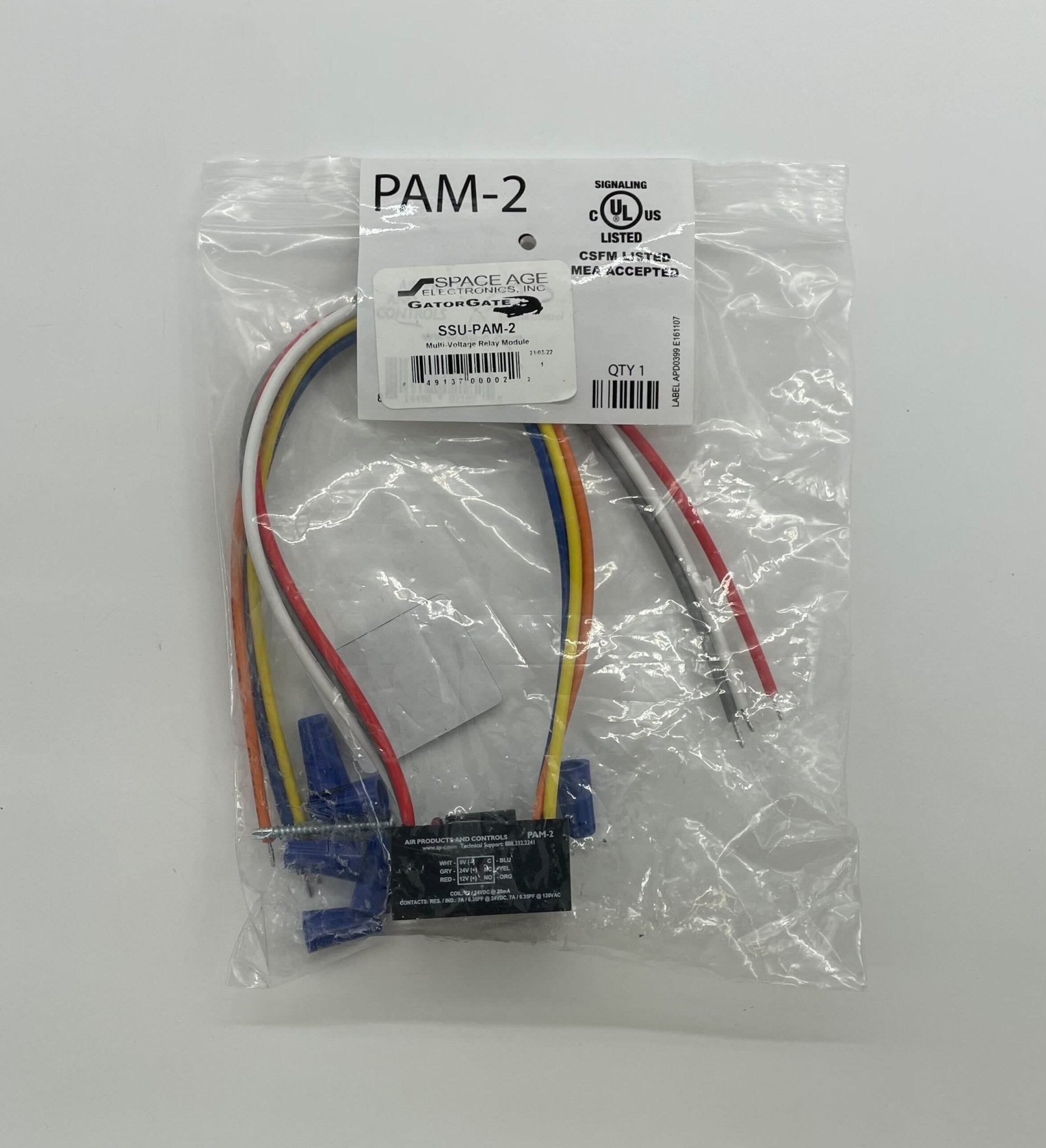

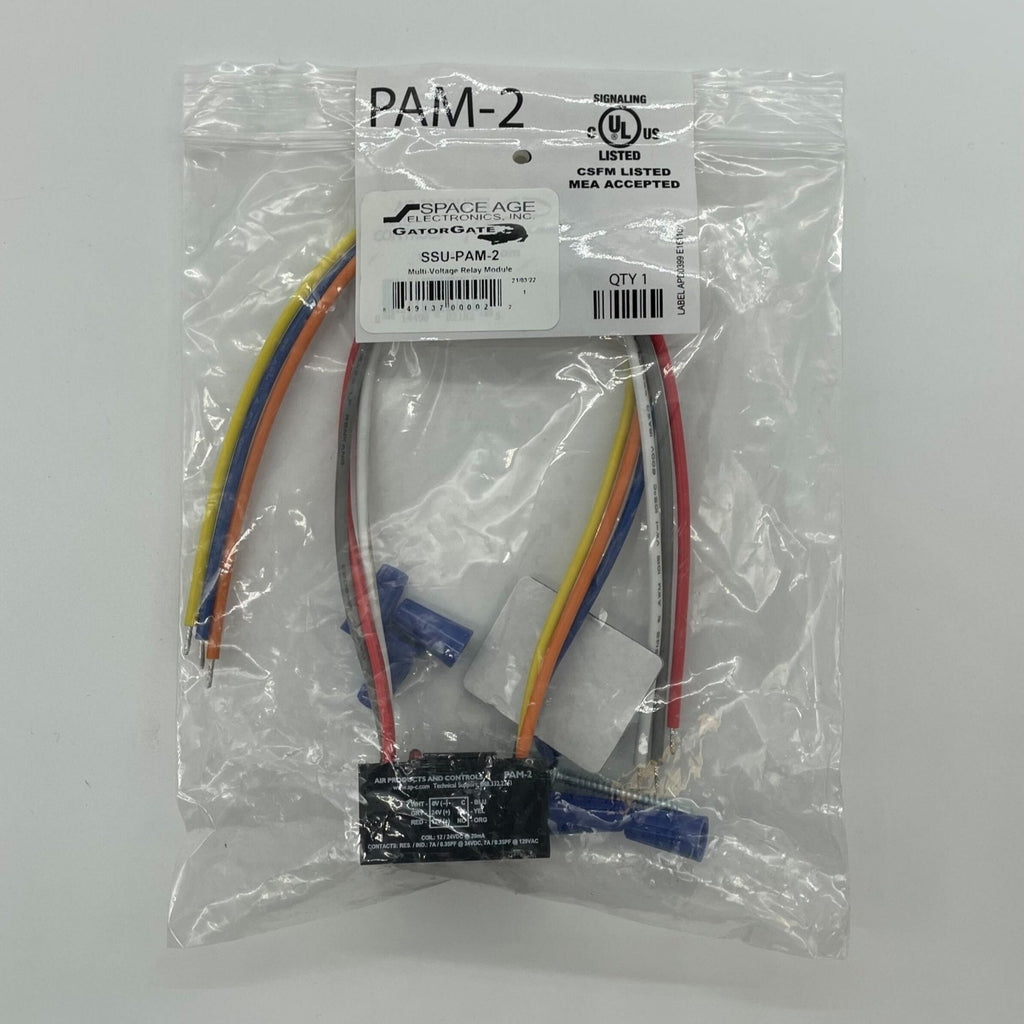

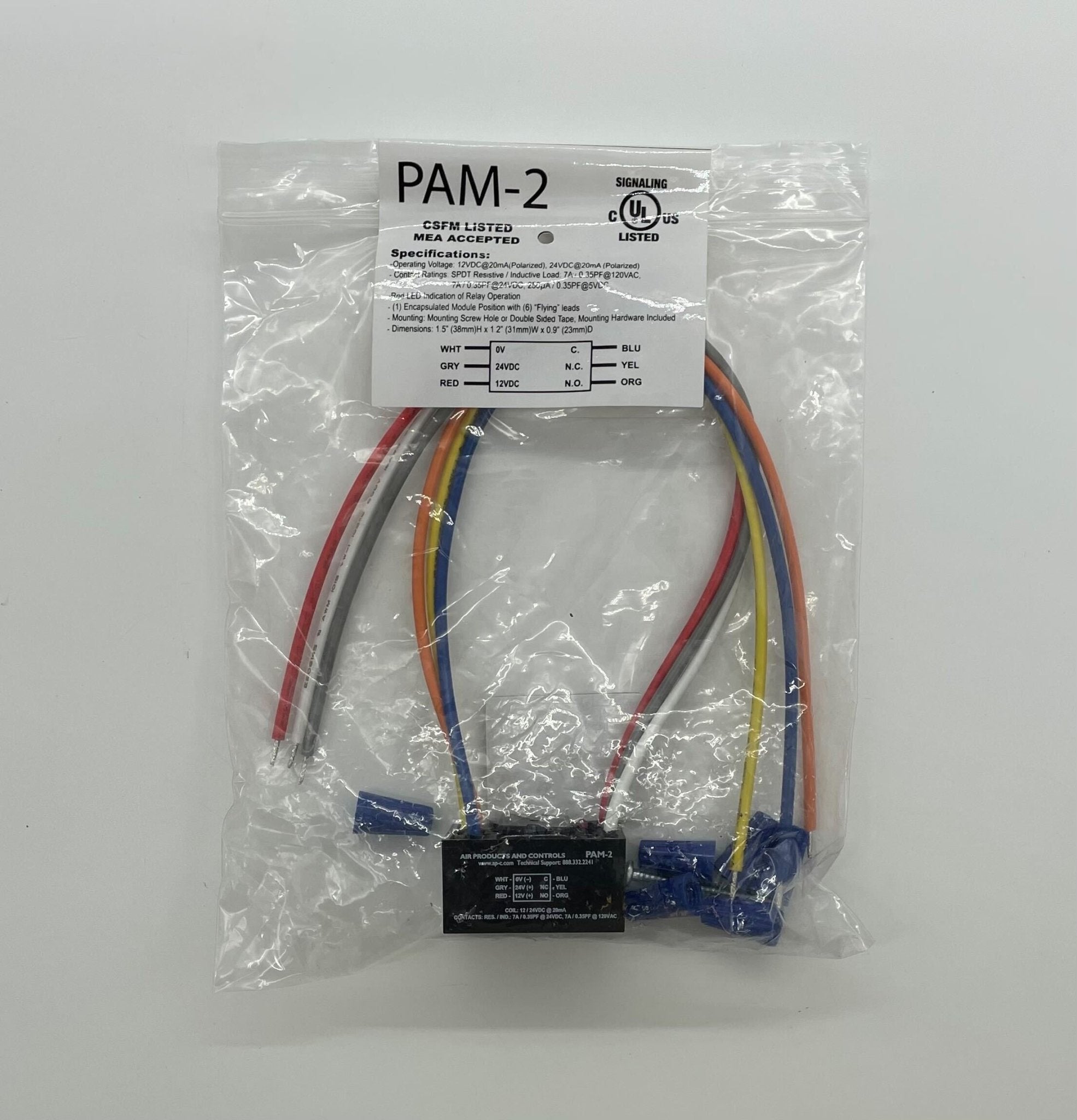

Space Age Electronics SSU-PAM-2 — encapsulated multi-voltage PAM relay, one SPDT dry Form C contact on flying leads.
PAM relays exist for the moment a panel output has to operate something outside the fire alarm: door holders, elevator recall, HVAC or damper shutdown. The SSU-PAM-2 takes 12 or 24 VDC on polarized, diode-protected inputs and lights a red LED when the coil pulls in, so energization can be proved at the device. The potted body suits damp closets better than an open relay.
- Coil 12 VDC or 24 VDC, polarized and diode protected; 15 mA at either voltage
- One SPDT dry Form C contact: 7 A at 24 VDC, 7 A at 120 VAC (0.35 power factor), 250 µA at 5 VDC
- 12 in. flying leads, 18 AWG; wire nuts, screw and tape supplied
- Fully potted; 1.50 × 1.00 × 0.90 in. (38 × 25 × 23 mm)
- 32°F to 120°F (0°C to 49°C); CSFM 7300-1004:101
The 2 in SSU-PAM-2 counts coil voltages, not amperes: contacts are 7 A. For 10 A, order the SSU-PAM-1 or SSU-PAM-4. Coil inputs are polarized and will not pull in reversed.
